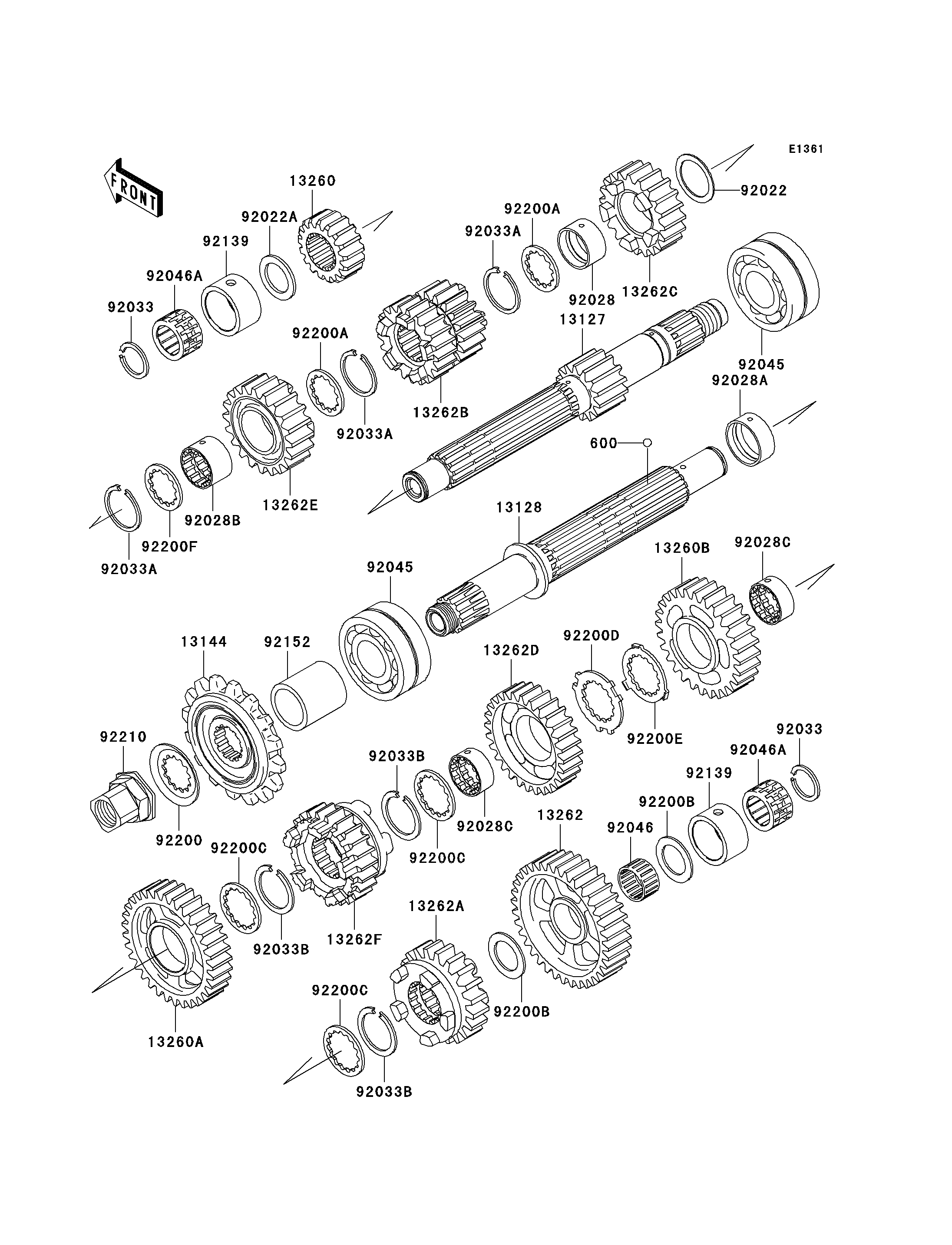

2006 Z1000 - Transmission

DOWNLOAD PDF
SELECT A NEW PART
600
13127
13128
13144
13260
13260A
13260B
13262
13262A
13262B
13262C
13262D
13262E
13262F
92022
92022A
92028
92028A
92028B
92028C
92028C
92033
92033
92033A
92033A
92033A
92033B
92033B
92033B
92045
92045
92046
92046A
92046A
92139
92139
92152
92200
92200A
92200A
92200B
92200B
92200C
92200C
92200C
92200D
92200E
92200F
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BALL-STEEL,5/32" 600 600A0500 3
SHAFT-TRANSMISSION INPUT 13127 13127-0007 1
SHAFT-TRANSMISSION OUTPUT 13128 13128-1260 1
SPROCKET-OUTPUT,16T 13144 13144-1320 1
GEAR,INPUT 2ND,17T 13260 13260-1681 1
GEAR,OUTPUT 2ND,33T 13260A 13260-1686 1
GEAR,OUTPUT 3RD,28T 13260B 13260-1880 1
GEAR,OUTPUT LOW,36T 13262 13262-0029 1
GEAR,OUTPUT 5TH,24T 13262A 13262-0030 1
GEAR,INPUT 3RD&4TH,18T&21T 13262B 13262-0031 1
GEAR,INPUT 5TH,20T 13262C 13262-0062 1
GEAR,OUTPUT 4TH,28T 13262D 13262-0077 1
GEAR,INPUT TOP,21T 13262E 13262-0228 1
GEAR,OUTPUT TOP,23T 13262F 13262-0229 1
WASHER,25.3X33X1 92022 92022-1109 1
WASHER,20.5X30X1,STEEL 92022A 92022-112 1
BUSHING,INPUT 5TH GEAR 92028 92028-1735 1
BUSHING,OUTPUT,2ND 92028A 92028-1739 1
BUSHING,INPUT TOP GEAR 92028B 92028-1915 1
BUSHING,OUTPUT,3RD&4TH 92028C 92028-1968 2
RING-SNAP,20MM 92033 92033-015 2
RING-SNAP,24MM 92033A 92033-026 3
RING-SNAP,T=1.5 92033B 92033-1249 3
BEARING-BALL,DAC2557NSSH 92045 92045-0003 2
BEARING-NEEDLE,K20X24X13 92046 92046-1219 1
BEARING-NEEDLE,PK20X27X17X3 92046A 92046-1303 2
BUSHING,27X34X18.6 92139 92139-1090 2
COLLAR,SPROCKET 92152 92152-1466 1
WASHER 92200 92200-1065 1
WASHER,25.2X31.0X1.5 92200A 92200-1239 2
WASHER,20.5X31X1.5 92200B 92200-1375 2
WASHER,T=2.0 92200C 92200-1457 3
WASHER,OUTPUT 4TH 92200D 92200-1522 1
WASHER,OUTPUT 3RD 92200E 92200-1523 1
WASHER,INPUT 92200F 92200-1524 1
NUT,SPROCKET 92210 92210-1098 1
