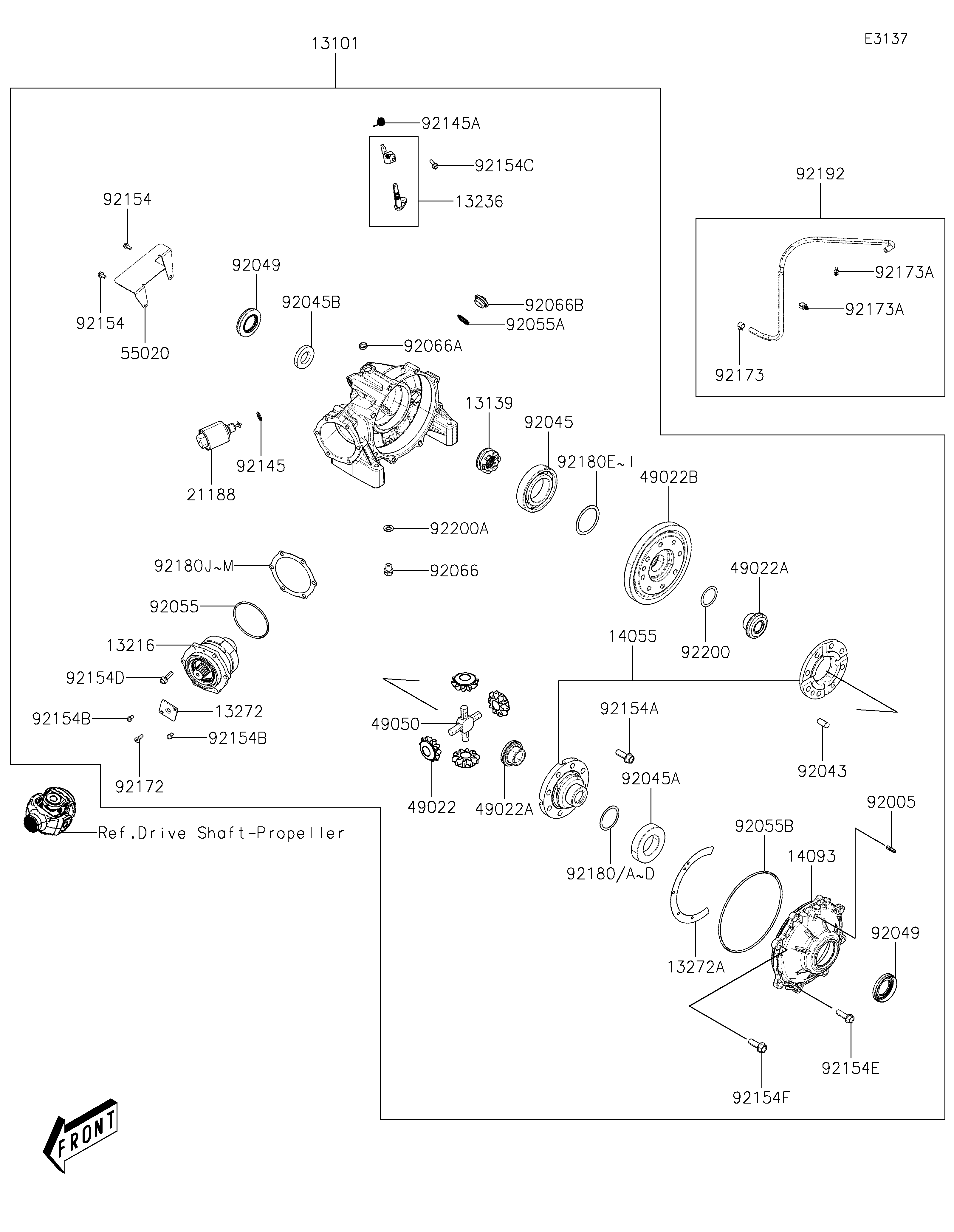

2021 MULE PRO-MX™ EPS - Drive Shaft-Rear
13101
13101
13139
13139
13216
13216
13236
13236
13272
13272
13272A
13272A
14055
14055
14093
14093
21188
21188
49022
49022
49022A
49022A
49022A
49022A
49022B
49022B
49050
49050
55020
55020
92005
92005
92043
92043
92045
92045
92045A
92045A
92045B
92045B
92049
92049
92049
92049
92055
92055
92055A
92055A
92055B
92055B
92066
92066
92066A
92066A
92066B
92066B
92145
92145
92145A
92145A
92154
92154
92154
92154
92154A
92154A
92154B
92154B
92154B
92154B
92154C
92154C
92154D
92154D
92154E
92154E
92154F
92154F
92172
92172
92173
92173
92173A
92173A
92173A
92173A
92180
92180
92180A
92180A
92180B
92180B
92180C
92180C
92180D
92180D
92180E
92180E
92180F
92180F
92180G
92180G
92180H
92180H
92180I
92180I
92180J
92180J
92180K
92180K
92180L
92180L
92180M
92180M
92192
92192
92200
92200
92200A
92200A
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GEAR-ASSY,RR | 13101 | 13101-Y003 | 1 | ||
SHIFTER | 13139 | 13139-Y005 | 1 | ||
GEAR-COMP | 13216 | 13216-Y008 | 1 | ||
LEVER-COMP | 13236 | 13236-Y001 | 1 | ||
PLATE | 13272 | 13272-Y037 | 1 | ||
PLATE | 13272A | 13272-Y038 | 1 | ||
CASE-GEAR,SET | 14055 | 14055-Y006 | 1 | ||
COVER | 14093 | 14093-Y049 | 1 | ||
SOLENOID | 21188 | 21188-Y001 | 1 | ||
GEAR-BEVEL,10T | 49022 | 49022-0572 | 4 | ||
GEAR-BEVEL,16T | 49022A | 49022-0622 | 2 | ||
GEAR-BEVEL,35T | 49022B | 49022-0628 | 1 | ||
SPIDER | 49050 | 49050-Y002 | 1 | ||
GUARD,DIFF | 55020 | 55020-Y009 | 1 | ||
FITTING | 92005 | 92005-Y001 | 1 | ||
PIN | 92043 | 92043-Y048 | 1 | ||
BEARING-BALL,6212 | 92045 | 92045-0766 | 1 | ||
BEARING-BALL,6210CM | 92045A | 92045-1213 | 1 | ||
BEARING-BALL,16007 | 92045B | 92045-1230 | 1 | ||
SEAL-OIL,40X68X13.5 | 92049 | 92049-0806 | 2 | ||
RING-O | 92055 | 92055-Y067 | 1 | ||
RING-O | 92055A | 92055-Y068 | 1 | ||
RING-O | 92055B | 92055-Y069 | 1 | ||
PLUG,DRAIN | 92066 | 92066-Y003 | 1 | ||
PLUG | 92066A | 92066-Y020 | 1 | ||
PLUG | 92066B | 92066-Y021 | 1 | ||
SPRING | 92145 | 92145-Y069 | 1 | ||
SPRING | 92145A | 92145-Y070 | 1 | ||
BOLT,FLANGE,6X14 | 92154 | 92154-Y153 | 2 | ||
BOLT | 92154A | 92154-Y214 | 8 | ||
BOLT | 92154B | 92154-Y215 | 2 | ||
BOLT,FLANGE | 92154C | 92154-Y216 | 1 | ||
BOLT,FLANGE,8X30 | 92154D | 92154-Y218 | 6 | ||
BOLT,FLANGE,10X35 | 92154E | 92154-Y220 | 6 | ||
BOLT,FLANGE,12X35 | 92154F | 92154-Y221 | 2 | ||
SCREW | 92172 | 92172-Y087 | 1 | ||
CLAMP,10.5 | 92173 | 92173-Y023 | 1 | ||
CLAMP | 92173A | 92173-Y078 | 2 | ||
SHIM,T=1.2 | 92180 | 92180-Y044 | 1 | ||
SHIM,T=1.5 | 92180A | 92180-Y045 | 1 | ||
SHIM,T=1.6 | 92180B | 92180-Y046 | 1 | ||
SHIM,T=1.3 | 92180C | 92180-Y047 | 1 | ||
SHIM,T=1.4 | 92180D | 92180-Y048 | 1 | ||
SHIM,T=1.0 | 92180E | 92180-Y050 | 1 | ||
SHIM,T=1.1 | 92180F | 92180-Y051 | 1 | ||
SHIM,T=1.2 | 92180G | 92180-Y052 | 1 | ||
SHIM,T=1.3 | 92180H | 92180-Y053 | 1 | ||
SHIM,T=1.4 | 92180I | 92180-Y054 | 1 | ||
SHIM,T=1.0 | 92180J | 92180-Y056 | 1 | ||
SHIM,T=0.1 | 92180K | 92180-Y057 | 1 | ||
SHIM,T=0.2 | 92180L | 92180-Y058 | 1 | ||
SHIM,T=0.3 | 92180M | 92180-Y059 | 1 | ||
TUBE,GEAR CASE | 92192 | 92192-Y072 | 1 | ||
WASHER | 92200 | 92200-Y098 | 1 | ||
WASHER | 92200A | 92200-Y099 | 1 |
