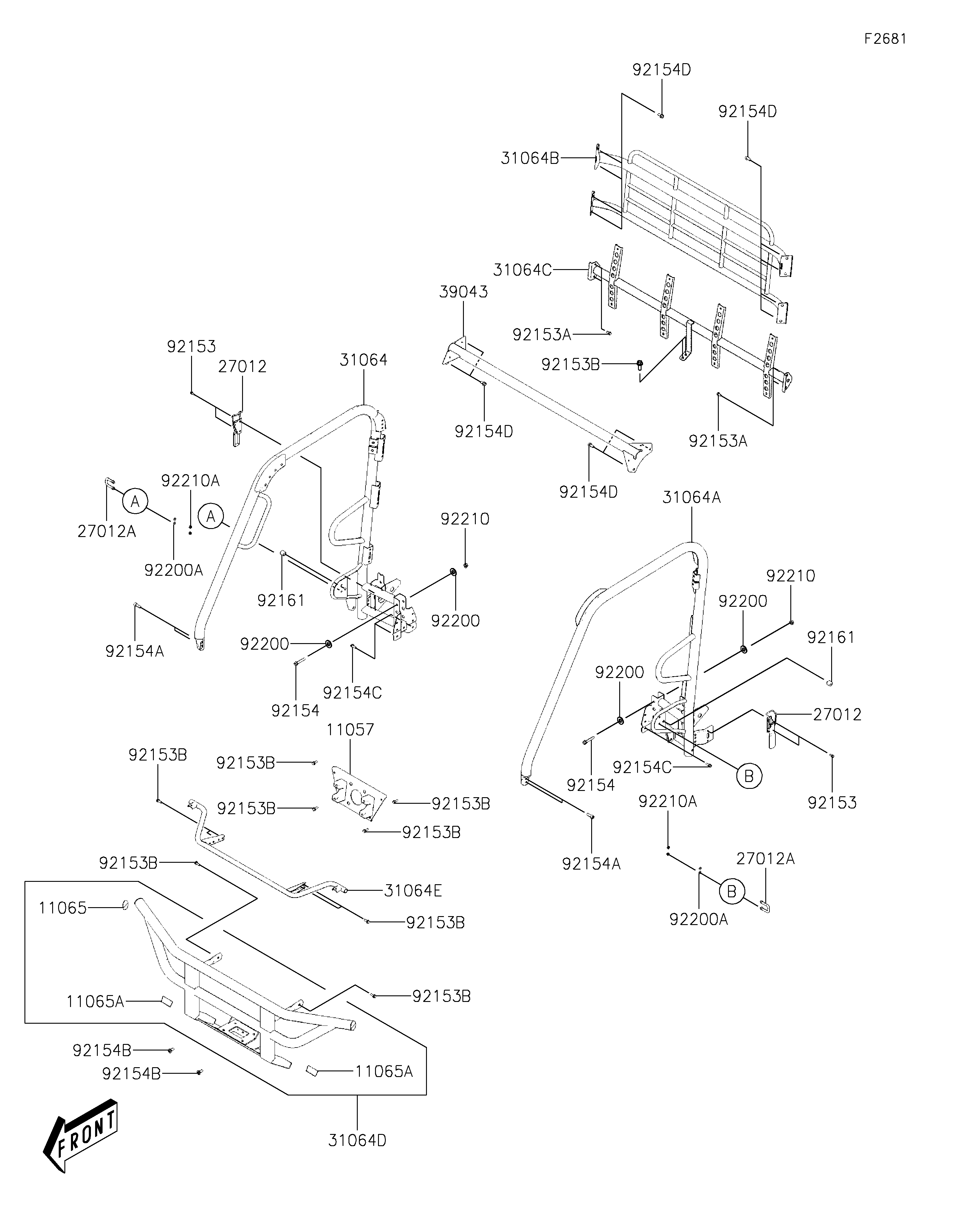

2021 MULE PRO-MX™ EPS - Guards/Cab Frame

DOWNLOAD PDF
SELECT A NEW PART
11057
11065
11065A
11065A
27012
27012
27012A
27012A
31064
31064A
31064B
31064C
31064D
31064E
39043
92153
92153
92153A
92153A
92153B
92153B
92153B
92153B
92153B
92153B
92153B
92153B
92153B
92154
92154
92154A
92154A
92154B
92154B
92154C
92154C
92154D
92154D
92154D
92154D
92161
92161
92200
92200
92200
92200
92200A
92200A
92210
92210
92210A
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,STABILIZER 11057 11057-Y015 1
CAP,FR BUMPER,END 11065 11065-Y043 2
CAP,FR BUMPER 11065A 11065-Y044 2
HOOK,SIDE 27012 27012-Y005 2
HOOK,DOOR 27012A 27012-Y007 2
PIPE-COMP,ROOF,RH 31064 31064-Y013 1
PIPE-COMP,ROOF,LH 31064A 31064-Y014 1
PIPE-COMP,REAR,UPP 31064B 31064-Y015 1
PIPE-COMP,REAR,LWR 31064C 31064-Y016 1
PIPE-COMP,FR BUMPER 31064D 31064-Y017 1
PIPE-COMP,FR COVER 31064E 31064-Y018 1
CROSSMEMBER-COMP,ROOF 39043 39043-Y002 1
BOLT,FLANGE,6X16 92153 92153-Y025 4
BOLT,FLANGE,8X16 92153A 92153-Y032 4
BOLT,FLANGE,8X20 92153B 92153-Y033 12
BOLT,FLANGE,10X60 92154 92154-Y091 2
BOLT,SOCKET,10X28 92154A 92154-Y098 4
BOLT,10X23 92154B 92154-Y178 2
BOLT,FLANGE,8X25 92154C 92154-Y195 4
BOLT,FLANGE,10X20 92154D 92154-Y197 12
DAMPER,ROPS 92161 92161-Y050 2
WASHER,10MM 92200 92200-Y020 4
WASHER,6MM 92200A 92200-Y106 4
NUT,10MM 92210 92210-Y009 2
NUT,6MM 92210A 92210-Y087 4
