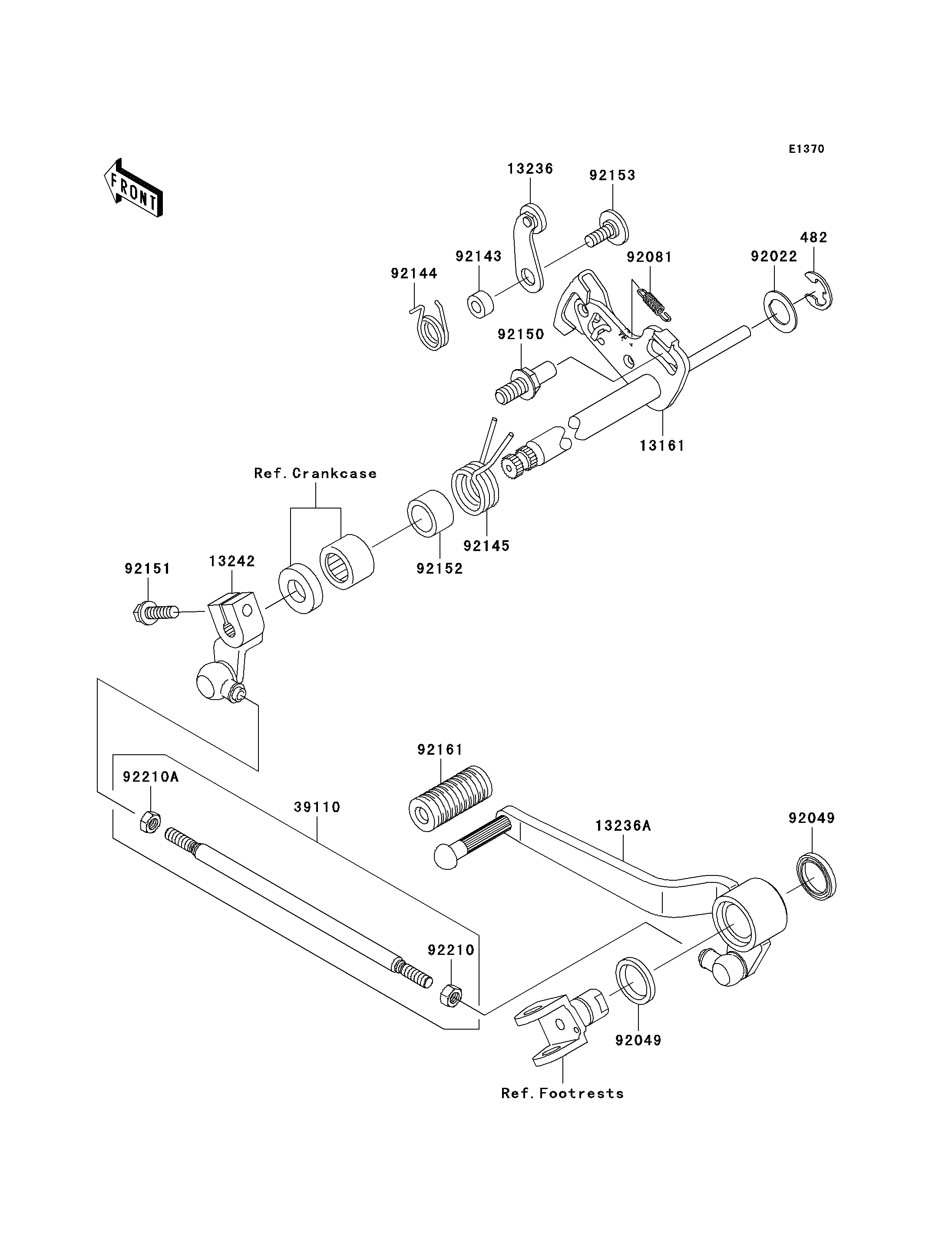

2006 Z1000 - Gear Change Mechanism

DOWNLOAD PDF
SELECT A NEW PART
482
13161
13236
13236A
13242
39110
92022
92049
92049
92081
92143
92144
92145
92150
92151
92152
92153
92161
92210
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CIRCLIP-TYPE-E,12MM 482 482J0200 1
LEVER-COMP-CHANGE SHAFT 13161 13161-1292 1
LEVER-COMP 13236 13236-1243 1
LEVER-COMP,PEDAL 13236A 13236-1365 1
LEVER-ASSY-CHANGE 13242 13242-1395 1
ROD-ASSY-TIE 39110 39110-1131 1
WASHER,CHANGE SHAFT 92022 92022-1628 1
SEAL-OIL 92049 92049-1492 2
SPRING,PAWL RETURN 92081 92081-1708 1
COLLAR 92143 92143-1595 1
SPRING,GEAR POSITION 92144 92144-1857 1
SPRING 92145 92145-1122 1
BOLT,RETURN SPRING 92150 92150-1869 1
BOLT,FLANGED,6X20 92151 92151-1226 1
COLLAR,14.2X19.9X12.0 92152 92152-1383 1
BOLT,6X20 92153 92153-0896 1
DAMPER,CHANGE LEVER 92161 92161-1300 1
NUT,6MM 92210 92210-1100 1
NUT,LEFT HANDED,6MM 92210A 92210-1101 1
