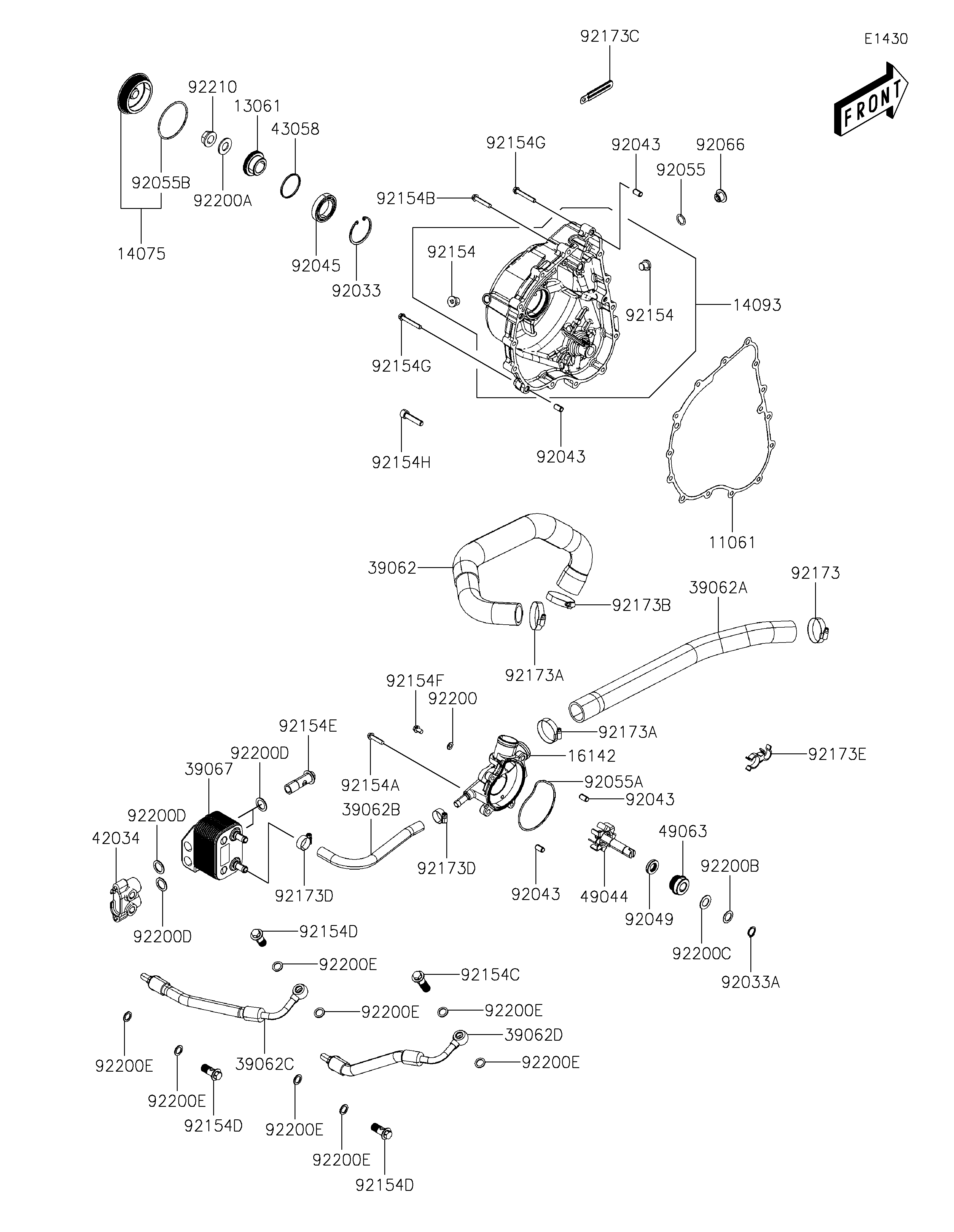

2021 MULE PRO-MX™ EPS LE - Engine Cover(s)
11061
11061
13061
13061
14075
14075
14093
14093
16142
16142
39062
39062
39062A
39062A
39062B
39062B
39062C
39062C
39062D
39062D
39067
39067
42034
42034
43058
43058
49044
49044
49063
49063
92033
92033
92033A
92033A
92043
92043
92043
92043
92043
92043
92043
92043
92045
92045
92049
92049
92055
92055
92055A
92055A
92055B
92055B
92066
92066
92154
92154
92154
92154
92154A
92154A
92154B
92154B
92154C
92154C
92154D
92154D
92154D
92154D
92154D
92154D
92154E
92154E
92154F
92154F
92154G
92154G
92154G
92154G
92154H
92154H
92173
92173
92173A
92173A
92173A
92173A
92173B
92173B
92173C
92173C
92173D
92173D
92173D
92173D
92173E
92173E
92200
92200
92200A
92200A
92200B
92200B
92200C
92200C
92200D
92200D
92200D
92200D
92200D
92200D
92200E
92200E
92200E
92200E
92200E
92200E
92200E
92200E
92200E
92200E
92200E
92200E
92200E
92200E
92200E
92200E
92210
92210
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GASKET,CRANK CASE COVER,RH | 11061 | 11061-Y055 | 1 | ||
BOSS,RACHET | 13061 | 13061-Y005 | 1 | ||
CAP-ASSY | 14075 | 14075-Y006 | 1 | ||
COVER,CRANK CASE,RH | 14093 | 14093-Y002 | 1 | ||
COVER-PUMP,WATER | 16142 | 16142-Y002 | 1 | ||
HOSE-COOLING | 39062 | 39062-Y015 | 1 | ||
HOSE-COOLING | 39062A | 39062-Y018 | 1 | ||
HOSE-COOLING | 39062B | 39062-Y021 | 1 | ||
HOSE-COOLING | 39062C | 39062-Y022 | 1 | ||
HOSE-COOLING | 39062D | 39062-Y023 | 1 | ||
COOLER-OIL | 39067 | 39067-Y001 | 1 | ||
COUPLING,OIL COOLER | 42034 | 42034-Y002 | 1 | ||
RING,OIL PATH | 43058 | 43058-Y001 | 1 | ||
PUMP-WATER | 49044 | 49044-Y002 | 1 | ||
SEAL-MECHANICAL | 49063 | 49063-Y003 | 1 | ||
RING-SNAP | 92033 | 92033-Y027 | 1 | ||
RING-SNAP | 92033A | 92033-Y028 | 1 | ||
PIN,8X14 | 92043 | 92043-Y012 | 4 | ||
BEARING-BALL,6906 | 92045 | 92045-Y044 | 1 | ||
SEAL-OIL,14X24X5 | 92049 | 92049-0824 | 1 | ||
RING-O,13.8X2.5 | 92055 | 92055-Y023 | 1 | ||
RING-O,WATER PUMP | 92055A | 92055-Y058 | 1 | ||
RING-O,17.8X2.4 | 92055B | 92055-Y064 | 1 | ||
PLUG,COVER | 92066 | 92066-Y009 | 1 | ||
BOLT,SEALING,12MM | 92154 | 92154-Y009 | 2 | ||
BOLT,FLANGE,6X25 | 92154A | 92154-Y066 | 4 | ||
BOLT,FLANGE,6X32 | 92154B | 92154-Y128 | 12 | ||
BOLT | 92154C | 92154-Y172 | 1 | ||
BOLT | 92154D | 92154-Y173 | 3 | ||
BOLT | 92154E | 92154-Y175 | 2 | ||
BOLT,FLANGE,6X10 | 92154F | 92154-Y208 | 1 | ||
BOLT,FLANGE,6X40 | 92154G | 92154-Y209 | 2 | ||
BOLT,SOCKET,8X35 | 92154H | 92154-Y211 | 1 | ||
CLAMP,28.6MM | 92173 | 92173-1205 | 1 | ||
CLAMP | 92173A | 92173-1892 | 2 | ||
CLAMP | 92173B | 92173-1894 | 1 | ||
CLAMP | 92173C | 92173-Y002 | 6 | ||
CLAMP | 92173D | 92173-Y068 | 2 | ||
CLAMP | 92173E | 92173-Y076 | 1 | ||
WASHER,6MM | 92200 | 92200-Y024 | 1 | ||
WASHER,14X28X2 | 92200A | 92200-Y026 | 1 | ||
WASHER,21X13.8X1.5 | 92200B | 92200-Y050 | 1 | ||
WASHER,14MM | 92200C | 92200-Y051 | 1 | ||
WASHER | 92200D | 92200-Y074 | 4 | ||
WASHER | 92200E | 92200-Y076 | 8 | ||
NUT,FLANGE,14MM | 92210 | 92210-Y038 | 1 |
