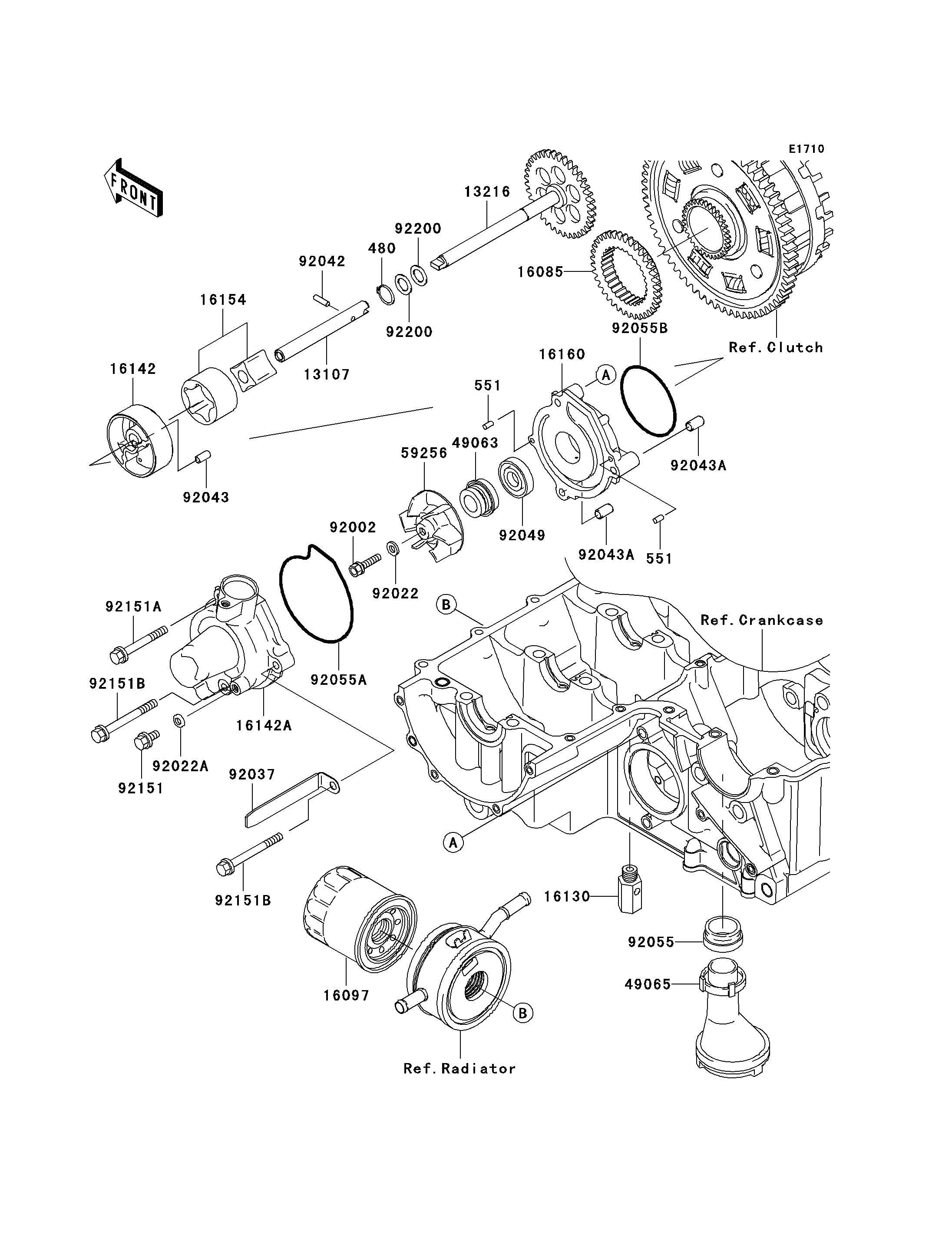

2006 Z1000 - Oil Pump/Oil Filter

DOWNLOAD PDF
SELECT A NEW PART
480
551
551
13107
13216
16085
16097
16130
16142
16142A
16154
16160
49063
49065
59256
92002
92022
92022A
92037
92042
92043
92043A
92043A
92049
92055
92055A
92055B
92151
92151A
92151B
92151B
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CIRCLIP-TYPE-C,11MM 480 480J1100 1
PIN-DOWEL,4X8 551 551A0408 2
SHAFT,OIL PUMP 13107 13107-0046 1
GEAR-COMP,OIL PUMP,37T 13216 13216-1168 1
GEAR,OIL PUMP,37T 16085 16085-1305 1
FILTER-ASSY-OIL 16097 16097-0002 1
VALVE-ASSY-RELIEF 16130 16130-1058 1
COVER-PUMP,OIL 16142 16142-1146 1
COVER-PUMP,WATER 16142A 16142-1174 1
ROTOR-PUMP 16154 16154-1124 1
BODY,OIL PUMP 16160 16160-1280 1
SEAL-MECHANICAL,WATER 49063 49063-1055 1
FILTER-OIL 49065 49065-1078 1
IMPELLER 59256 59256-1074 1
BOLT,6X22 92002 92002-1154 1
WASHER,6.1X12X1 92022 92022-077 1
WASHER,6.2X11X1 92022A 92022-304 1
CLAMP 92037 92037-1679 1
PIN,DOWEL,4X15.8 92042 92042-014 1
PIN,4.2X6X12 92043 92043-1262 1
PIN,6.2X8X14 92043A 92043-1263 2
SEAL-OIL,SC 11 28.55 5 92049 92049-1336 1
RING-O,OIL FILTER 92055 92055-1503 1
RING-O,WATER PUMP COVER 92055A 92055-1571 1
RING-O,59.6X2.4 92055B 92055-3018 1
BOLT,6X12 92151 92151-1133 1
BOLT,6X50 92151A 92151-1234 1
BOLT,6X60 92151B 92151-1235 2
WASHER 92200 92200-1009 2
