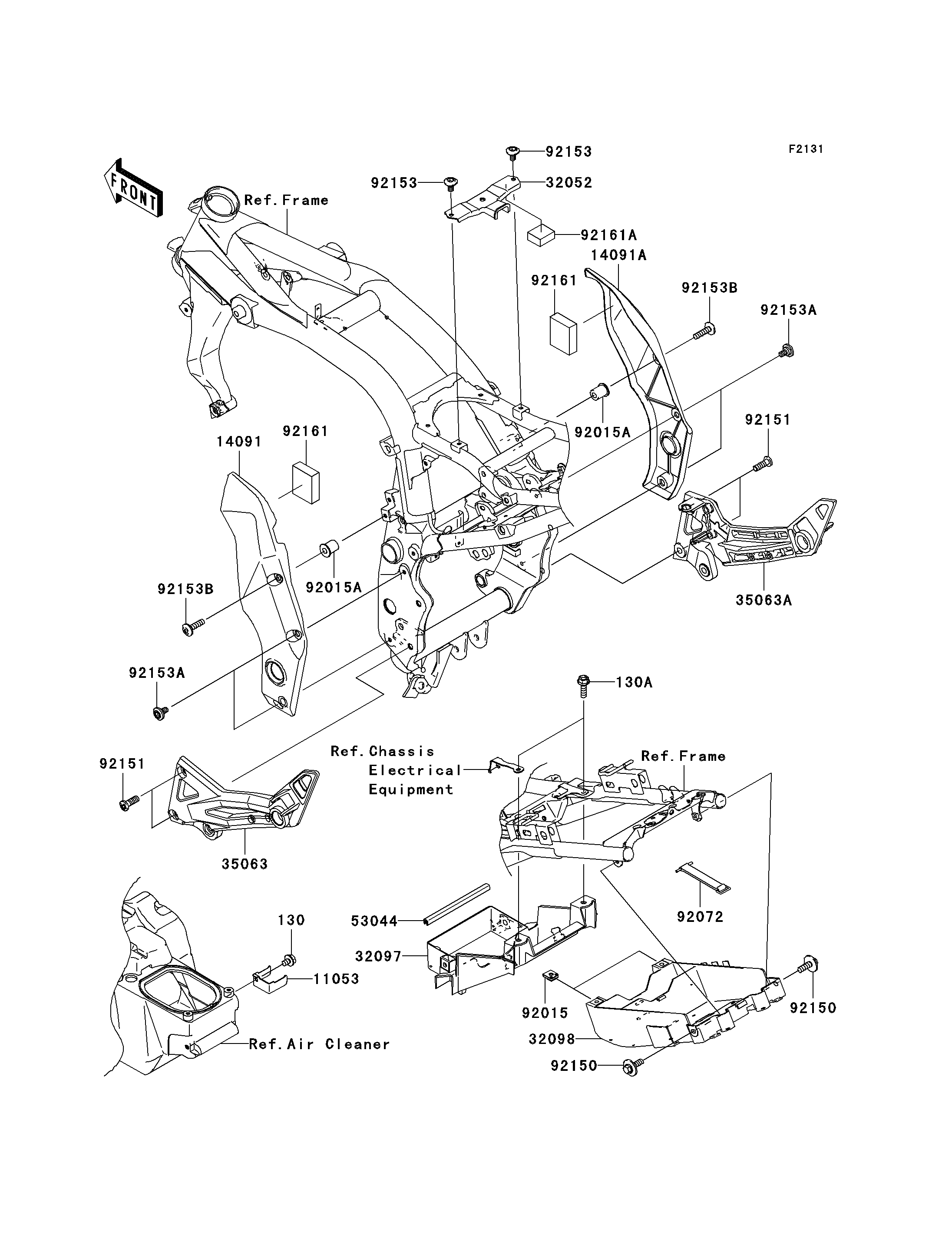

2006 Z1000 - Frame Fittings

DOWNLOAD PDF
SELECT A NEW PART
130
130A
11053
14091
14091A
32052
32097
32098
35063
35063A
53044
92015
92015A
92015A
92072
92150
92150
92151
92151
92153
92153
92153A
92153A
92153B
92153B
92161
92161
92161A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X8 130 130J0608 1
BOLT-FLANGED,6X20 130A 130J0620 2
BRACKET,MAGNETIC SWITCH 11053 11053-0138 1
COVER,PIVOT,LH,P.SILVER 14091 14091-1547-458 1
COVER,PIVOT,RH,P.SILVER 14091A 14091-1548-458 1
BRACKET-TANK,FUEL 32052 32052-1597 1
CASE-BATTERY 32097 32097-0010 1
CASE-TOOL 32098 32098-0006 1
STAY,STEP HOLDER,LH,P.SILVER 35063 35063-1262-458 1
STAY,STEP HOLDER,RH,P.SILVER 35063A 35063-1263-458 1
TRIM,L=150 53044 53044-1303 1
NUT,CLAMP,6MM 92015 92015-1678 2
NUT 92015A 92015-1700 2
BAND,TOOL 92072 92072-1349 1
BOLT,6X14 92150 92150-1133 2
BOLT,SOCKET,10X30 92151 92151-1372 4
BOLT,SOCKET,6X10 92153 92153-0410 2
BOLT,SOCKET,6X14 92153A 92153-0422 4
BOLT,SOCKET,6X23 92153B 92153-1267 2
DAMPER 92161 92161-0055 2
DAMPER 92161A 92161-0063 1
