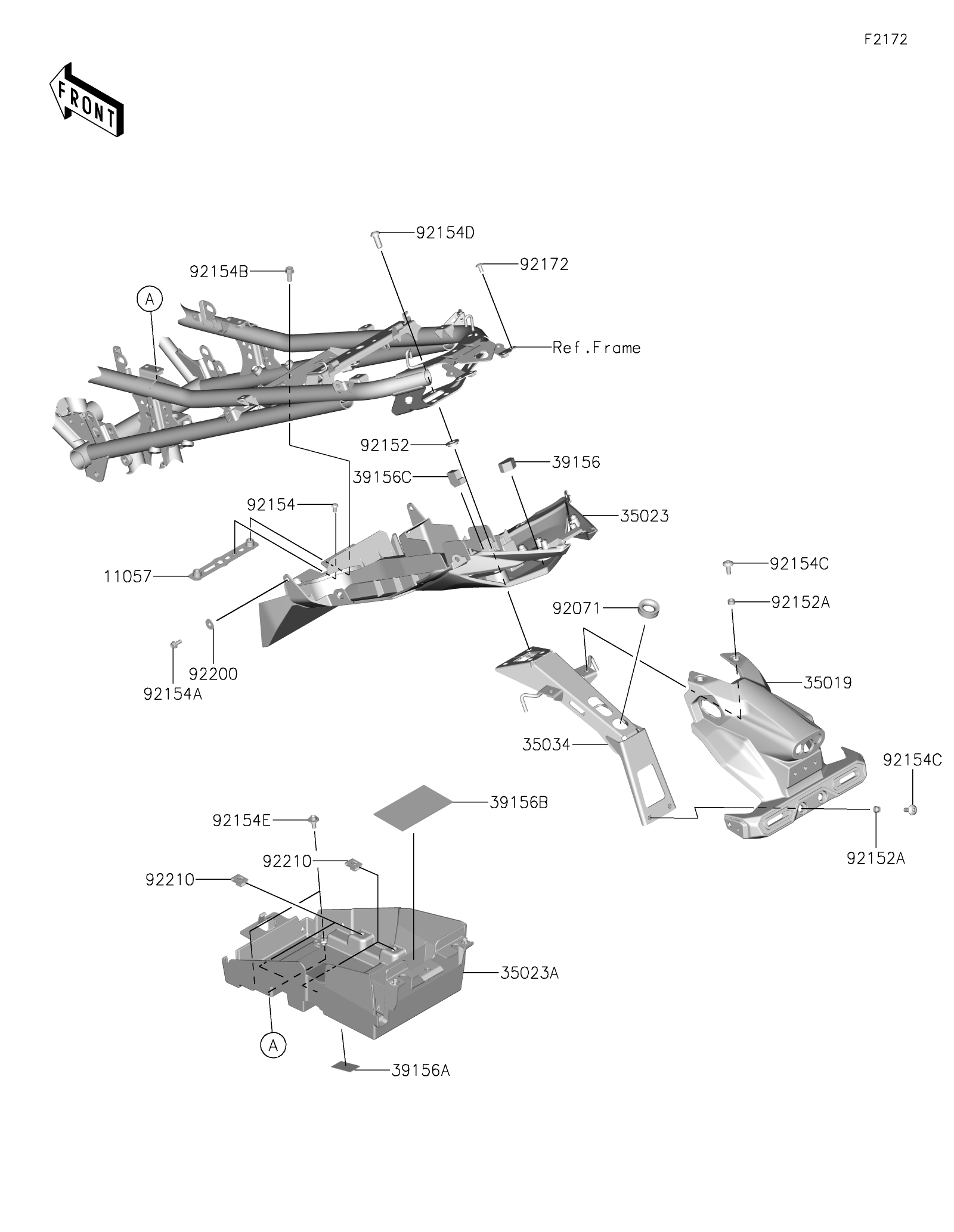

2024 Z e-1 ABS - Rear Fender(s)

DOWNLOAD PDF
SELECT A NEW PART
11057
35019
35023
35023A
35034
39156
39156A
39156B
39156C
92071
92152
92152A
92152A
92154
92154A
92154B
92154C
92154C
92154D
92154E
92172
92200
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET 11057 11057-1191 1
FLAP 35019 35019-0639 1
FENDER-REAR 35023 35023-0436 1
FENDER-REAR 35023A 35023-0513 1
REINFORCE 35034 35034-0617 1
PAD,16X24X13 39156 39156-2379 1
PAD,40X20X1 39156A 39156-2887 1
PAD,101X58X2 39156B 39156-2890 1
PAD 39156C 39156-2913 1
GROMMET 92071 92071-0709 1
COLLAR,10X20X4.5 92152 92152-2392 4
COLLAR,6.8X10X5.4 92152A 92152-2393 4
BOLT,SOCKET,5X10 92154 92154-1547 1
BOLT,FLANGED,5X12 92154A 92154-2893 2
BOLT,FLANGED,6X16 92154B 92154-2895 2
BOLT,SOCKET,6X16 92154C 92154-4421 4
BOLT,SOCKET,8X20 92154D 92154-7023 4
BOLT 92154E 92154-7139 2
SCREW,TAPPING,5X10 92172 92172-0262 2
WASHER,5.2X16X1.2 92200 92200-0583 2
NUT,6MM 92210 92210-0474 4
