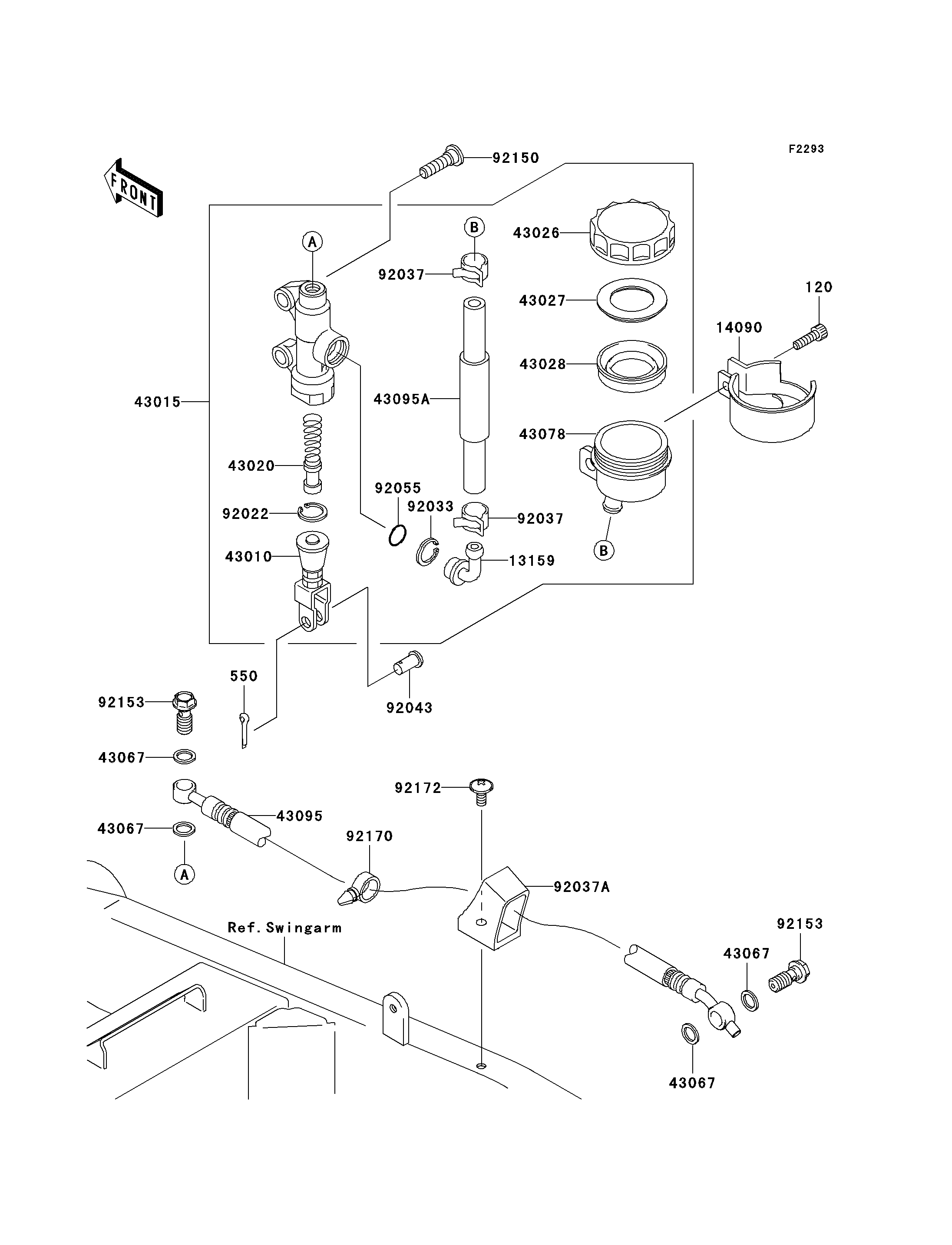

2006 Z1000 - Rear Master Cylinder

DOWNLOAD PDF
SELECT A NEW PART
120
550
13159
14090
43010
43015
43020
43026
43027
43028
43067
43067
43067
43067
43078
43095
43095A
92022
92033
92037
92037
92037A
92043
92055
92150
92153
92153
92170
92172
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,6X20 120 120S0620 1
PIN-COTTER,2.0X15 550 550D2015 1
CONNECTOR,RR MASTER CYLINDER 13159 13159-1052 1
COVER,RESERVOIR TANK 14090 14090-1482 1
ROD-ASSY-BRAKE 43010 43010-1062 1
CYLINDER-ASSY-MASTER,RR 43015 43015-1706 1
PISTON-COMP-BRAKE 43020 43020-1094 1
CAP-BRAKE 43026 43026-1051 1
PLATE-DIAPHRAGM 43027 43027-1051 1
DIAPHRAGM,MASTER CYLINDER 43028 43028-1057 1
WASHER,10.5X15X1.5 43067 43067-001 4
RESERVOIR,RR MASTER CYLINDER 43078 43078-1165 1
HOSE-BRAKE,RR 43095 43095-0103 1
HOSE-BRAKE,RR MASTER CYLINDER 43095A 43095-1292 1
WASHER,CIRCRIP 92022 92022-1601 1
RING-SNAP,20.5MM 92033 92033-1186 1
CLAMP,BRAKE HOSE 92037 92037-1547 2
CLAMP,HOSE 92037A 92037-1896 1
PIN,8MM 92043 92043-1303 1
RING-O,MASTER CYLINDER 92055 92055-1251 1
BOLT,SOCKET,8X30 92150 92150-1843 2
BOLT,OIL,L=23 92153 92153-0627 2
CLAMP 92170 92170-1067 1
SCREW,6X14 92172 92172-0004 1
