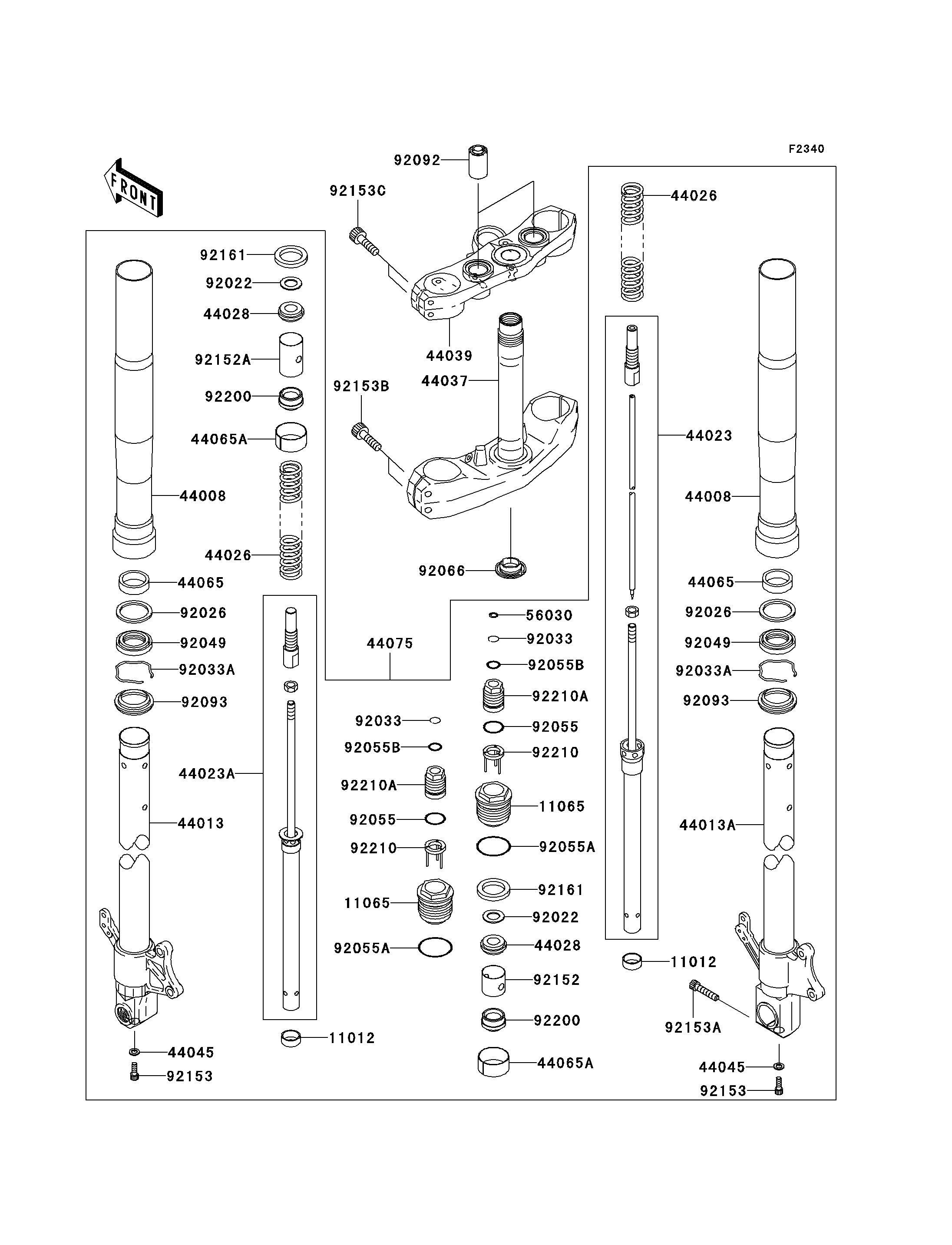

2006 Z1000 - Front Fork

DOWNLOAD PDF
SELECT A NEW PART
11012
11012
11065
11065
44008
44008
44013
44013A
44023
44023A
44026
44026
44028
44028
44037
44039
44045
44045
44065
44065
44065A
44065A
44075
56030
92022
92022
92026
92026
92033
92033
92033A
92033A
92049
92049
92055
92055
92055A
92055A
92055B
92055B
92066
92092
92093
92093
92152
92152A
92153
92153
92153A
92153B
92153C
92161
92161
92200
92200
92210
92210
92210A
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP 11012 11012-1761 2
CAP 11065 11065-0011 2
PIPE-FORK OUTER 44008 44008-1059 2
PIPE-FORK INNER,LH,M.M.GOLD 44013 44013-1513-D3 1
PIPE-FORK INNER,RH,M.M.GOLD 44013A 44013-1514-D3 1
CYLINDER-SET-FORK,RH 44023 44023-0002 1
CYLINDER-SET-FORK,LH 44023A 44023-0003 1
SPRING-FRONT FORK 44026 44026-0004 2
GUIDE-FORK SPRING 44028 44028-1083 2
HOLDER-FORK UNDER 44037 44037-1444 1
HOLDER-FORK UPPER 44039 44039-0040 1
GASKET,FORK CYLINDER BOLT 44045 44045-051 2
BUSHING-FRONT FORK,GUIDE 44065 44065-0001 2
BUSHING-FRONT FORK,SLIDE 44065A 44065-0002 2
DAMPER-SET-FORK,M.M.GOLD 44075 44075-0018-D3 1
LABEL 56030 56030-0006 1
WASHER,SPRING SEAT 92022 92022-1713 2
SPACER,FORK OUTER 92026 92026-1276 2
RING-SNAP 92033 92033-0002 2
RING-SNAP 92033A 92033-1222 2
SEAL-OIL,FORK 92049 92049-1363 2
RING-O 92055 92055-0003 2
RING-O,FORK CAP 92055A 92055-1497 2
RING-O 92055B 92055-1498 2
PLUG 92066 92066-0032 1
BUSHING-RUBBER 92092 92092-1090 2
SEAL,FORK 92093 92093-1268 2
COLLAR,SPRING,L=30 92152 92152-0011 1
COLLAR,SPRING,L=47.5 92152A 92152-0012 1
BOLT,SOCKET,8X22 92153 92153-0028 2
BOLT,SOCKET,8X40 92153A 92153-0536 1
BOLT,SOCKET 92153B 92153-0537 4
BOLT,SOCKET 92153C 92153-0538 4
DAMPER 92161 92161-0006 2
WASHER 92200 92200-1464 2
SPRING ADJUST PLATE 92210 92210-0019 2
NUT,SPRING ADJUSTER 92210A 92210-0020 2
