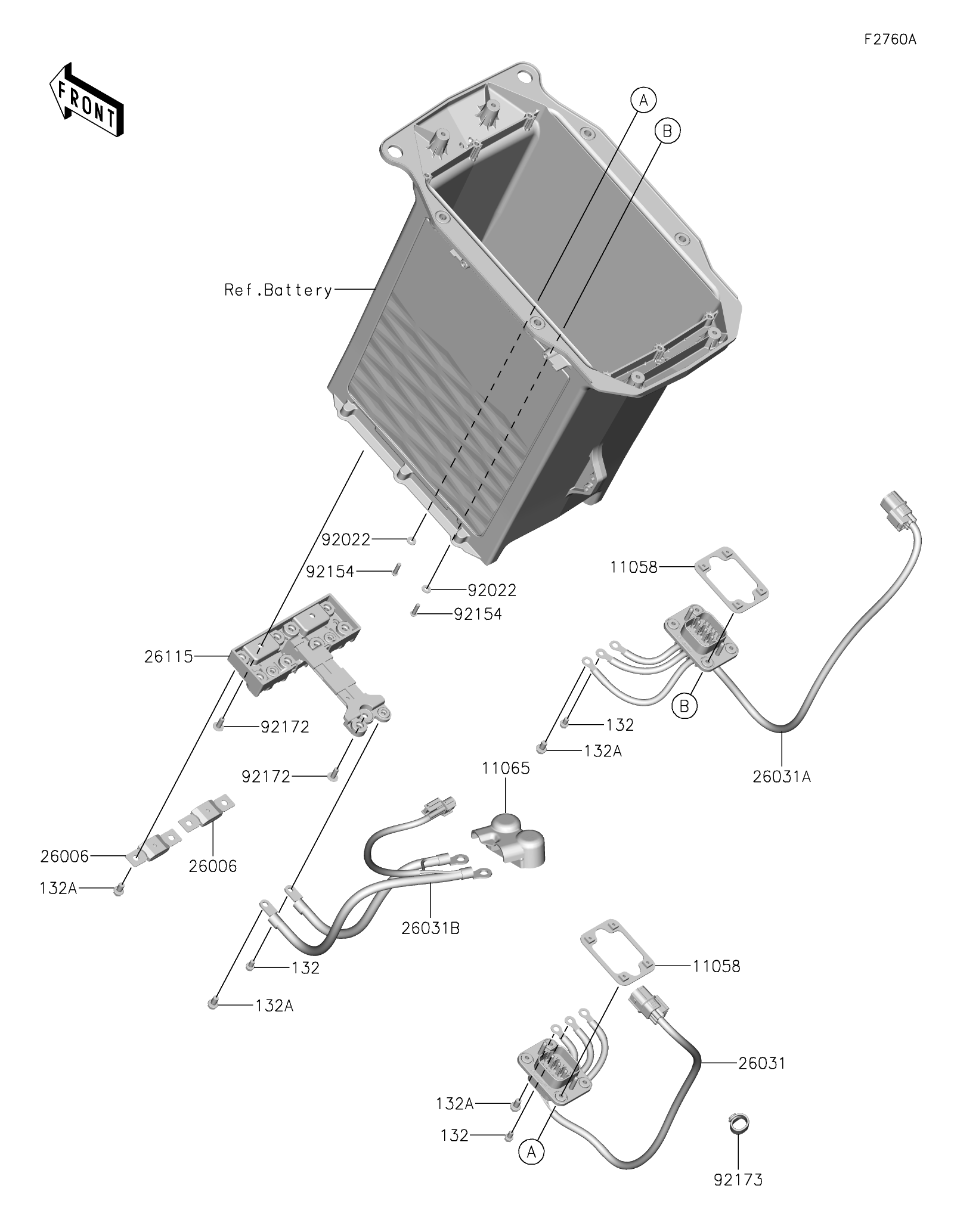

2024 NINJA® e-1 ABS - Chassis Electrical Equipment-2
11058
11058
11065
26006
26006
26031
26031A
26031B
26115
92022
92022
92154
92154
92172
92172
92173
132
132
132
132A
132A
132A
132A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET | 11058 | 11058-0770 | 2 | ||
| CAP,MOTOR | 11065 | 11065-1447 | 1 | ||
| FUSE,MEGA 200A | 26006 | 26006-0057 | 2 | ||
| HARNESS,48V BATTERY,LH | 26031 | 26031-4005 | 1 | ||
| HARNESS,48V BATTERY,RH | 26031A | 26031-4006 | 1 | ||
| HARNESS,48V BATTERY | 26031B | 26031-4054 | 1 | ||
| BUS-BAR | 26115 | 26115-0001 | 1 | ||
| WASHER | 92022 | 92022-563 | 8 | ||
| BOLT,SOCKET,4X16 | 92154 | 92154-7112 | 8 | ||
| SCREW,TAPPING,5X14 | 92172 | 92172-0265 | 3 | ||
| CLAMP | 92173 | 92173-2198 | 1 | ||
| BOLT-FLANGED-SMALL,5X8 | 132 | 132BA0508 | 3 | ||
| BOLT-FLANGED-SMALL,6X10 | 132A | 132BA0610 | 9 |
