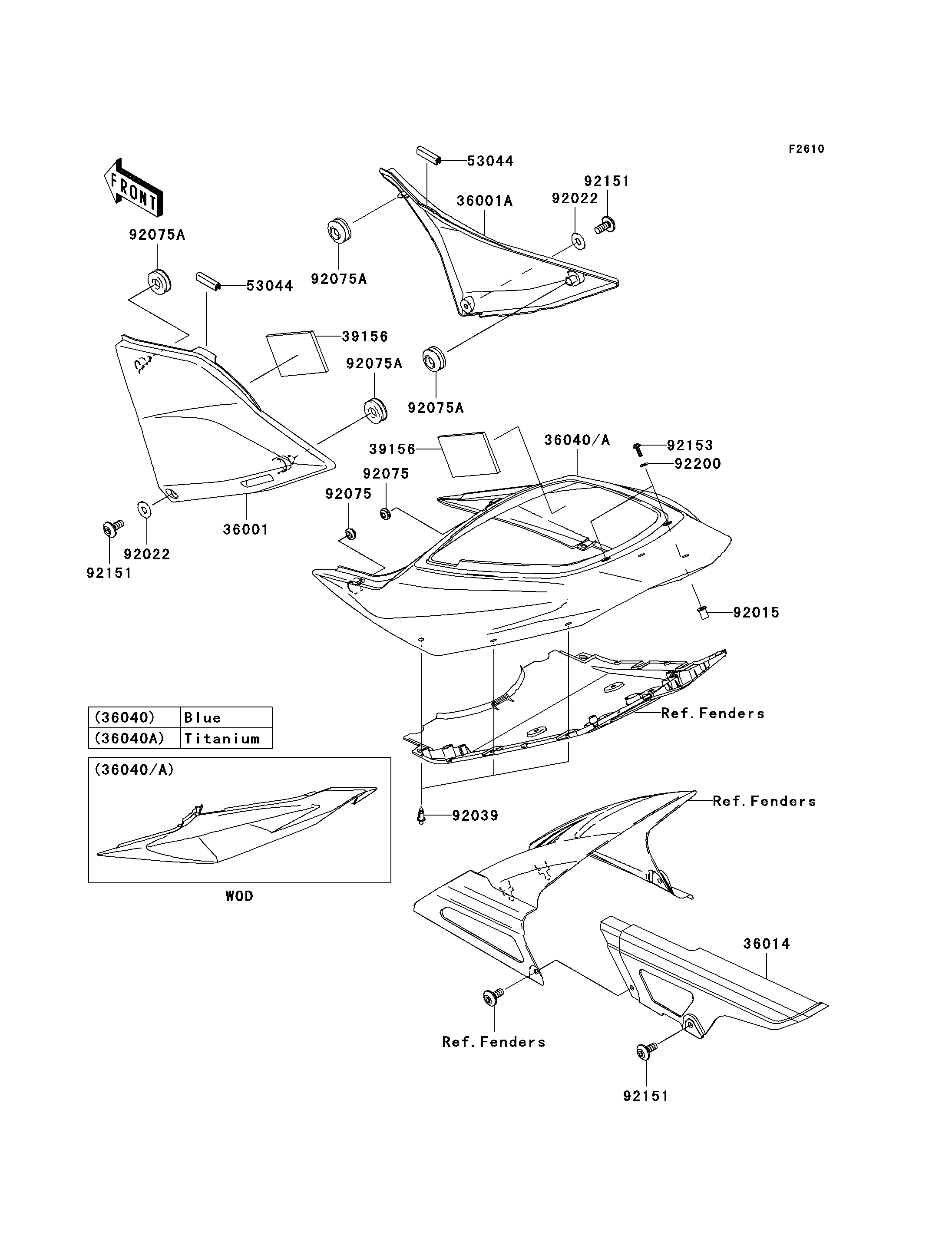

Parts Diagrams |
36001
36001A
36014
36040
39156
39156
53044
53044
92015
92022
92022
92039
92075
92075
92075A
92075A
92075A
92075A
92151
92151
92151
92153
92200
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COVER-SIDE,LH,M.F.GRAYSTONE | 36001 | 36001-0040-4P | 1 | ||
| COVER-SIDE,RH,M.F.GRAYSTONE | 36001A | 36001-0041-4P | 1 | ||
| CASE-CHAIN | 36014 | 36014-1263 | 1 | ||
| COVER-TAIL,BLUE | 36040 | 36040-0012-10E | 1 | ||
| PAD | 39156 | 39156-0024 | 2 | ||
| TRIM,L=30 | 53044 | 53044-0001 | 2 | ||
| NUT,WELL,5MM | 92015 | 92015-1757 | 2 | ||
| WASHER,6.5X16X1 | 92022 | 92022-1143 | 2 | ||
| RIVET | 92039 | 92039-0015 | 6 | ||
| DAMPER | 92075 | 92075-1011 | 2 | ||
| DAMPER | 92075A | 92075-1067 | 4 | ||
| BOLT,SOCKET,6X14 | 92151 | 92151-1654 | 3 | ||
| BOLT,SOCKET,5X16 | 92153 | 92153-1244 | 2 | ||
| WASHER,NYLONE,5.3X11.5X0.5 | 92200 | 92200-0006 | 2 | ||
| COVER-TAIL,TITANIUM | 36040A | 36040-0012-725 | 1 | CN |
