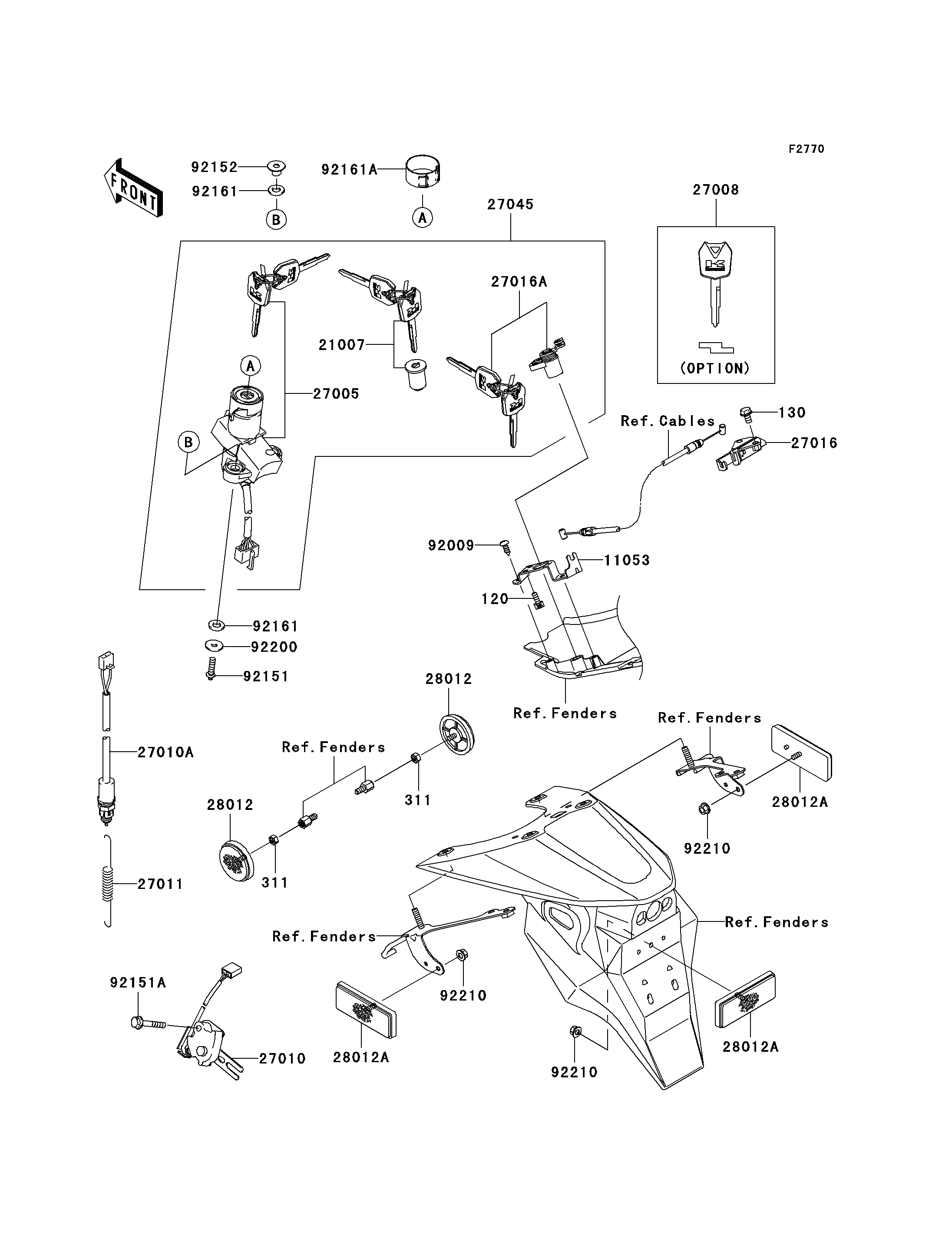

2006 Z1000 - Ignition Switch/Locks/Reflectors

DOWNLOAD PDF
SELECT A NEW PART
120
130
311
311
11053
21007
27005
27008
27010
27010A
27011
27016
27016A
27045
28012
28012
28012A
28012A
28012A
92009
92151
92151A
92152
92161
92161
92161A
92200
92210
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,5X12 120 120S0512 2
BOLT-FLANGED,6X12 130 130J0612 2
NUT-HEX 311 311L0500 2
BRACKET,SEAT LOCK 11053 11053-1146 1
ROTOR,LOCK,TANK CAP 21007 21007-5057 1
SWITCH-ASSY-IGNITION 27005 27005-5135 1
KEY-LOCK,BLANK 27008 27008-0030 1 (OPTION)
SWITCH,SIDE STAND 27010 27010-1470 1
SWITCH,REAR BRAKE 27010A 27010-1479 1
SPRING,BRAKE LAMP SWITCH 27011 27011-021 1
LOCK-ASSY,SEAT STRIKER 27016 27016-1115 1
LOCK-ASSY,SEAT 27016A 27016-5322 1
SWITCH-ASSY 27045 27045-5331 1
REFLECTOR-REFLEX,FR 28012 28012-016 2
REFLECTOR-REFLEX 28012A 28012-1077 3
SCREW,TAPPING,5X12,BLACK 92009 92009-1138 2
BOLT,TORX,6X22 92151 92151-1946 2
BOLT,6X35 92151A 92151-1982 1
COLLAR 92152 92152-0352 2
DAMPER,IGNITION SWITCH 92161 92161-0240 4
DAMPER,IGINITION SWITCH 92161A 92161-0257 1
WASHER,6X20X1.6 92200 92200-0212 2
NUT,FLANGED,5MM 92210 92210-0007 3
