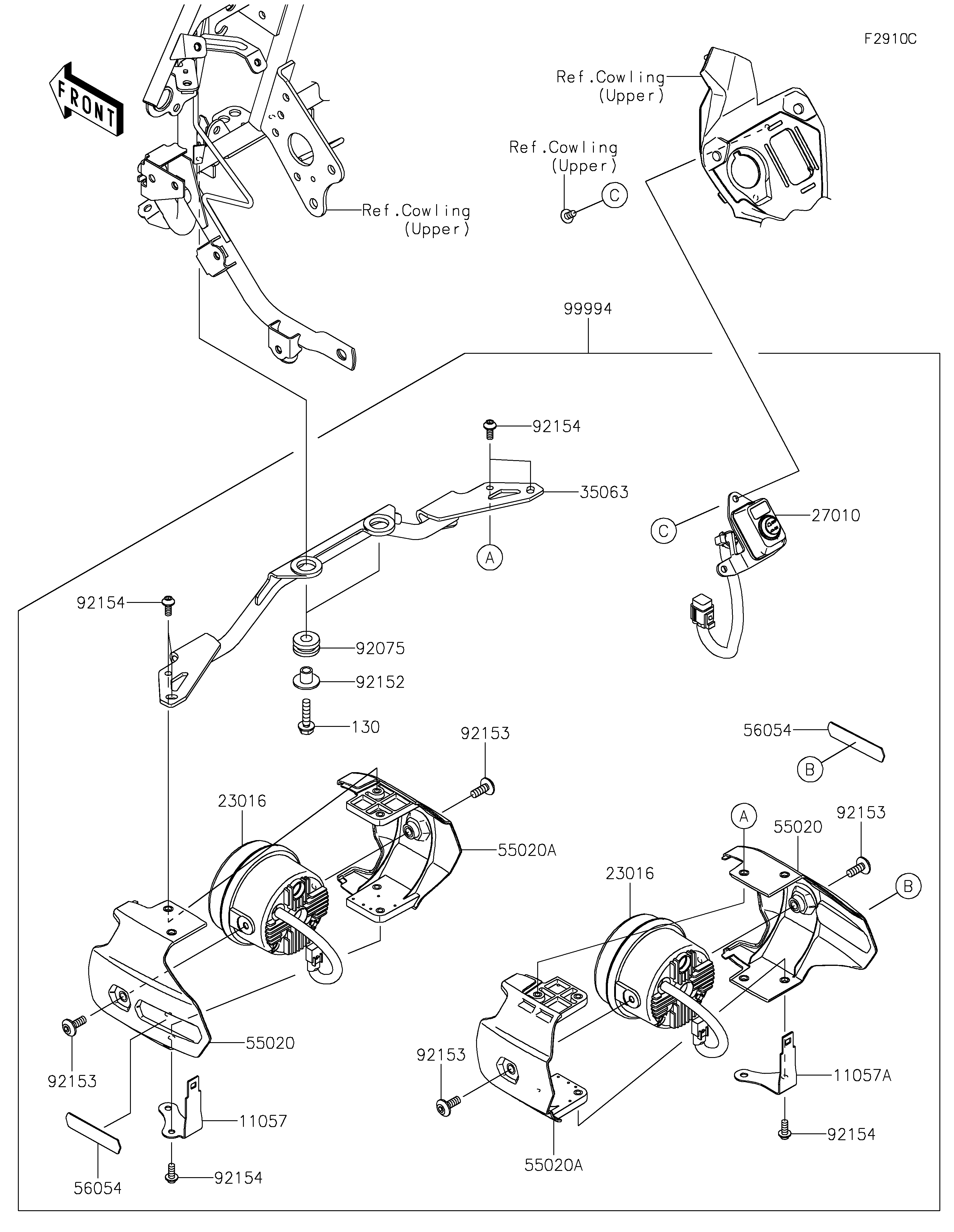

2023 VERSYS® 650 - Accessory(LED Lamp)
11057
11057A
23016
23016
27010
35063
55020
55020
55020A
55020A
56054
56054
92075
92152
92153
92153
92153
92153
92154
92154
92154
92154
99994
130
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,LH | 11057 | 11057-7532 | 1 | ||
| BRACKET,RH | 11057A | 11057-7533 | 1 | ||
| LAMP-ASSY,LED,FOG,PIAA | 23016 | 23016-0599 | 2 | ||
| SWITCH,FOG LAMP | 27010 | 27010-0968 | 1 | ||
| STAY | 35063 | 35063-1582 | 1 | ||
| GUARD,OUTER | 55020 | 55020-1825 | 2 | ||
| GUARD,INNER | 55020A | 55020-1826 | 2 | ||
| MARK,FOG LAMP,KAWASAKI | 56054 | 56054-1695 | 2 | ||
| DAMPER,CASE | 92075 | 92075-222 | 2 | ||
| COLLAR,6.8X10X12.1 | 92152 | 92152-1407 | 2 | ||
| BOLT,SOCKET,6X16 | 92153 | 92153-1526 | 4 | ||
| BOLT,SOCKET,5X12 | 92154 | 92154-0917 | 8 | ||
| LED LAMP | 99994 | 99994-1687 | 1 | ||
| BOLT-FLANGED,6X25 | 130 | 130BB0625 | 2 |
