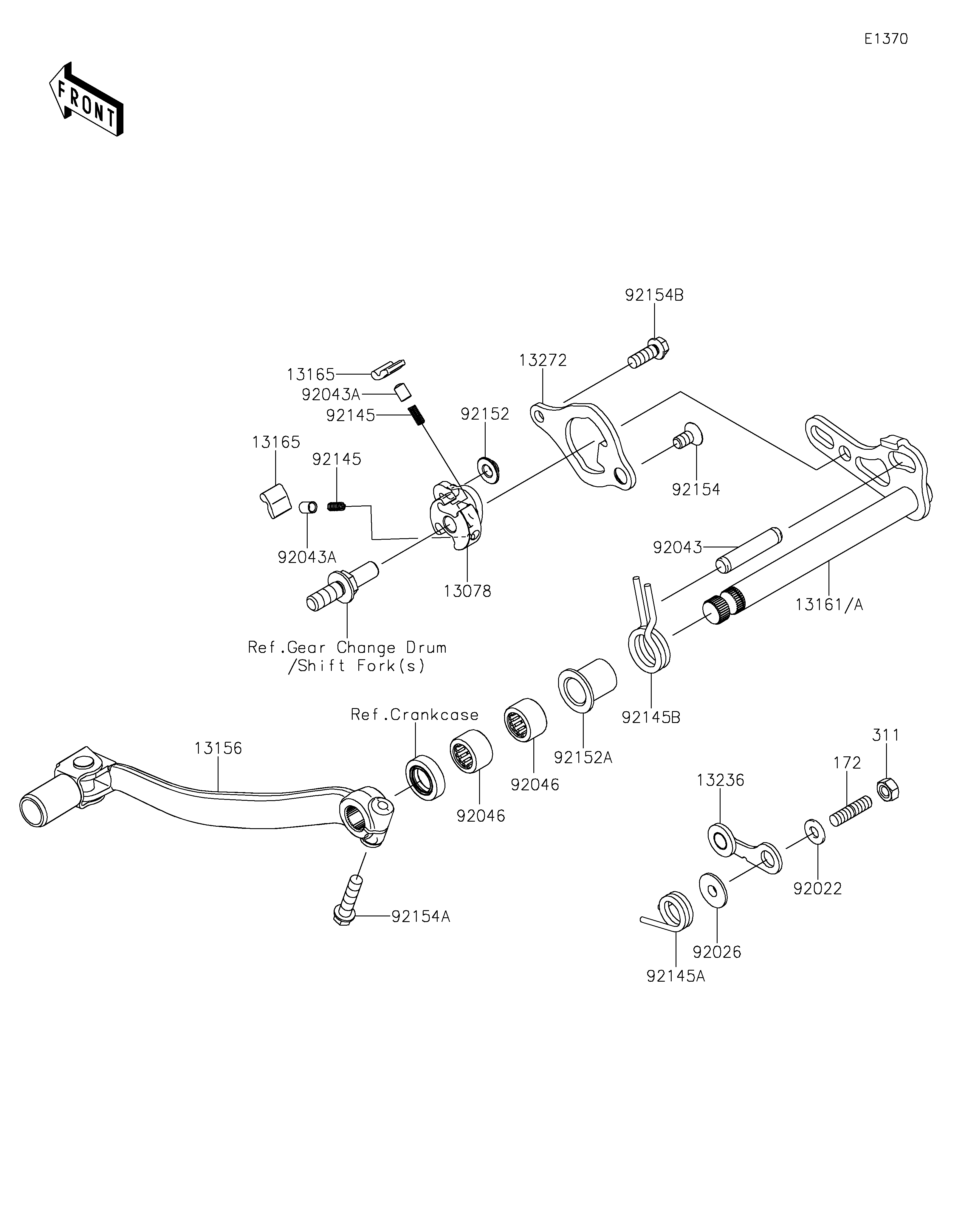

2021 KX™250 - Gear Change Mechanism

DOWNLOAD PDF
SELECT A NEW PART
13078
13156
13161
13165
13165
13236
13272
92022
92026
92043
92043A
92043A
92046
92046
92145
92145
92145A
92145B
92152
92152A
92154
92154A
92154B
172
311
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
RATCHET 13078 13078-0029 1
LEVER-CHANGE,PEDAL 13156 13156-0124 1
LEVER-COMP-CHANGE SHAFT 13161 13161-0590 1
PAWL 13165 13165-0018 2
LEVER-COMP,POSITION 13236 13236-0161 1
PLATE,PAWL GUIDE 13272 13272-2127 1
WASHER,6X12.8X1.2 92022 92022-1827 1
SPACER 92026 92026-1217 1
PIN,8X39 92043 92043-0017 1
PIN,PLUNGER 92043A 92043-1676 2
BEARING-NEEDLE,HK1312 92046 92046-1148 2
SPRING 92145 92145-0453 2
SPRING,POSITION 92145A 92145-0843 1
SPRING,RETURN 92145B 92145-1725 1
COLLAR 92152 92152-1414 1
COLLAR 92152A 92152-2208 1
BOLT,TORX 92154 92154-1621 1
BOLT,FLANGED,6X25 92154A 92154-2967 1
BOLT,FLANGED,6X16 92154B 92154-4131 1
BOLT-STUD,6X12 172 172BA0612 1
NUT-HEX,6MM 311 311BA0600 1
