32160
32160A
92002
92015
92015A
92022
92066
92116
92116A
92154
92161
92161
92210
92210A

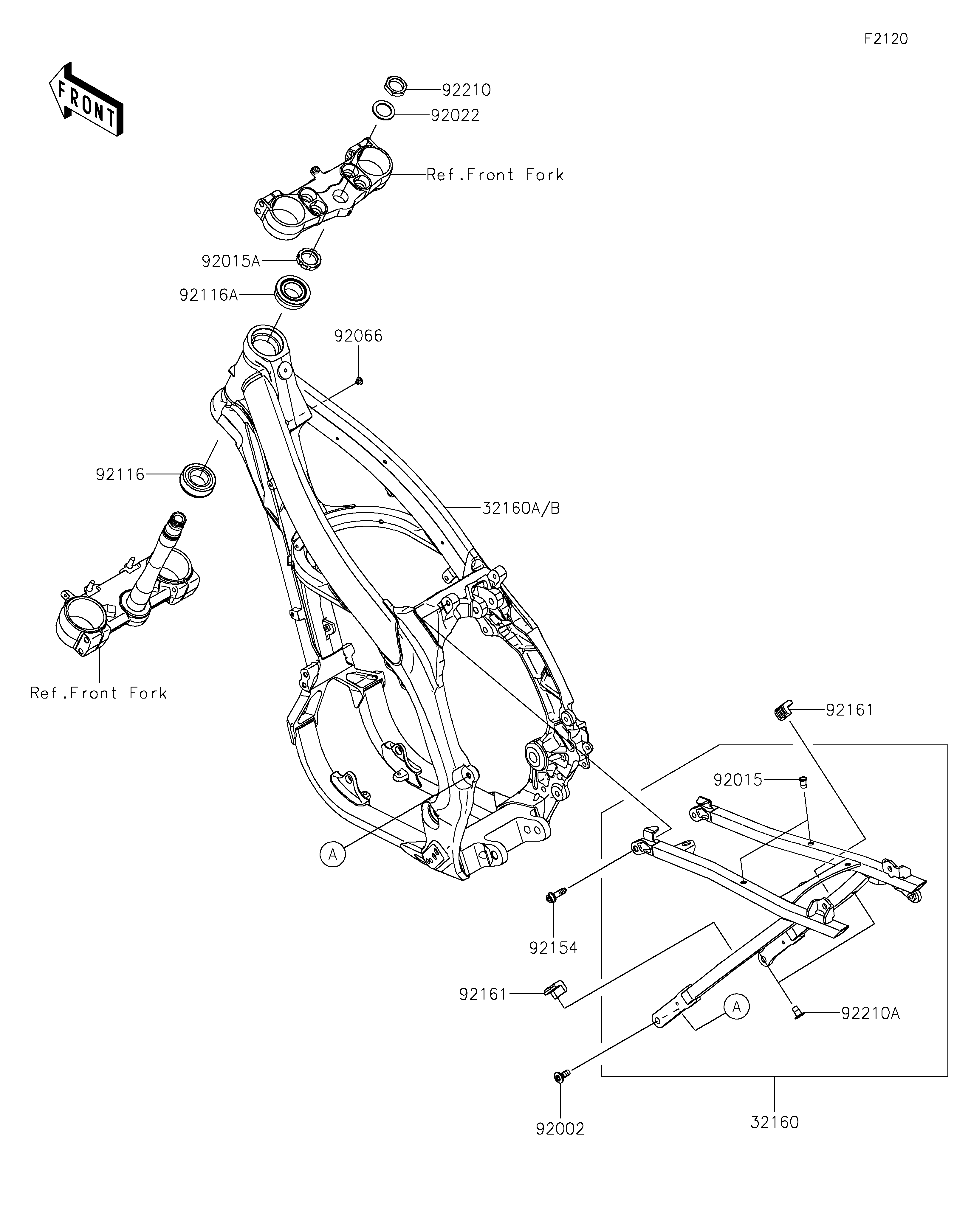

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FRAME-COMP,RR 32160 32160-0976 1
FRAME-COMP,MAIN 32160A 32160-1922 1
BOLT,SOCKET,8X20 92002 92002-1736 2
NUT,POP,6MM,L=15 92015 92015-1791 2
NUT,STEERING STEM,28MM 92015A 92015-1861 1
WASHER,25X36X2.3 92022 92022-250 1
PLUG 92066 92066-1547 1
BEARING-ROLLER,HI-CAP32006JRRS 92116 92116-1069 1
BEARING-ROLLER,HI-CAP320/28JRR 92116A 92116-1076 1
BOLT,SOCKET,8X28 92154 92154-2991 2
DAMPER 92161 92161-2175 2
NUT,24MM 92210 92210-0066 1
NUT,LARGE FLANGE,6MM,L=16.5 92210A 92210-1623 2
