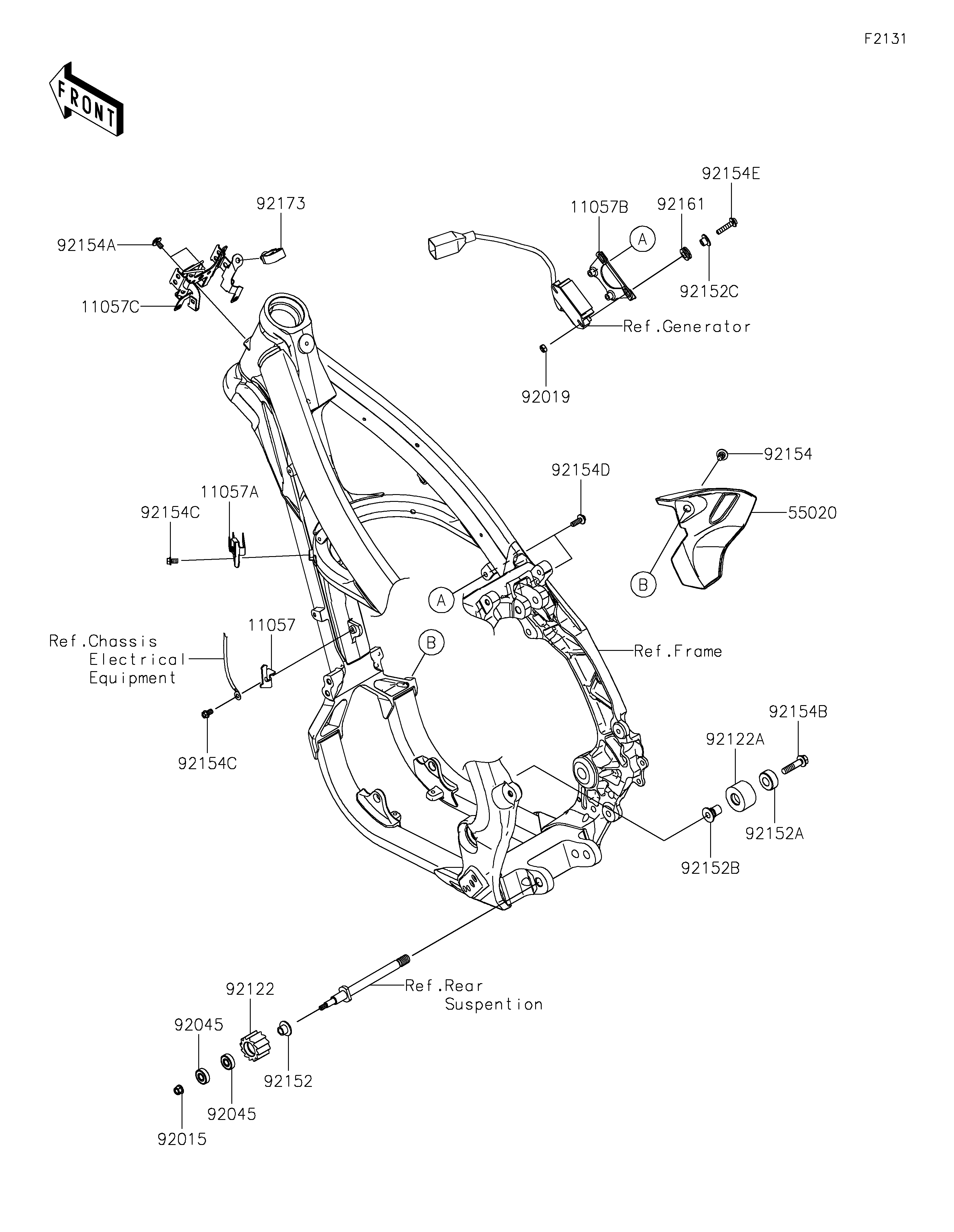

2021 KX™250 - Frame Fittings

DOWNLOAD PDF
SELECT A NEW PART
11057
11057A
11057B
11057C
55020
92015
92019
92045
92045
92122
92122A
92152
92152A
92152B
92152C
92154
92154A
92154B
92154C
92154C
92154D
92154E
92161
92173
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,VEHICLE DOWN SENSOR 11057 11057-1528 1
BRACKET,COUPLER 11057A 11057-1529 1
BRACKET,REGULATOR 11057B 11057-1531 1
BRACKET,ECU 11057C 11057-1557 1
GUARD 55020 55020-2213 1
NUT,LOCK,FLANGED,6MM 92015 92015-1339 1
NUT,LOCK,6MM 92019 92019-008 2
BEARING-BALL,608LLU/2A 92045 92045-0060 2
ROLLER,CHAIN GUIDE 92122 92122-0016 1
ROLLER,CHAIN 92122A 92122-0042 1
COLLAR 92152 92152-0459 1
COLLAR,12.7X27.2X12 92152A 92152-0945 1
COLLAR,8.3X12.5X21.5 92152B 92152-2460 1
COLLAR,6.5X10X8.5 92152C 92152-2467 2
BOLT,FLANGED,6X9 92154 92154-0546 1
BOLT,SOCKET,6X10 92154A 92154-0774 2
BOLT,FLANGED,8X35 92154B 92154-1746 1
BOLT,6X10 92154C 92154-2963 2
BOLT,SOCKET,6X18,AL 92154D 92154-3774 2
BOLT,SOCKET,6X27,AL 92154E 92154-3775 2
DAMPER,10X18X6.5 92161 92161-2091 2
CLAMP 92173 92173-0861 1
