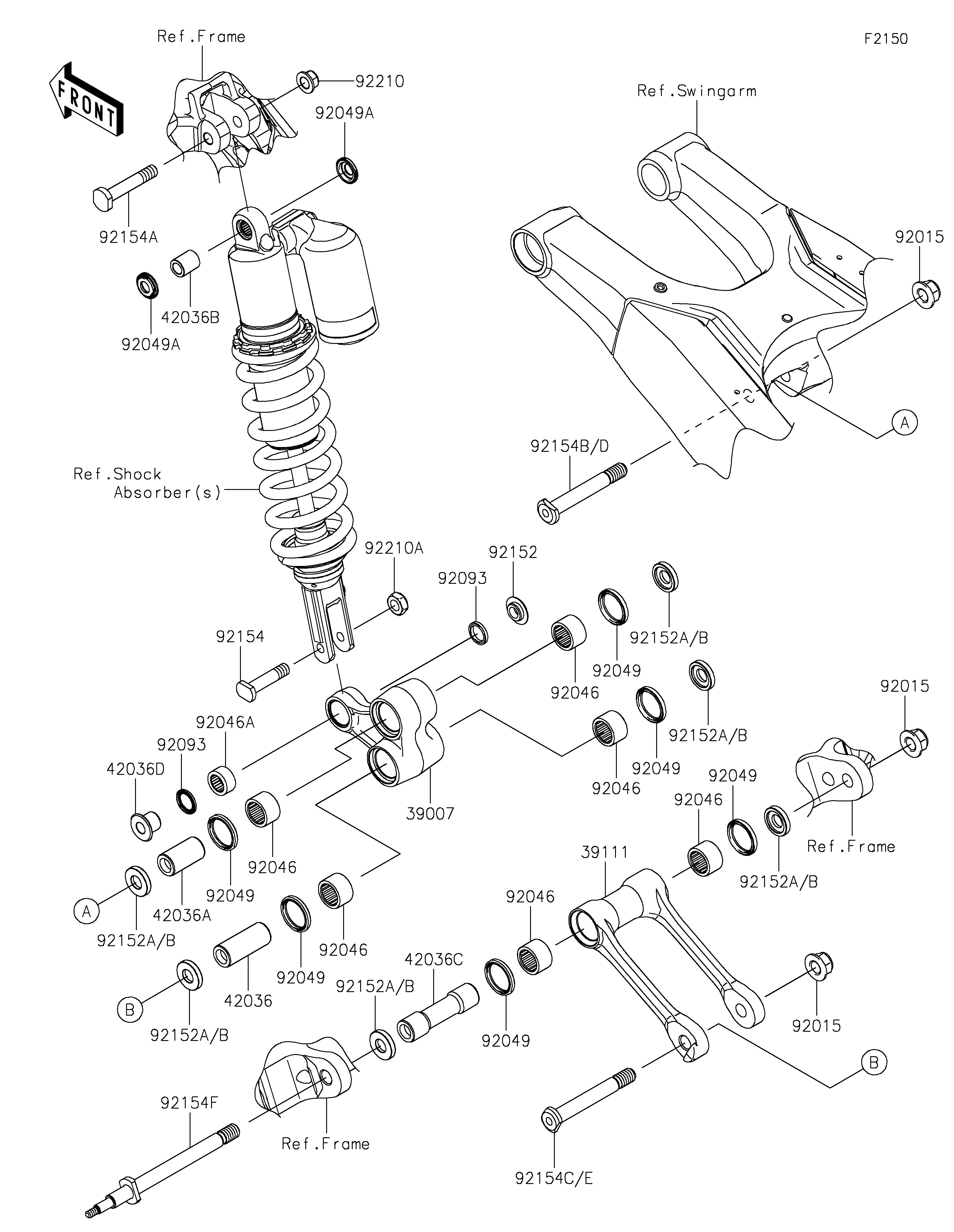

2021 KX™250 - Rear Suspension

DOWNLOAD PDF
SELECT A NEW PART
39007
39111
42036
42036A
42036B
42036C
42036D
92015
92015
92015
92046
92046
92046
92046
92046
92046
92046A
92049
92049
92049
92049
92049
92049
92049A
92049A
92093
92093
92152
92152B
92152B
92152B
92152B
92152B
92152B
92154
92154A
92154B
92154C
92154F
92210
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
ARM-SUSP 39007 39007-0411 1
ROD-TIE 39111 39111-0357 1
SLEEVE,SUSPENSION ARM,L=49 42036 42036-0021 1
SLEEVE,SUSPENSION ARM,L=37 42036A 42036-0022 1
SLEEVE,10X16X19.3 42036B 42036-0030 1
SLEEVE,12X20X77.8 42036C 42036-0822 1
SLEEVE 42036D 42036-1351 1
NUT,LOCK,FLANGED,12MM 92015 92015-1433 3
BEARING-NEEDLE,F-2016 92046 92046-1151 6
BEARING-NEEDLE,16BM2212 92046A 92046-1192 1
SEAL-OIL,SDO26X32X4 92049 92049-0063 6
SEAL-OIL 92049A 92049-0069 2
SEAL 92093 92093-1436 2
COLLAR 92152 92152-1139 1
COLLAR 92152B 92152-2701 6
BOLT,10X45 92154 92154-0512 1
BOLT,10X58 92154A 92154-0513 1
BOLT,12X86 92154B 92154-1714 1
BOLT,12X92 92154C 92154-1717 1
BOLT,TIE ROD 92154F 92154-4080 1
NUT,LOCK,FLANGED,10MM 92210 92210-1080 1
NUT,LOCK,10MM 92210A 92210-1184 1
