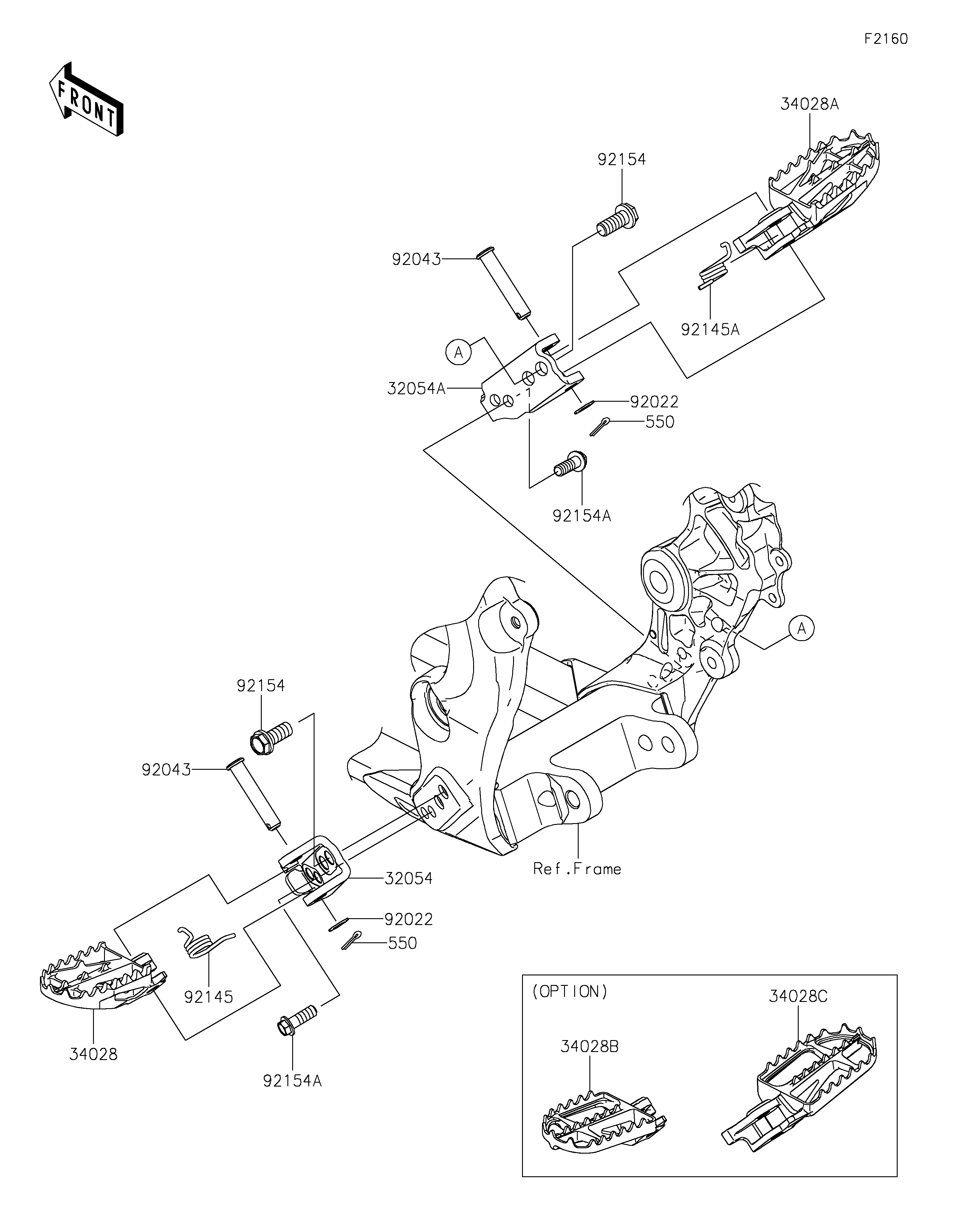

Parts Diagrams |
32054
32054A
34028
34028A
34028B
34028C
92022
92022
92043
92043
92145
92145A
92154
92154
92154A
92154A
550
550
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET-STEP,LH | 32054 | 32054-0054 | 1 | ||
| BRACKET-STEP,RH | 32054A | 32054-0055 | 1 | ||
| STEP,LH | 34028 | 34028-0104 | 1 | ||
| STEP,RH | 34028A | 34028-0105 | 1 | ||
| STEP,WIDE,LH | 34028B | 34028-0360 | 1 | (OPTION) | |
| STEP,WIDE,RH | 34028C | 34028-0361 | 1 | (OPTION) | |
| WASHER,10.2X16X1 | 92022 | 92022-1829 | 2 | ||
| PIN,10X42.5 | 92043 | 92043-0074 | 2 | ||
| SPRING,STEP,LH | 92145 | 92145-0819 | 1 | ||
| SPRING,STEP,RH | 92145A | 92145-0820 | 1 | ||
| BOLT,FLANGED,10X23 | 92154 | 92154-0545 | 2 | ||
| BOLT,8X23,MEC | 92154A | 92154-2987 | 2 | ||
| PIN-COTTER,3.0X20 | 550 | 550S3020 | 2 |
| BRACKET-STEP,LH | |
| REF # | 32054 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET-STEP,RH | |
| REF # | 32054A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| STEP,LH | |
| REF # | 34028 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| STEP,RH | |
| REF # | 34028A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| STEP,WIDE,LH | |
| REF # | 34028B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (OPTION) |
| STEP,WIDE,RH | |
| REF # | 34028C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (OPTION) |
| WASHER,10.2X16X1 | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PIN,10X42.5 | |
| REF # | 92043 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SPRING,STEP,LH | |
| REF # | 92145 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,STEP,RH | |
| REF # | 92145A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,10X23 | |
| REF # | 92154 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,8X23,MEC | |
| REF # | 92154A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PIN-COTTER,3.0X20 | |
| REF # | 550 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
