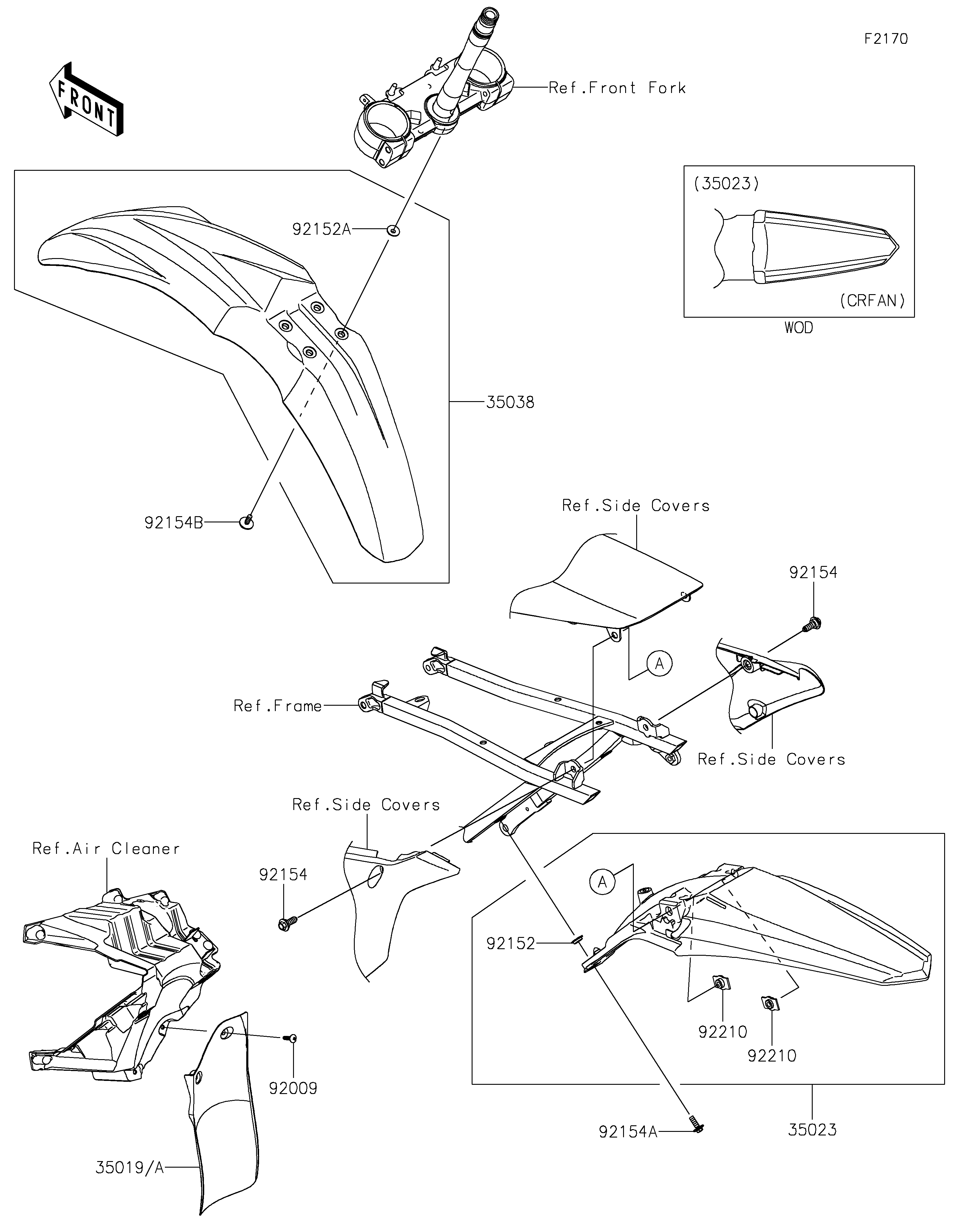

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FLAP 35019 35019-0653 1
FENDER-REAR,L.GREEN 35023 35023-0445-290 1
FENDER-FRONT,L.GREEN 35038 35038-0008-290 1
SCREW,TAPPING,5X20 92009 92009-1993 2
COLLAR 92152 92152-0052 2
COLLAR 92152A 92152-1422 4
BOLT,STEPPED,8X23 92154 92154-2961 2
BOLT,FLANGED,6X20 92154A 92154-2972 2
BOLT,6X18 92154B 92154-2973 4
NUT,8MM 92210 92210-1635 2
