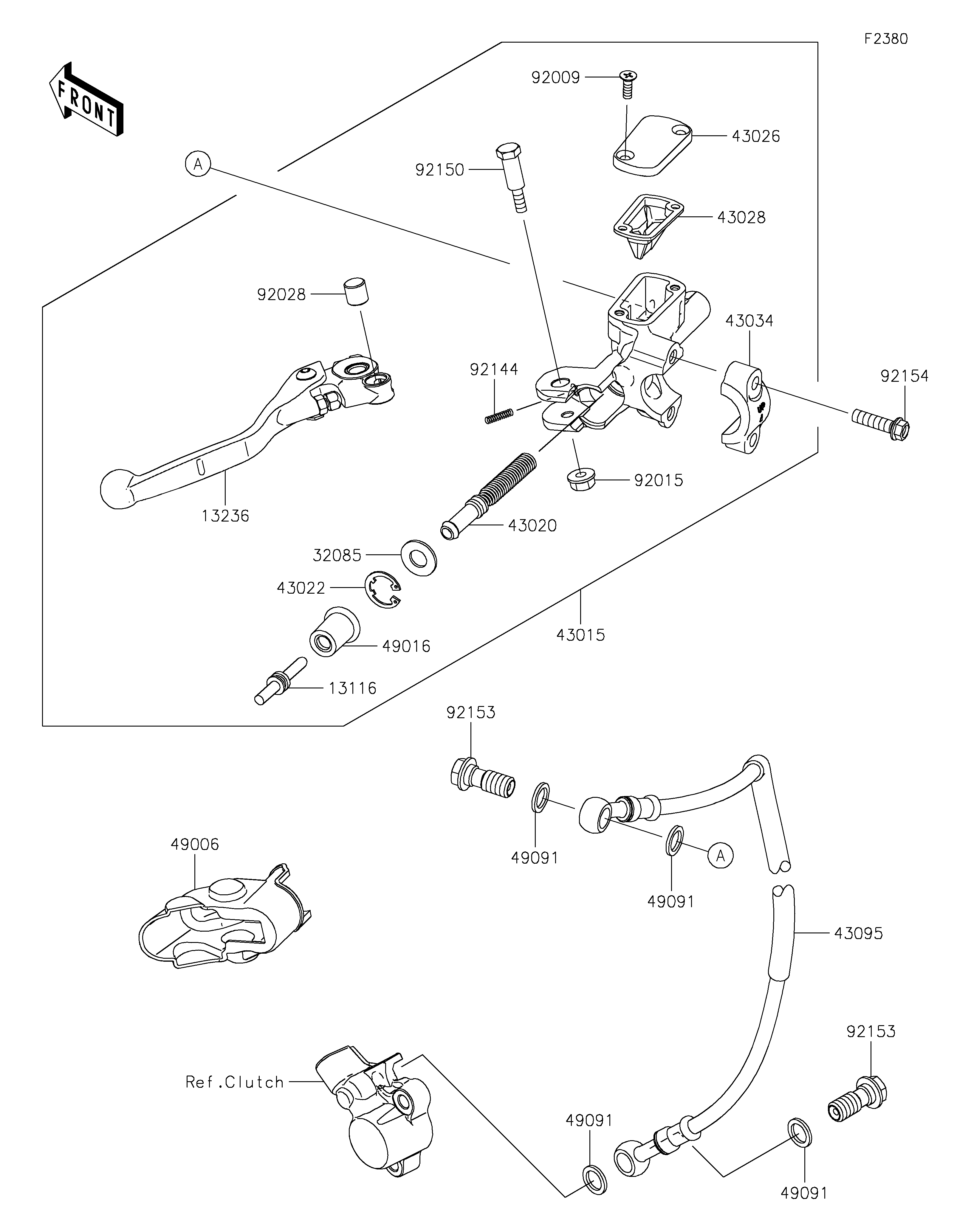

2021 KX™250 - Clutch Master Cylinder

DOWNLOAD PDF
SELECT A NEW PART
13116
13236
32085
43015
43020
43022
43026
43028
43034
43095
49006
49016
49091
49091
49091
49091
92009
92015
92028
92144
92150
92153
92153
92154
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
ROD-PUSH 13116 13116-0743 1
LEVER-COMP 13236 13236-0813 1
STOPPER 32085 32085-1508 1
CYLINDER-ASSY-MASTER,CLUTCH 43015 43015-0742 1
PISTON-COMP-BRAKE 43020 43020-0030 1
STOPPER-BRAKE,PISTON 43022 43022-1010 1
CAP-BRAKE 43026 43026-0030 1
DIAPHRAGM 43028 43028-1092 1
HOLDER-BRAKE 43034 43034-1110 1
HOSE-BRAKE,CLUTCH,1116MM 43095 43095-1542 1
BOOT,CLUTCH M/CYL. 49006 49006-0605 1
COVER-SEAL 49016 49016-0663 1
WASHER-SEAL,10.1X14.5X1.5 49091 49091-0001 4
SCREW 92009 92009-1795 2
NUT,FLANGED,6MM 92015 92015-1528 1
BUSHING,MASTER CYLINDER 92028 92028-1310 1
SPRING,RETURN 92144 92144-1725 1
BOLT,LEVER SET 92150 92150-1451 1
BOLT,OIL,L=23 92153 92153-1419 2
BOLT,6X22 92154 92154-3780 2
