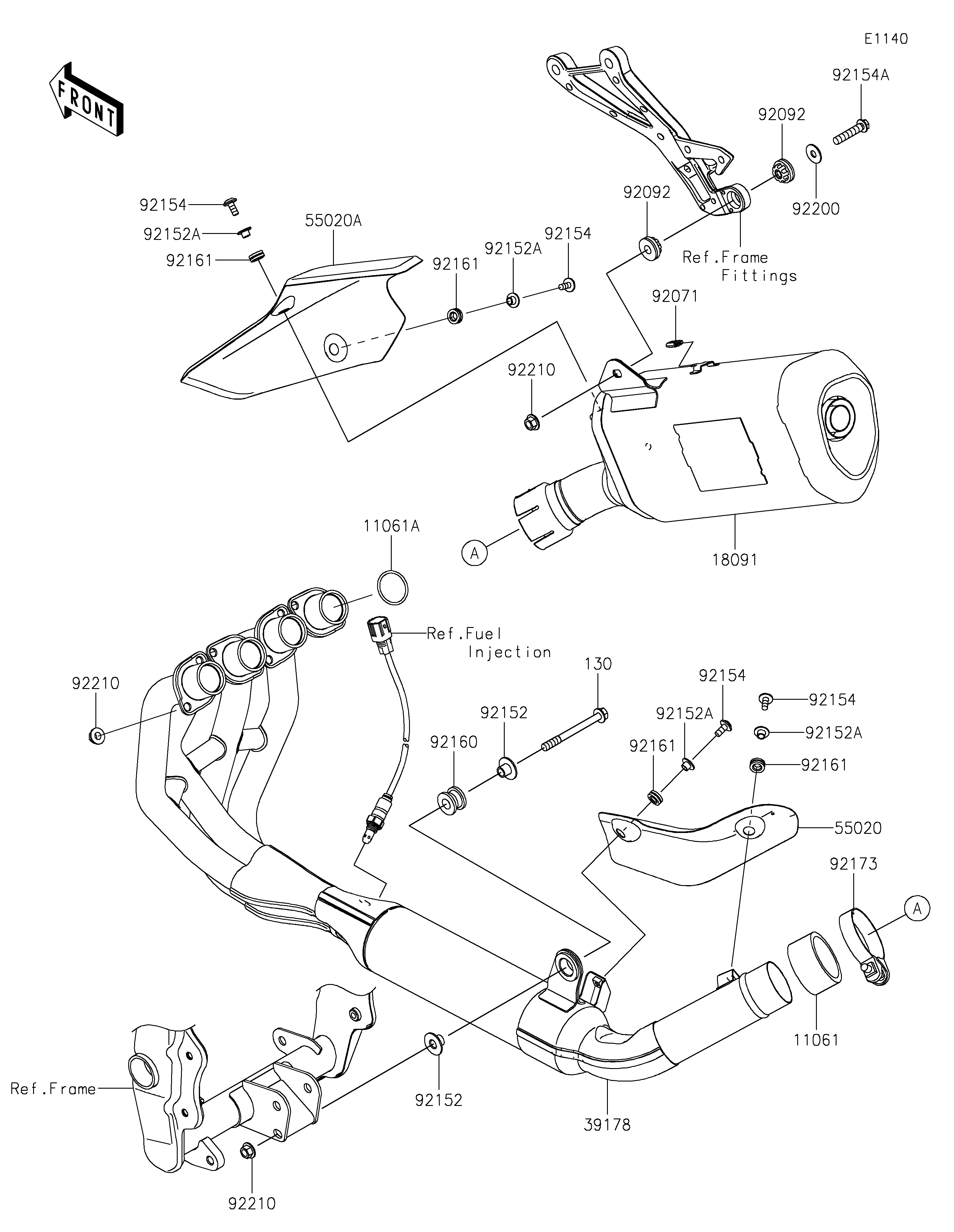

Parts Diagrams |
11061
11061A
18091
39178
55020
55020A
92071
92092
92092
92152
92152
92152A
92152A
92152A
92152A
92154
92154
92154
92154
92154A
92160
92161
92161
92161
92161
92173
92200
92210
92210
92210
130
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,50.8X62X30 | 11061 | 11061-0447 | 1 | ||
| GASKET,MANIFOLD | 11061A | 11061-1372 | 4 | ||
| BODY-COMP-MUFFLER | 18091 | 18091-1269 | 1 | ||
| MANIFOLD-COMP-EXHAUST | 39178 | 39178-0454 | 1 | ||
| GUARD,FR | 55020 | 55020-2391 | 1 | ||
| GUARD,RR | 55020A | 55020-2392 | 1 | ||
| GROMMET | 92071 | 92071-0760 | 1 | ||
| BUSHING-RUBBER | 92092 | 92092-0044 | 2 | ||
| COLLAR | 92152 | 92152-2367 | 2 | ||
| COLLAR,6.3X8.3X16 | 92152A | 92152-2850 | 4 | ||
| BOLT,SOCKET,6X14 | 92154 | 92154-0907 | 4 | ||
| BOLT,FLANGED,8X40 | 92154A | 92154-4399 | 1 | ||
| DAMPER,MUFFLER MOUNT | 92160 | 92160-1116 | 1 | ||
| DAMPER | 92161 | 92161-1475 | 4 | ||
| CLAMP | 92173 | 92173-2516 | 1 | ||
| WASHER,8.0X22.0X1.5 | 92200 | 92200-0174 | 1 | ||
| NUT | 92210 | 92210-1312 | 10 | ||
| BOLT-FLANGED,8X85 | 130 | 130CB0885 | 1 |
