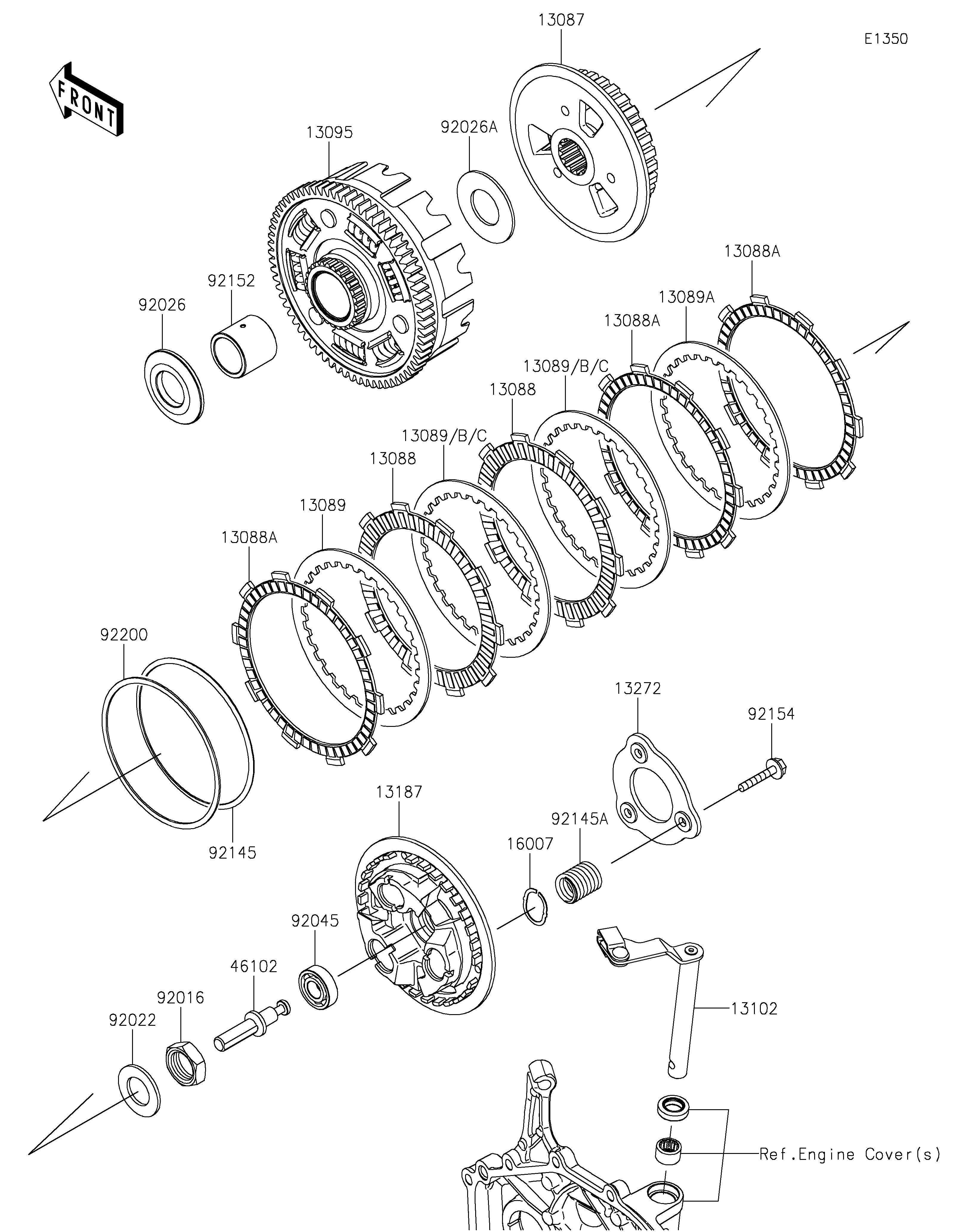

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HUB-CLUTCH 13087 13087-0594 1
PLATE-FRICTION 13088 13088-0592 2
PLATE-FRICTION 13088A 13088-0630 3
PLATE-CLUTCH,T=2.0 13089 13089-0041 3
PLATE-CLUTCH,T=2.0 13089A 13089-0042 1
PLATE-CLUTCH,T=1.6 13089B 13089-0043 AR
PLATE-CLUTCH,T=2.3 13089C 13089-0044 AR
HOUSING-COMP-CLUTCH 13095 13095-0617 1
RELEASE-COMP-CLUTCH 13102 13102-0080 1
PLATE-CLUTCH OPERATING 13187 13187-0033 1
PLATE 13272 13272-2414 1
SEAT-SPRING 16007 16007-0711 3
ROD 46102 46102-0686 1
NUT,20MM 92016 92016-028 1
WASHER,20.3X36X2.3 92022 92022-1116 1
SPACER,25X52X5.5 92026 92026-0115 1
SPACER,25.5X50.5X2 92026A 92026-0873 1
BEARING-BALL 92045 92045-0937 1
SPRING 92145 92145-1901 1
SPRING 92145A 92145-2273 3
COLLAR,25X32X29.1 92152 92152-2524 1
BOLT,UPSET,6X30 92154 92154-0997 3
WASHER,99.4X107X1.2 92200 92200-1987 1
