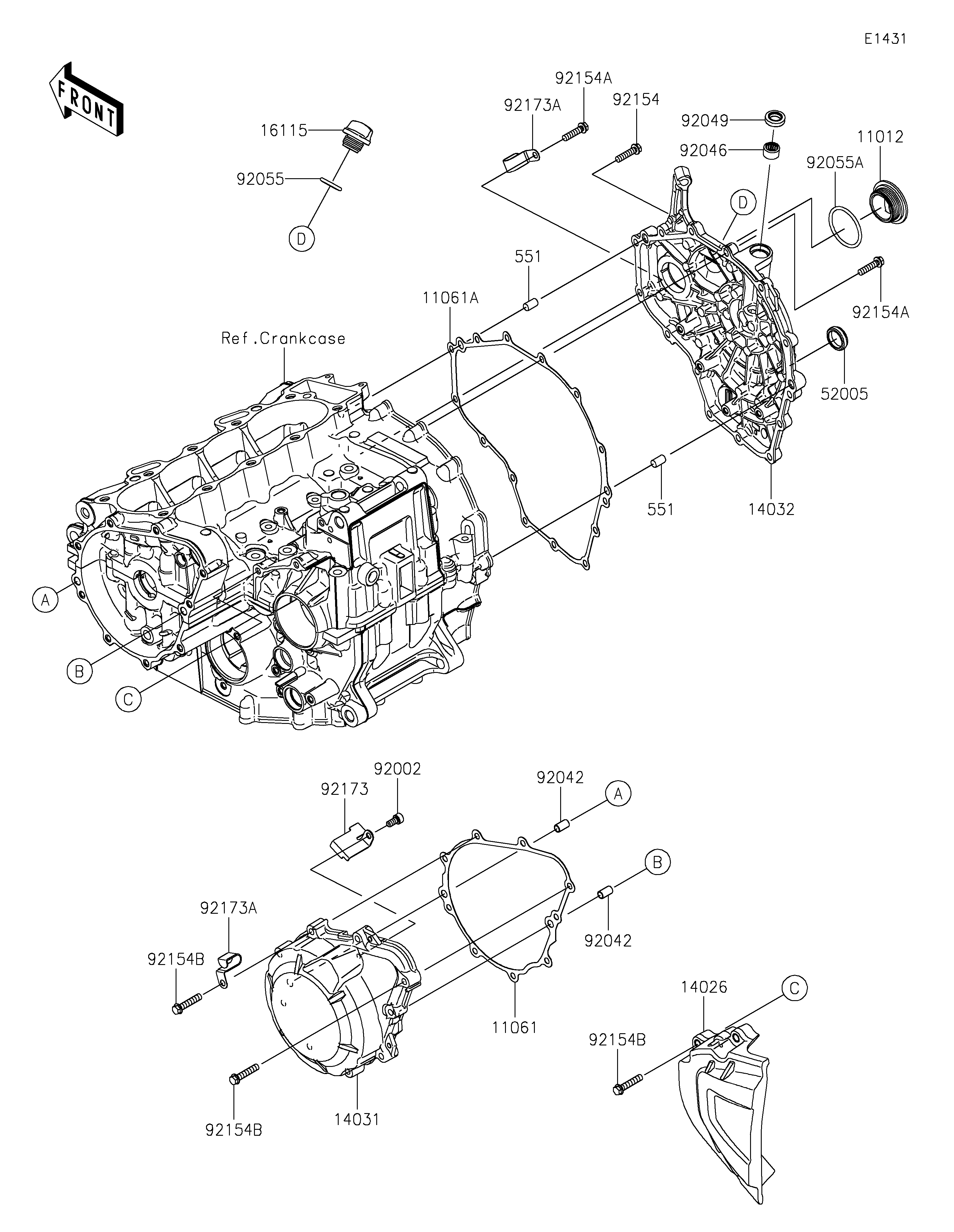

2023 Ninja® ZX-4RR - Engine Cover(s)

DOWNLOAD PDF
SELECT A NEW PART
11012
11061
11061A
14026
14031
14032
16115
52005
92002
92042
92042
92046
92049
92055
92055A
92154
92154A
92154A
92154B
92154B
92154B
92173
92173A
92173A
551
551
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP 11012 11012-1362 1
GASKET,GENERATOR COVER 11061 11061-1326 1
GASKET,CLUTCH COVER 11061A 11061-1327 1
COVER-CHAIN 14026 14026-0158 1
COVER-GENERATOR 14031 14031-0637 1
COVER-CLUTCH 14032 14032-0661 1
CAP-OIL FILLER 16115 16115-1053 1
GAUGE,OIL LEVEL 52005 52005-1009 1
BOLT,SOCKET,6X12 92002 92002-1796 1
PIN,DOWEL,6.3X8X14 92042 92042-007 2
BEARING-NEEDLE,HK1210FM 92046 92046-0034 1
SEAL-OIL 92049 92049-1560 1
RING-O 92055 92055-012 1
RING-O,39.4X3.1 92055A 92055-0734 1
BOLT,FLANGED,6X25 92154 92154-2734 1
BOLT,FLANGED,6X25 92154A 92154-7030 13
BOLT,FLANGED,6X30 92154B 92154-7032 12
CLAMP 92173 92173-2112 1
CLAMP 92173A 92173-2588 2
PIN-DOWEL,8X14 551 551A0814 2
