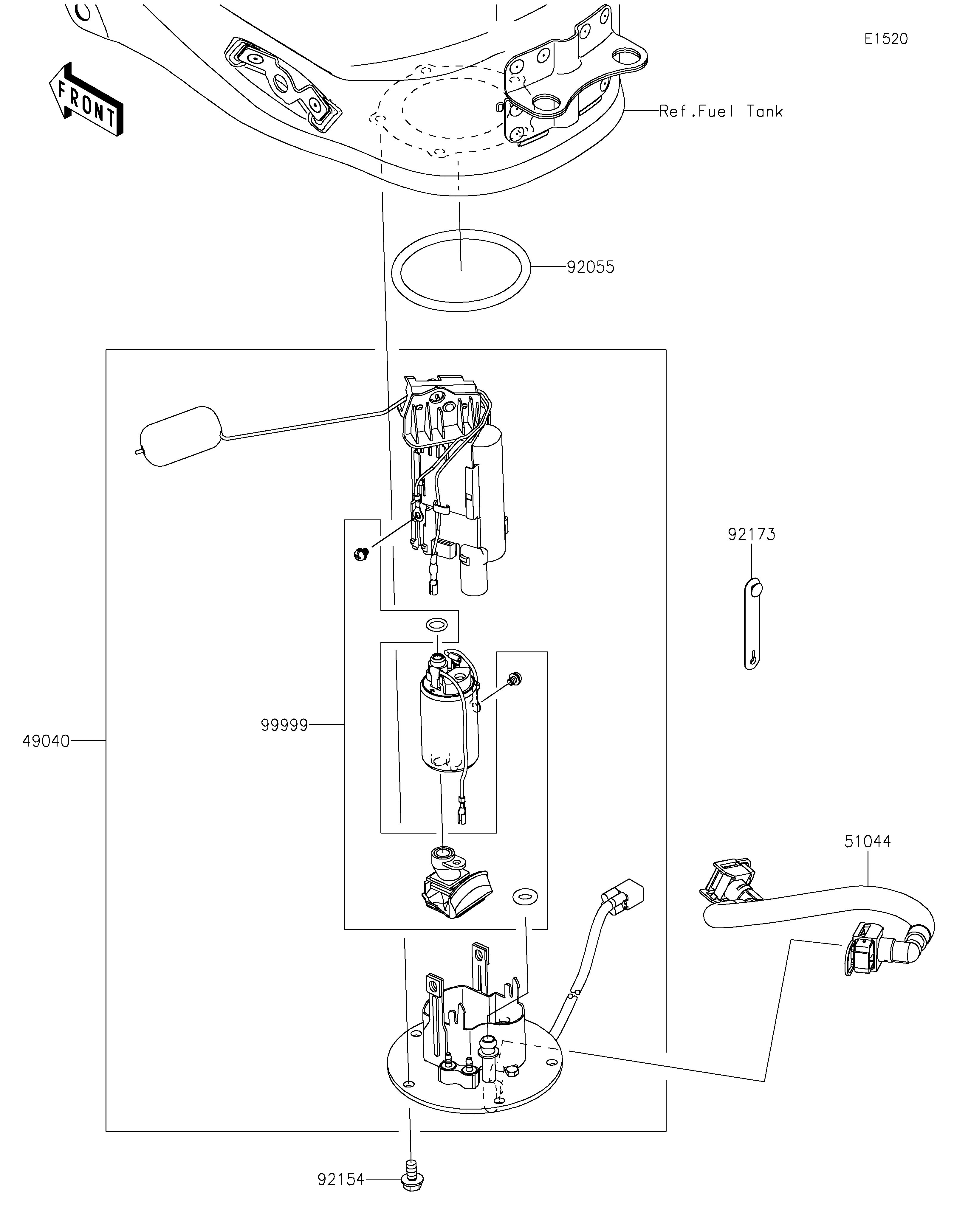

49040
51044
92055
92154
92173
99999
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PUMP-FUEL 49040 49040-0788 1
TUBE-ASSY 51044 51044-1242 1
RING-O,74.6X5.7 92055 92055-0728 1
BOLT,FLANGED,6X12 92154 92154-2335 5
CLAMP 92173 92173-2199 1
KIT,FUEL FILTER 99999 99999-0525 1
