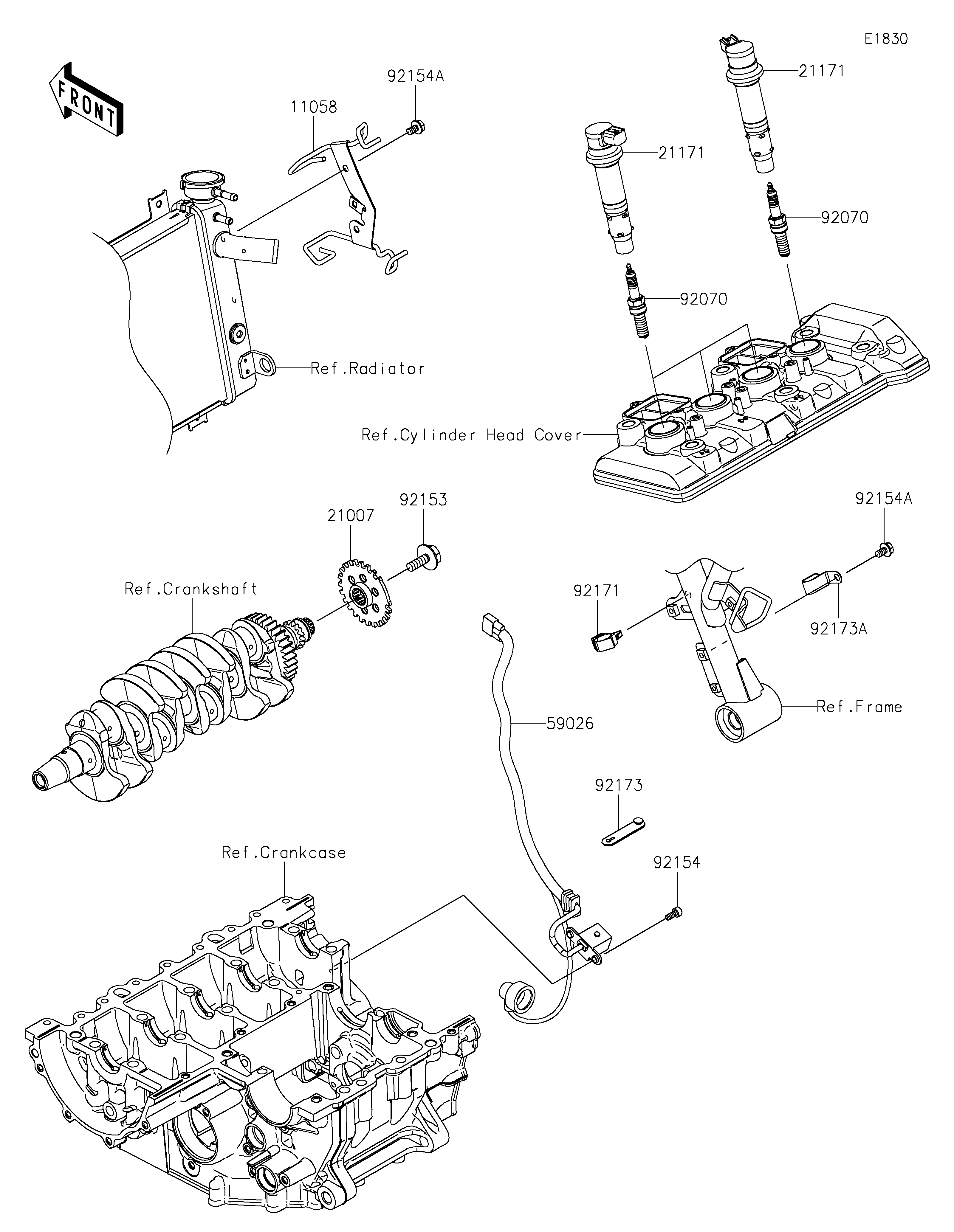

11058
21007
21171
21171
59026
92070
92070
92153
92154
92154A
92154A
92171
92173
92173A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET 11058 11058-0576 1
ROTOR,15T 21007 21007-0686 1
COIL-ASSY-IGNITION 21171 21171-0732 4
COIL-PULSING 59026 59026-0561 1
PLUG-SPARK,LMAR9G(NGK) 92070 92070-0716 4
BOLT,FLANGED,8X23 92153 92153-0549 1
BOLT,SOCKET,5X12 92154 92154-0503 2
BOLT,FLANGED,6X10 92154A 92154-2939 3
CLAMP,BRAKE HOSE 92171 92171-0316 1
CLAMP 92173 92173-2198 1
CLAMP 92173A 92173-2588 1
