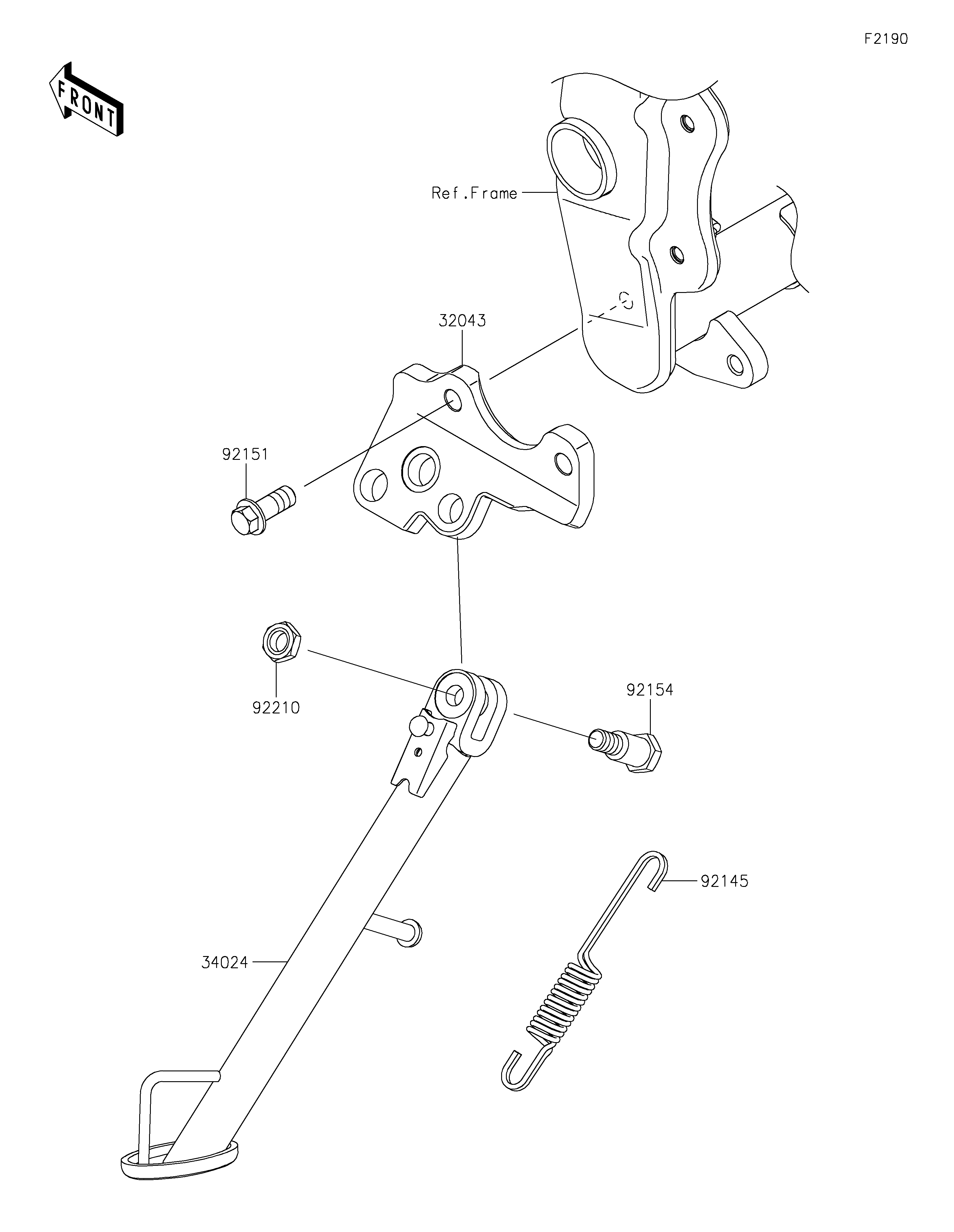

32043
34024
92145
92151
92154
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET-STAND 32043 32043-0668 1
STAND-SIDE 34024 34024-0138 1
SPRING,SIDE STAND 92145 92145-0804 1
BOLT,FLANGED,10X25 92151 92151-1802 2
BOLT,10X35.5 92154 92154-1023 1
NUT,LOCK,10MM 92210 92210-0784 1
