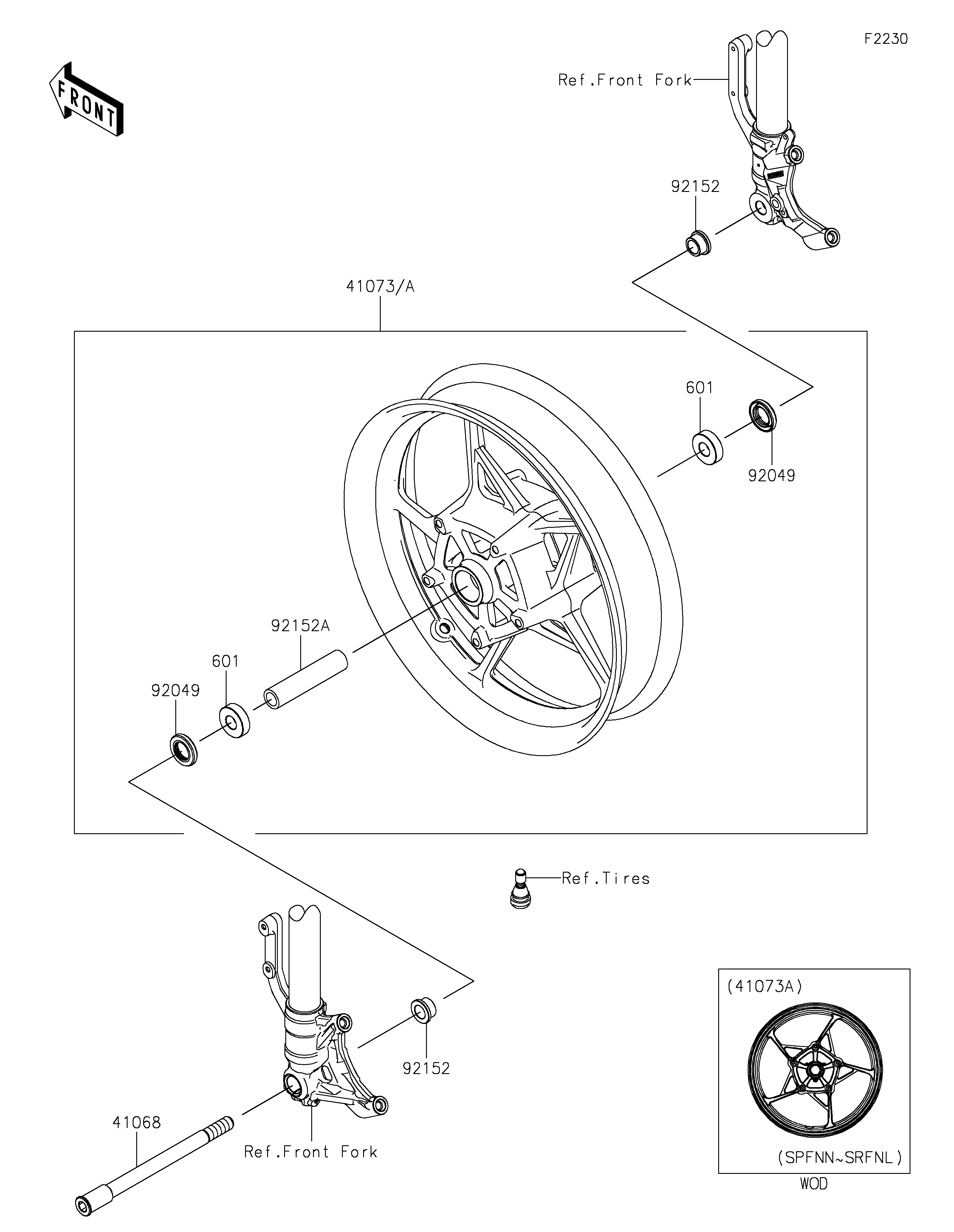

41068
41073A
92049
92049
92152
92152
92152A
601
601
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
AXLE,FR 41068 41068-0651 1
WHEEL-ASSY,FR,G.BLACK 41073A 41073-0832-QT 1
SEAL-OIL,23X40X7 92049 92049-0801 2
COLLAR,17X30X15.5 92152 92152-2386 2
COLLAR,17.2X25X115 92152A 92152-2875 1
BEARING-BALL,#6203UUC3 601 601B6203UU 2
