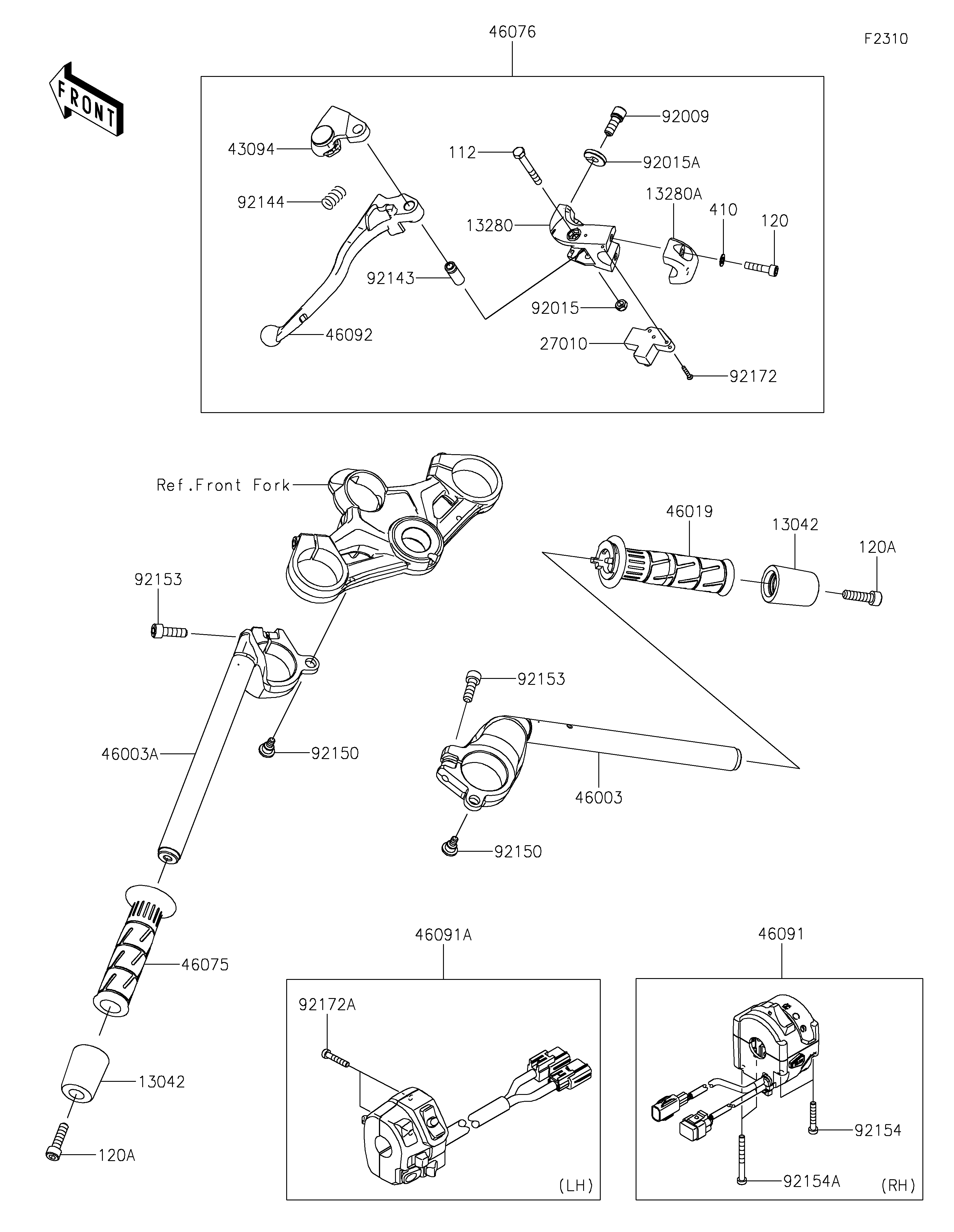

2023 Ninja® ZX-4RR - Handlebar

DOWNLOAD PDF
SELECT A NEW PART
13042
13042
13280
13280A
27010
43094
46003
46003A
46019
46075
46076
46091
46091A
46092
92009
92015
92015A
92143
92144
92150
92150
92153
92153
92154
92154A
92172
92172A
112
120
120A
120A
410
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
WEIGHT,HANDLE 13042 13042-5040 2
HOLDER,CLUTCH LEVER 13280 13280-0306 1
HOLDER,CLUTCH LEVER 13280A 13280-0319 1
SWITCH,CLUTCH 27010 27010-0933 1
ADJUSTER 43094 43094-0013 1
HANDLE,RH 46003 46003-0762 1
HANDLE,LH 46003A 46003-0822 1
GRIP-ASSY,THROTTLE 46019 46019-0100 1
GRIP,HANDLE,LH 46075 46075-0564 1
LEVER-ASSY-GRIP,CLUTCH 46076 46076-0174 1
HOUSING-ASSY-CONTROL,RH 46091 46091-0586 1
HOUSING-ASSY-CONTROL,LH 46091A 46091-0587 1
LEVER-GRIP,CLUTCH 46092 46092-0578 1
SCREW,CABLE ADJUST,8MM,BLACK 92009 92009-1134 1
NUT,LOCK,6MM,BLACK 92015 92015-1191 1
NUT,CABLE ADJUST LOCK,8MM,BLK 92015A 92015-1197 1
COLLAR 92143 92143-1379 1
SPRING 92144 92144-1467 1
BOLT,6MM 92150 92150-1090 2
BOLT,SOCKET,8X25 92153 92153-1625 2
BOLT,5X30 92154 92154-3921 2
BOLT,5X50 92154A 92154-3922 2
SCREW,3X16 92172 92172-0183 2
SCREW-PAN-CROS,5X25 92172A 92172-1140 2
BOLT-UPSET,6X45 112 112BB0645 1
BOLT-SOCKET,6X25 120 120CB0625 2
BOLT-SOCKET,8X30 120A 120CB0830 2
WASHER-PLAIN-SMALL,6MM 410 410AB0600 2
