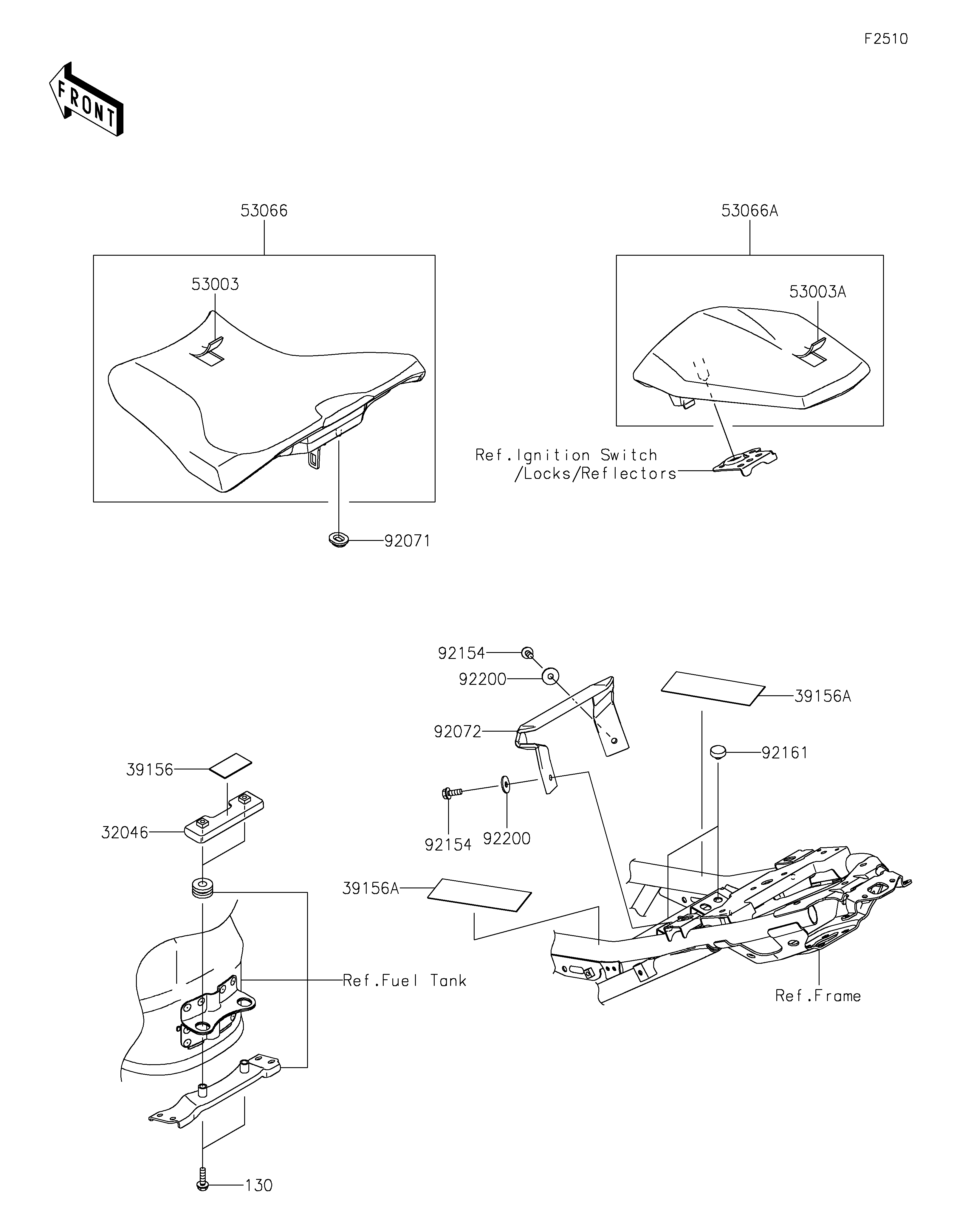

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET-SEAT 32046 32046-0453 1
PAD,45X26X1 39156 39156-2607 1
PAD,130X35X1 39156A 39156-2835 2
LEATHER,FR SEAT,BLACK 53003 53003-0531-MA 1
LEATHER,RR SEAT,BLACK 53003A 53003-0537-MA 1
SEAT-ASSY,FR,BLACK 53066 53066-0670-MA 1
SEAT-ASSY,RR,BLACK 53066A 53066-0671-MA 1
GROMMET,20X24X7.5 92071 92071-0766 1
BAND,SEAT,BLACK 92072 92072-0861-MA 1
BOLT,FLANGED,6X16 92154 92154-2900 2
DAMPER,9.5X18X6 92161 92161-1473 2
WASHER,6.5X20X1.6 92200 92200-1962 2
BOLT-FLANGED,6X22 130 130CA0622 2
