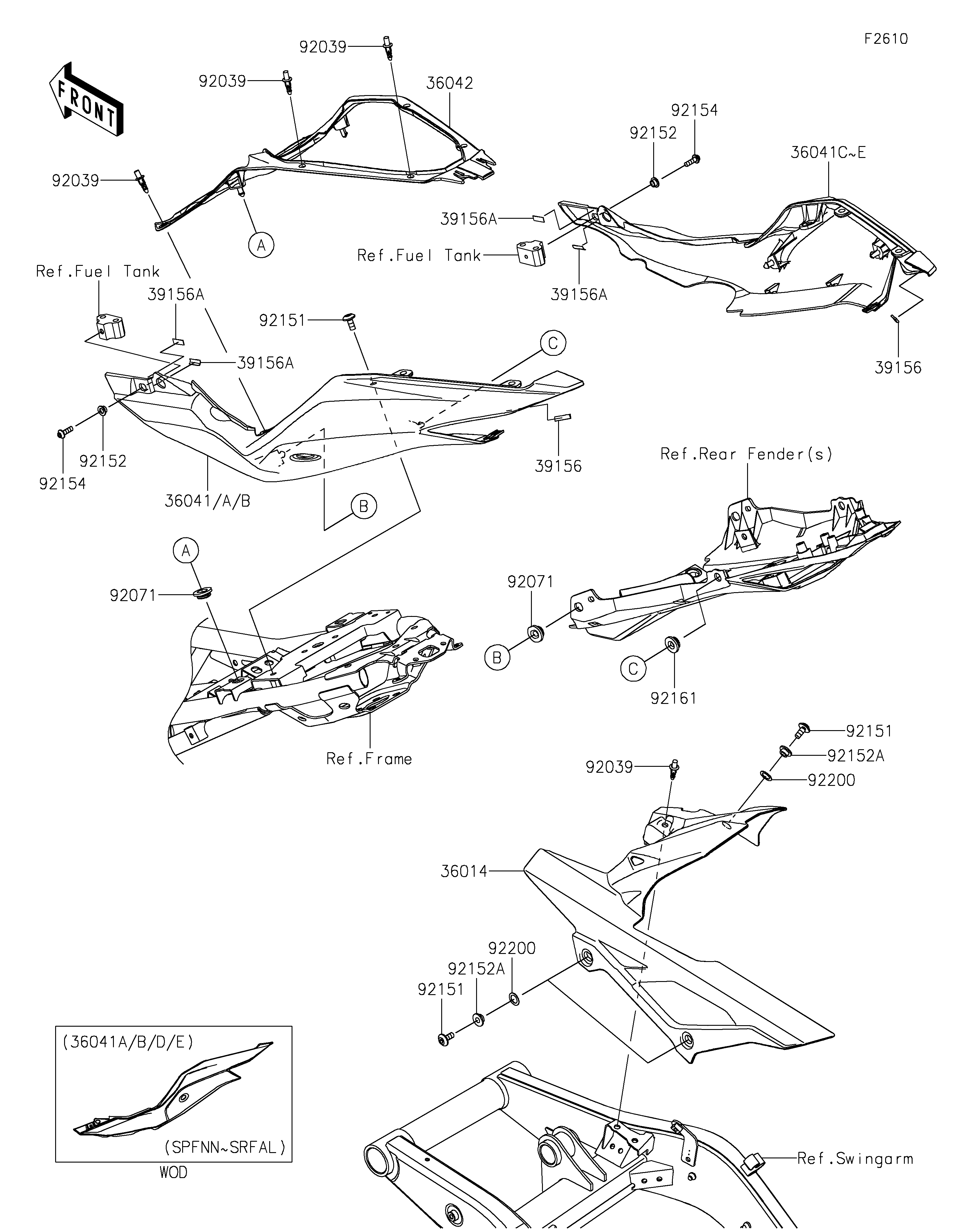

2023 Ninja® ZX-4RR - Side Covers/Chain Cover
36014
36041B
36041E
36042
39156
39156
39156A
39156A
39156A
39156A
92039
92039
92039
92039
92071
92071
92151
92151
92151
92152
92152
92152A
92152A
92154
92154
92161
92200
92200
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CASE-CHAIN | 36014 | 36014-0573 | 1 | ||
| COVER-TAIL,LH,L.GREEN | 36041B | 36041-0054-777 | 1 | ||
| COVER-TAIL,RH,L.GREEN | 36041E | 36041-0055-777 | 1 | ||
| COVER-TAIL,CNT | 36042 | 36042-0012 | 1 | ||
| PAD,5X20X2 | 39156 | 39156-2117 | 2 | ||
| PAD,18X6X0.41 | 39156A | 39156-2688 | 4 | ||
| RIVET | 92039 | 92039-0709 | 7 | ||
| GROMMET,20X24X7.5 | 92071 | 92071-0766 | 4 | ||
| BOLT,SOCKET,6X14 | 92151 | 92151-1654 | 5 | ||
| COLLAR,5.6X8X5 | 92152 | 92152-2339 | 2 | ||
| COLLAR,6.5X10X5.9 | 92152A | 92152-2486 | 3 | ||
| BOLT,SOCKET,5X16 | 92154 | 92154-4294 | 2 | ||
| DAMPER | 92161 | 92161-1531 | 2 | ||
| WASHER,10.4X15.9X0.5 | 92200 | 92200-2525 | 3 |
| CASE-CHAIN | |
| REF # | 36014 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-TAIL,LH,L.GREEN | |
| REF # | 36041B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-TAIL,RH,L.GREEN | |
| REF # | 36041E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-TAIL,CNT | |
| REF # | 36042 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PAD,5X20X2 | |
| REF # | 39156 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PAD,18X6X0.41 | |
| REF # | 39156A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| RIVET | |
| REF # | 92039 |
|---|---|
| PART NUMBER | |
| QUANTITY | 7 |
| DESTINATION | |
| REMARKS | |
| GROMMET,20X24X7.5 | |
| REF # | 92071 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,6X14 | |
| REF # | 92151 |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | |
| COLLAR,5.6X8X5 | |
| REF # | 92152 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR,6.5X10X5.9 | |
| REF # | 92152A |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,5X16 | |
| REF # | 92154 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92161 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER,10.4X15.9X0.5 | |
| REF # | 92200 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
