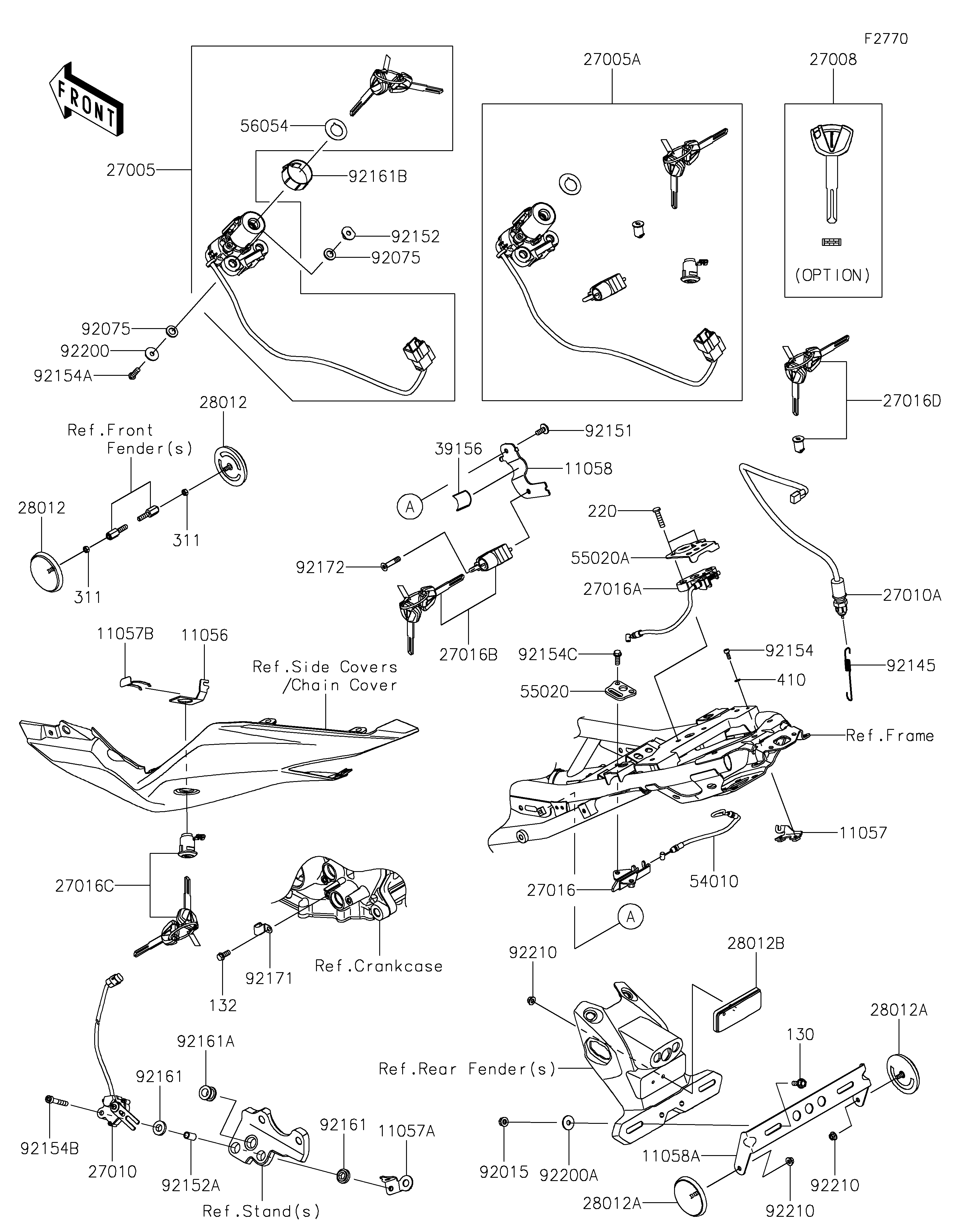

2023 Ninja® ZX-4RR - Ignition Switch/Locks/Reflectors

DOWNLOAD PDF
SELECT A NEW PART
11056
11056
11057
11057
11057A
11057A
11057B
11057B
11058
11058
11058A
11058A
27005
27005
27005A
27005A
27008
27008
27010
27010
27010A
27010A
27016
27016
27016A
27016A
27016B
27016B
27016C
27016C
27016D
27016D
28012
28012
28012
28012
28012A
28012A
28012A
28012A
28012B
28012B
39156
39156
54010
54010
55020
55020
55020A
55020A
56054
56054
92015
92015
92075
92075
92075
92075
92145
92145
92151
92151
92152
92152
92152A
92152A
92154
92154
92154A
92154A
92154B
92154B
92154C
92154C
92161
92161
92161
92161
92161A
92161A
92161B
92161B
92171
92171
92172
92172
92200
92200
92200A
92200A
92210
92210
92210
92210
92210
92210
130
130
132
132
220
220
311
311
311
311
410
410
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,SEAT LOCK 11056 11056-2119 1
BRACKET,SEAT LOCK CABLE 11057 11057-3928 1
BRACKET,SIDE STAND SWITCH 11057A 11057-7089 1
BRACKET,SEAT LOCK,UPP 11057B 11057-7740 1
BRACKET,HELMET-LOCK 11058 11058-0256 1
BRACKET,RR SIDE REFLECTOR 11058A 11058-0625 1
SWITCH-ASSY-IGNITION 27005 27005-0725 1
SWITCH-ASSY-IGNITION 27005A 27005-5197 1
KEY-LOCK,BLANK 27008 27008-0662 1 (OPTION)
SWITCH,SIDE STAND 27010 27010-0097 1
SWITCH,STOP 27010A 27010-0863 1
LOCK-ASSY,SEAT STRIKER 27016 27016-0008 1
LOCK-ASSY,SEAT STRIKER 27016A 27016-0093 1
LOCK-ASSY,HELMET 27016B 27016-5423 1
LOCK-ASSY,SEAT 27016C 27016-5424 1
LOCK-ASSY,TANK CAP 27016D 27016-5425 1
REFLECTOR-REFLEX,FR,SIDE 28012 28012-0001 2
REFLECTOR-REFLEX 28012A 28012-0002 2
REFLECTOR-REFLEX 28012B 28012-1077 1
PAD,25X33X1 39156 39156-2158 1
CABLE 54010 54010-0641 1
GUARD,SEAT STRIKER 55020 55020-2246 1
GUARD 55020A 55020-2404 1
MARK,IGNITION SWITCH 56054 56054-3854 1
NUT,FLANGED,6MM 92015 92015-1367 2
DAMPER 92075 92075-1564 4
SPRING,BRAKE LAMP SWITCH 92145 92145-0683 1
BOLT,SOCKET,6X14 92151 92151-1654 1
COLLAR,6X9X10.6 92152 92152-1971 2
COLLAR,6.5X9.5X17 92152A 92152-2274 1
BOLT,SOCKET,4X10 92154 92154-0039 2
BOLT,TORX,6X20 92154A 92154-0377 2
BOLT,SOCKET,6X40 92154B 92154-0505 1
BOLT,FLANGED-SMALL,6X16,TB2468 92154C 92154-3869 2
DAMPER 92161 92161-0117 2
DAMPER 92161A 92161-0118 1
DAMPER 92161B 92161-2336 1
CLAMP 92171 92171-0534 1
SCREW,HEXLOBE,6X30 92172 92172-1378 1
WASHER,6X20X1.6 92200 92200-0780 2
WASHER,6.5X20X1.6 92200A 92200-1962 2
NUT,FLANGED,5MM 92210 92210-0007 3
BOLT-FLANGED,6X16 130 130BA0616 2
BOLT-FLANGED-SMALL,6X14 132 132BC0614 1
SCREW-PAN-CROS,6X25 220 220AC0625 2
NUT-HEX,5MM 311 311AB0500 2
W-PLAIN-S,4MM 410 410AB0400 2
