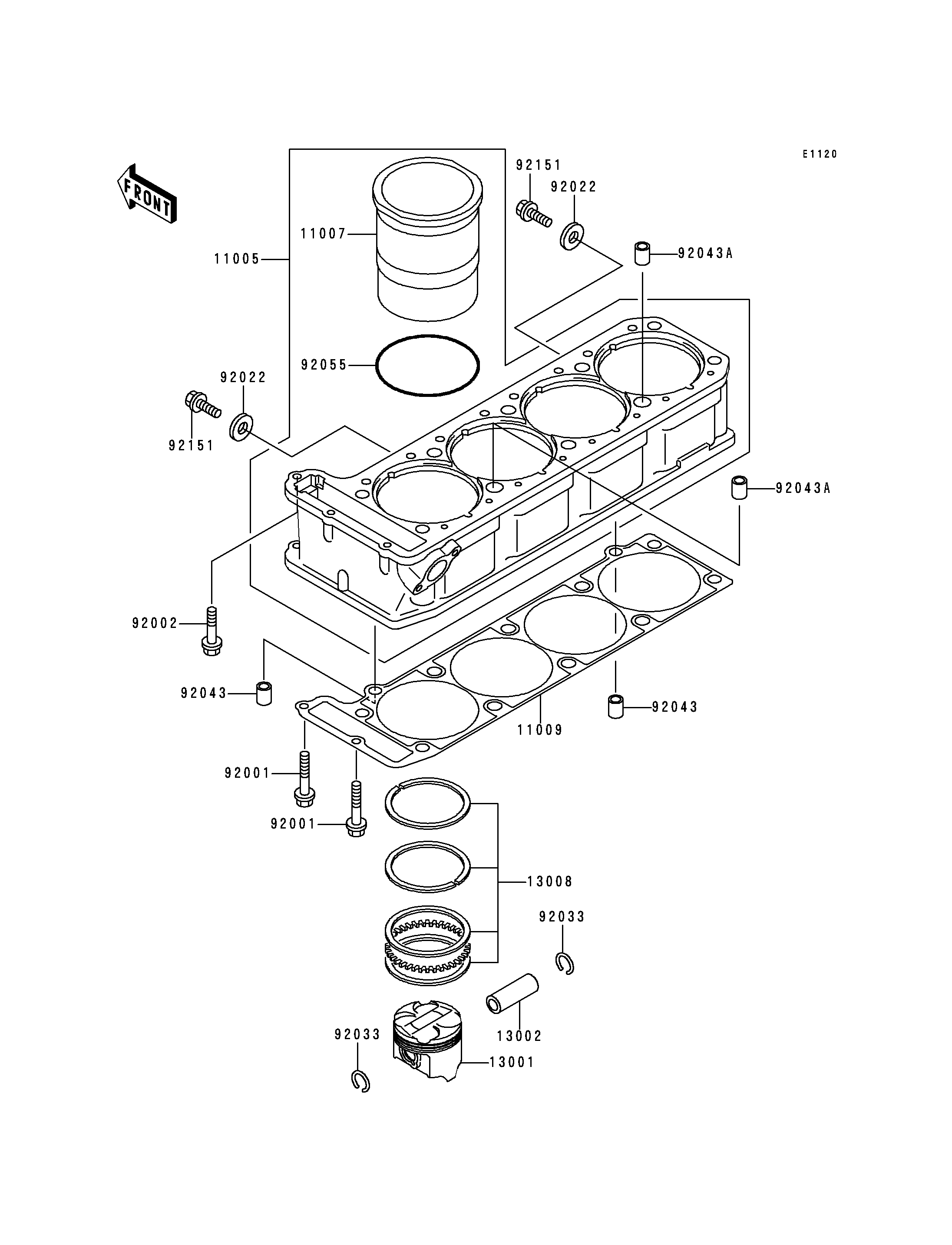

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CYLINDER-ENGINE 11005 11005-1615 1
LINER-CYLINDER 11007 11007-1114 4
GASKET,CYLINDER BASE 11009 11009-1847 1
PISTON-ENGINE 13001 13001-1398 4
PIN-PISTON 13002 13002-1058 4
RING-SET-PISTON 13008 13008-1152 4
BOLT,6X38 92001 92001-1899 2
BOLT,6X30 92002 92002-1138 1
WASHER,6.2X11X1 92022 92022-304 2
RING-SNAP,20.5X1.2 92033 92033-1099 8
PIN,8.2X10X14 92043 92043-1264 2
PIN,11.5X14X14 92043A 92043-1279 2
RING-O,82.6X2.4 92055 92055-1465 4
BOLT,6X10 92151 92151-1344 2
