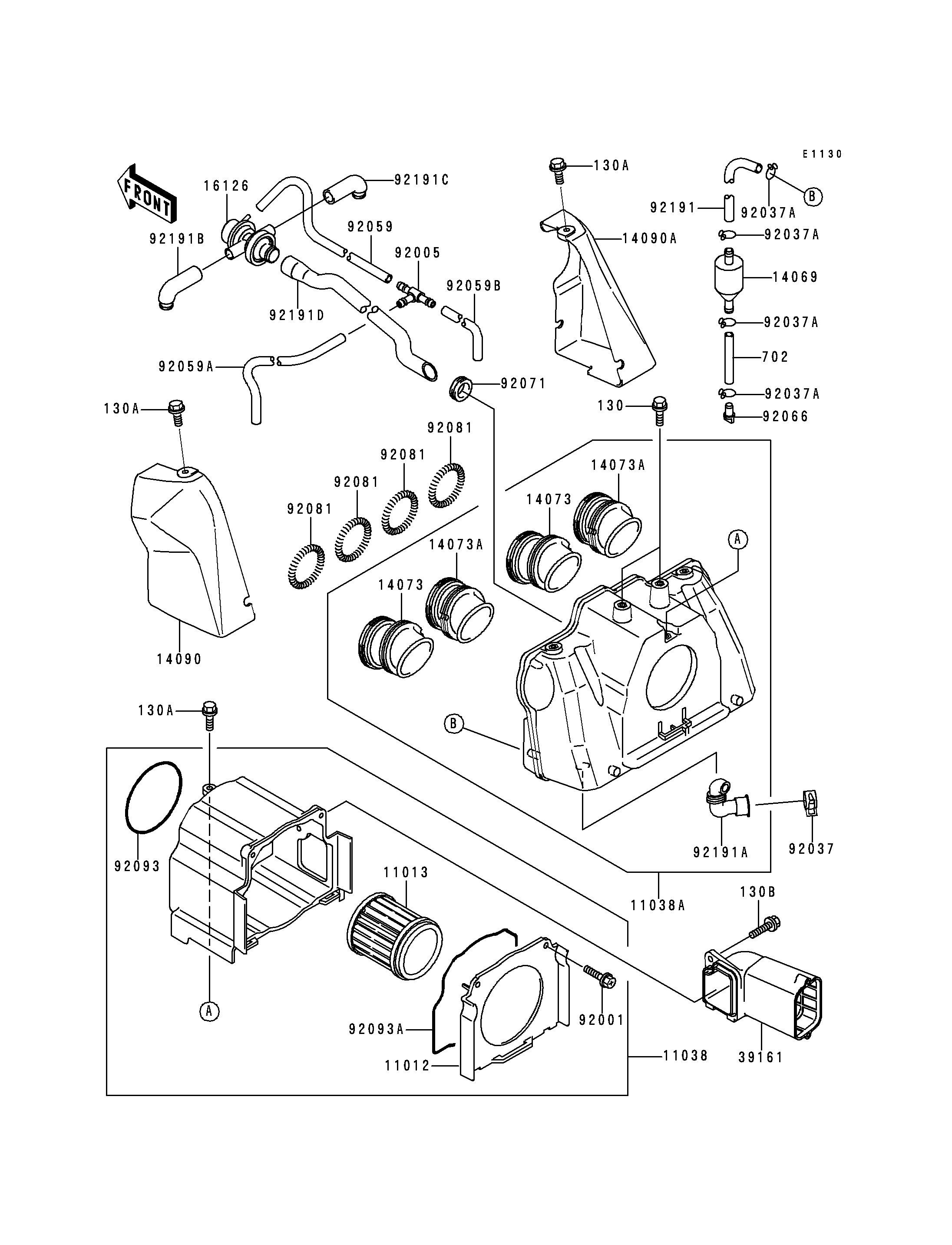

2000 ZRX1100 - Air Cleaner

DOWNLOAD PDF
SELECT A NEW PART
130
130A
130A
130A
130B
702
11012
11013
11038
11038A
14069
14073
14073
14073A
14073A
14090
14090A
16126
39161
92001
92005
92037
92037A
92037A
92037A
92037A
92059
92059A
92059B
92066
92071
92081
92081
92081
92081
92093
92093A
92191
92191A
92191B
92191C
92191D
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED 130 130J0610 2
BOLT-FLANGED,6X14,BLACK 130A 130J0614 3
BOLT-FLANGED 130B 130J0620 1
TUBE-RUBBER 702 702A0760 1
CAP,AIR FILTER 11012 11012-1987 1
ELEMENT-AIR FILTER 11013 11013-1235 1
CASE-ASSY-AIR FILTER,RR 11038 11038-1114 1
CASE-ASSY-AIR FILTER,FR 11038A 11038-1120 1
BREATHER 14069 14069-1051 1
DUCT,#1&#3 14073 14073-1685 2
DUCT,#2&#4 14073A 14073-1686 2
COVER,LH,M.F.C.GRAY 14090 14090-1789-3L 1
COVER,RH,M.F.C.GRAY 14090A 14090-1790-3L 1
VALVE,AIR SWITCH 16126 16126-1337 1
SILENCER-ASSY-INTAKE 39161 39161-1077 1
BOLT,6X20 92001 92001-1091 2
FITTING,TUBE,T-TYPE 92005 92005-1017 1
CLAMP 92037 92037-1460 1
CLAMP,TUBE 92037A 92037-147 4
TUBE,4X9X220 92059 92059-1040 1
TUBE,4X9X230 92059A 92059-1068 1
TUBE,4X9X80 92059B 92059-1365 1
PLUG,DRAIN 92066 92066-1211 1
GROMMET,AIR FILTER 92071 92071-1042 1
SPRING,COIL,BLACK 92081 92081-1457 4
SEAL,AIR FILTER 92093 92093-1338 1
SEAL,AIR FILTER 92093A 92093-1432 1
TUBE 92191 92191-1006 1
TUBE,DRAIN TUBE 92191A 92191-1124 1
TUBE,AIR SWITCH LH 92191B 92191-1125 1
TUBE,AIR SWITCH RH 92191C 92191-1126 1
TUBE,AIR SWITCH-AIR FILTER 92191D 92191-1127 1
