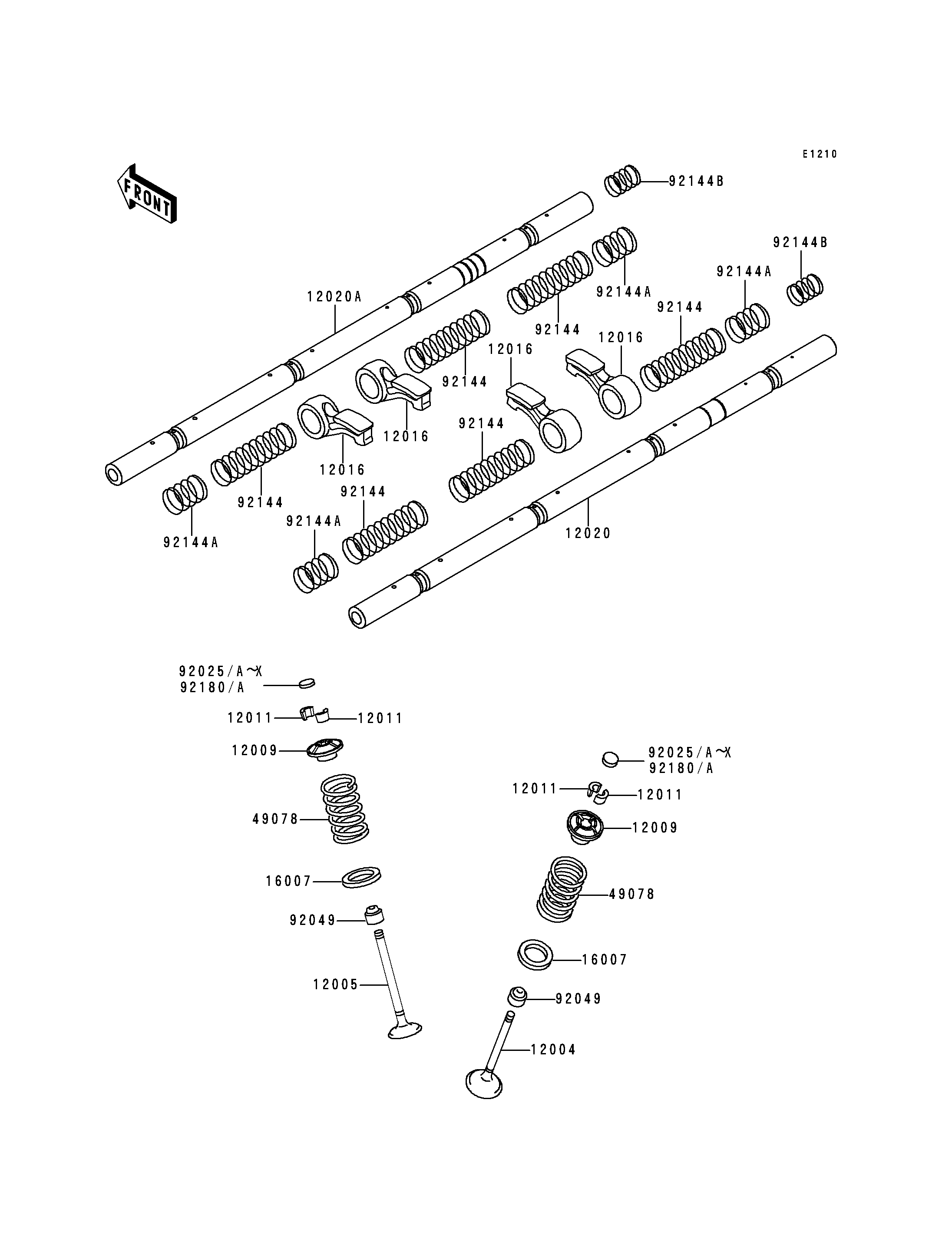

2000 ZRX1100 - Valve(s)

DOWNLOAD PDF
SELECT A NEW PART
12004
12005
12009
12009
12011
12011
12011
12011
12016
12016
12016
12016
12020
12020A
16007
16007
49078
49078
92025
92025
92025A
92025A
92025B
92025B
92025C
92025C
92025D
92025D
92025E
92025E
92025F
92025F
92025G
92025G
92025H
92025H
92025I
92025I
92025J
92025J
92025K
92025K
92025L
92025L
92025M
92025M
92025N
92025N
92025O
92025O
92025P
92025P
92025Q
92025Q
92025R
92025R
92025S
92025S
92025T
92025T
92025U
92025U
92025V
92025V
92025W
92025W
92025X
92025X
92049
92049
92144
92144
92144
92144
92144
92144
92144A
92144A
92144A
92144A
92144B
92144B
92180
92180
92180A
92180A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
VALVE-INTAKE 12004 12004-1115 8
VALVE-EXHAUST 12005 12005-1240 8
RETAINER-VALVE SPRING 12009 12009-1058 16
COLLET 12011 12011-1051 32
ARM-ROCKER 12016 12016-1105 16
SHAFT-ROCKER,INTAKE 12020 12020-1062 1
SHAFT-ROCKER,EXHAUST 12020A 12020-1063 1
SEAT-SPRING,17.5X23.8X0.5 16007 16007-1178 16
SPRING-ENGINE VALVE 49078 49078-1153 16
SHIM,T=2.00 92025 92025-1870 AR
SHIM,T=2.05 92025A 92025-1871 AR
SHIM,T=2.10 92025B 92025-1872 AR
SHIM,T=2.15 92025C 92025-1873 AR
SHIM,T=2.20 92025D 92025-1874 AR
SHIM,T=2.25 92025E 92025-1875 AR
SHIM,T=2.30 92025F 92025-1876 AR
SHIM,T=2.35 92025G 92025-1877 AR
SHIM,T=2.40 92025H 92025-1878 AR
SHIM,T=2.45 92025I 92025-1879 AR
SHIM,T=2.50 92025J 92025-1880 AR
SHIM,T=2.55 92025K 92025-1881 AR
SHIM,T=2.60 92025L 92025-1882 AR
SHIM,T=2.65 92025M 92025-1883 AR
SHIM,T=2.70 92025N 92025-1884 AR
SHIM,T=2.75 92025O 92025-1885 AR
SHIM,T=2.80 92025P 92025-1886 AR
SHIM,T=2.85 92025Q 92025-1887 AR
SHIM,T=2.90 92025R 92025-1888 AR
SHIM,T=2.95 92025S 92025-1889 AR
SHIM,T=3.00 92025T 92025-1890 AR
SHIM,T=2.425 92025U 92025-1982 AR
SHIM,T=2.475 92025V 92025-1983 AR
SHIM,T=2.525 92025W 92025-1984 AR
SHIM,T=2.575 92025X 92025-1985 AR
SEAL-OIL,VSB58.558 92049 92049-1218 16
SPRING,ROCKER ARM,LONG 92144 92144-1254 6
SPRING,ROCKER ARM,SHORT 92144A 92144-1255 4
SPRING 92144B 92144-1256 2
SHIM,T=2.375 92180 92180-1058 AR
SHIM,T=2.625 92180A 92180-1059 AR
