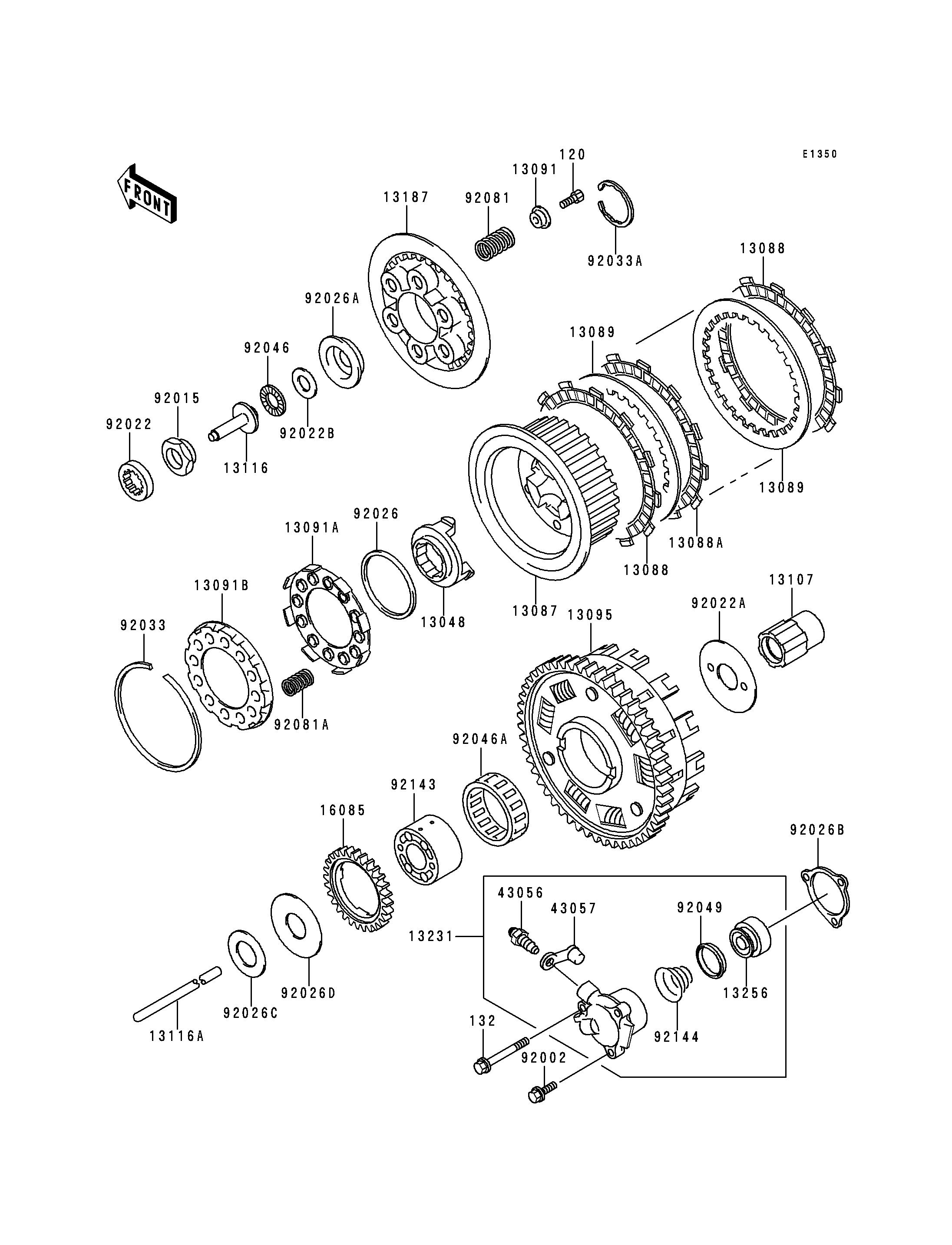

Parts Diagrams |
120
132
13048
13087
13088
13088
13088A
13089
13089
13091
13091A
13091B
13095
13107
13116
13116A
13187
13231
13256
16085
43056
43057
92002
92015
92022
92022A
92022B
92026
92026A
92026B
92026C
92026D
92033
92033A
92046
92046A
92049
92081
92081A
92143
92144
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-SOCKET,6X16 | 120 | 120Q0616 | 6 | ||
BOLT-FLANGED-SMALL | 132 | 132J0680 | 1 | ||
CAM-DAMPER | 13048 | 13048-1007 | 1 | ||
HUB-CLUTCH | 13087 | 13087-1171 | 1 | ||
PLATE-FRICTION | 13088 | 13088-040 | 2 | ||
PLATE-FRICTION | 13088A | 13088-1087 | 7 | ||
PLATE-CLUTCH,T=2.3 | 13089 | 13089-1004 | 8 | ||
HOLDER,CLUTCH SPRING | 13091 | 13091-1041 | 6 | ||
HOLDER,DAMPER SPRING,RH | 13091A | 13091-1042 | 1 | ||
HOLDER,DAMPER SPRING,LH | 13091B | 13091-1043 | 1 | ||
HOUSING-COMP-CLUTCH | 13095 | 13095-1356 | 1 | ||
SHAFT,CLUTCH | 13107 | 13107-1299 | 1 | ||
ROD-PUSH,CLUTCH | 13116 | 13116-1102 | 1 | ||
ROD-PUSH,CLUTCH | 13116A | 13116-1140 | 1 | ||
PLATE-CLUTCH OPERATING | 13187 | 13187-1082 | 1 | ||
RELEASE-ASSY-CLUTCH | 13231 | 13231-1072 | 1 | ||
PISTON | 13256 | 13256-1052 | 1 | ||
GEAR,OIL PUMP,37T | 16085 | 16085-1235 | 1 | ||
BREATHER-BRAKE | 43056 | 43056-1052 | 1 | ||
CAP-BREATHER | 43057 | 43057-1001 | 1 | ||
BOLT,6X25 | 92002 | 92002-1344 | 2 | ||
NUT,20MM | 92015 | 92015-1555 | 1 | ||
WASHER,TOOTHED,25X40X5 | 92022 | 92022-1114 | 1 | ||
WASHER,CLUTCH THRUST | 92022A | 92022-1221 | 1 | ||
WASHER,15.1X29X1.0 | 92022B | 92022-1463 | 1 | ||
SPACER,59X70X3.5 | 92026 | 92026-1043 | 1 | ||
SPACER,CLUTCH | 92026A | 92026-1202 | 1 | ||
SPACER,CLUTCH RELEASE | 92026B | 92026-1263 | 1 | ||
SPACER,25X45X2.0 | 92026C | 92026-1306 | 1 | ||
SPACER,25X62X2.0 | 92026D | 92026-1307 | 1 | ||
RING-SNAP | 92033 | 92033-1029 | 1 | ||
RING-SNAP,50MM | 92033A | 92033-1177 | 1 | ||
BEARING-NEEDLE,AXK1102 | 92046 | 92046-1052 | 1 | ||
BEARING-NEEDLE,K550X62X18 | 92046A | 92046-1200 | 1 | ||
SEAL-OIL,PISTON | 92049 | 92049-1165 | 1 | ||
SPRING,CLUTCH | 92081 | 92081-1114 | 6 | ||
SPRING,CLUTCH DAMPER | 92081A | 92081-1115 | 12 | ||
COLLAR,CLUTCH | 92143 | 92143-1429 | 1 | ||
SPRING,CLUTCH RELEASE | 92144 | 92144-1084 | 1 |
