Parts Diagrams

customer service agent speaking with a customer

Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.

Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.

92001
92001
92001
92002
92002A
92002B
92002B
92002C
92150
92150A
92150A
92150B
92150C
92200
92200A

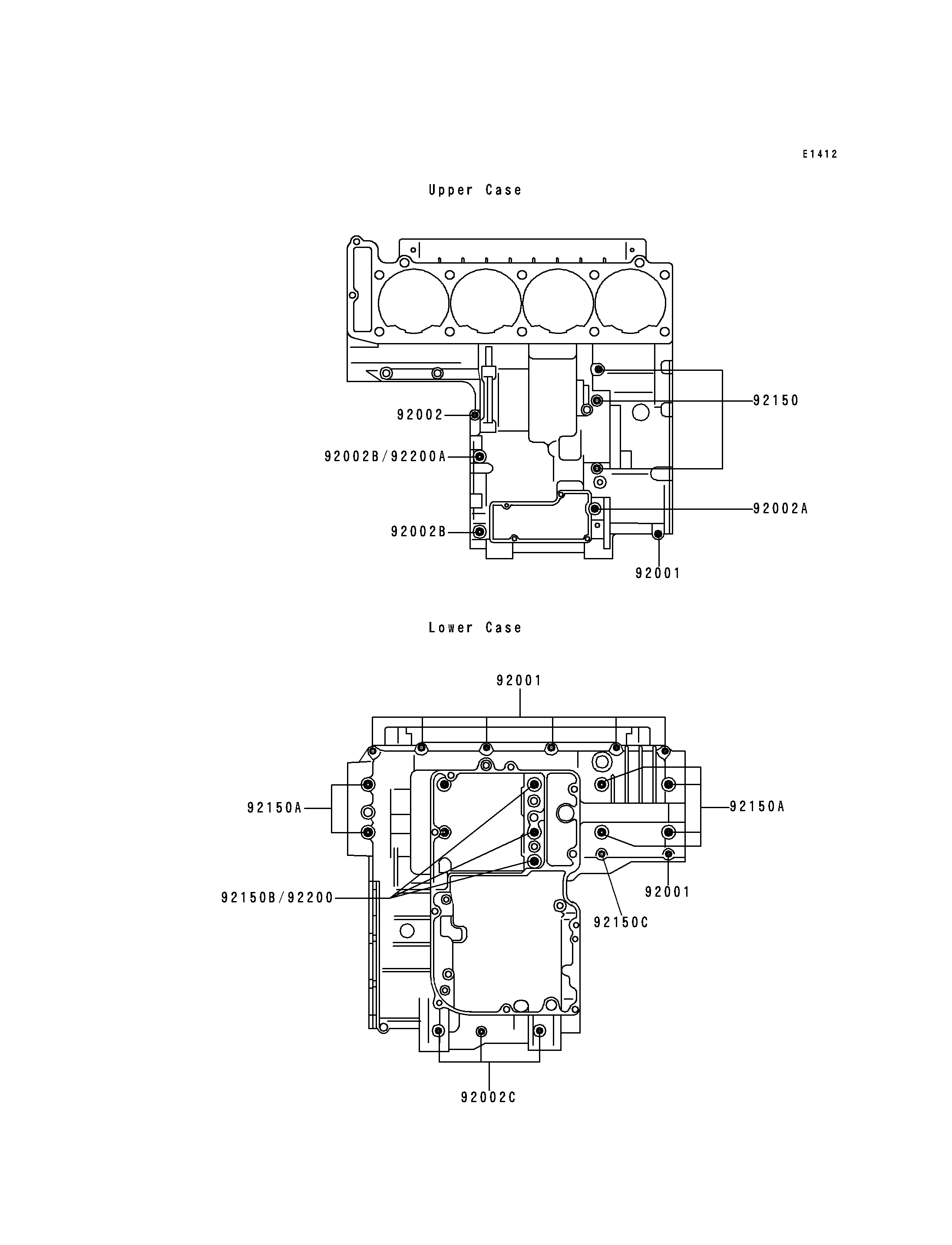

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT,6X38 92001 92001-1899 8
BOLT,6X55 92002 92002-1054 1
BOLT,6X85 92002A 92002-1306 1
BOLT,8X63 92002B 92002-1308 2
BOLT,6X120 92002C 92002-1654 3
BOLT,6X115 92150 92150-1140 3
BOLT,9X90 92150A 92150-1364 6
BOLT,9X140 92150B 92150-1365 3
BOLT,7X38 92150C 92150-1367 1
WASHER,9.5X18X1.2 92200 92200-1037 3
WASHER,8.5X16X1.2 92200A 92200-1063 1
