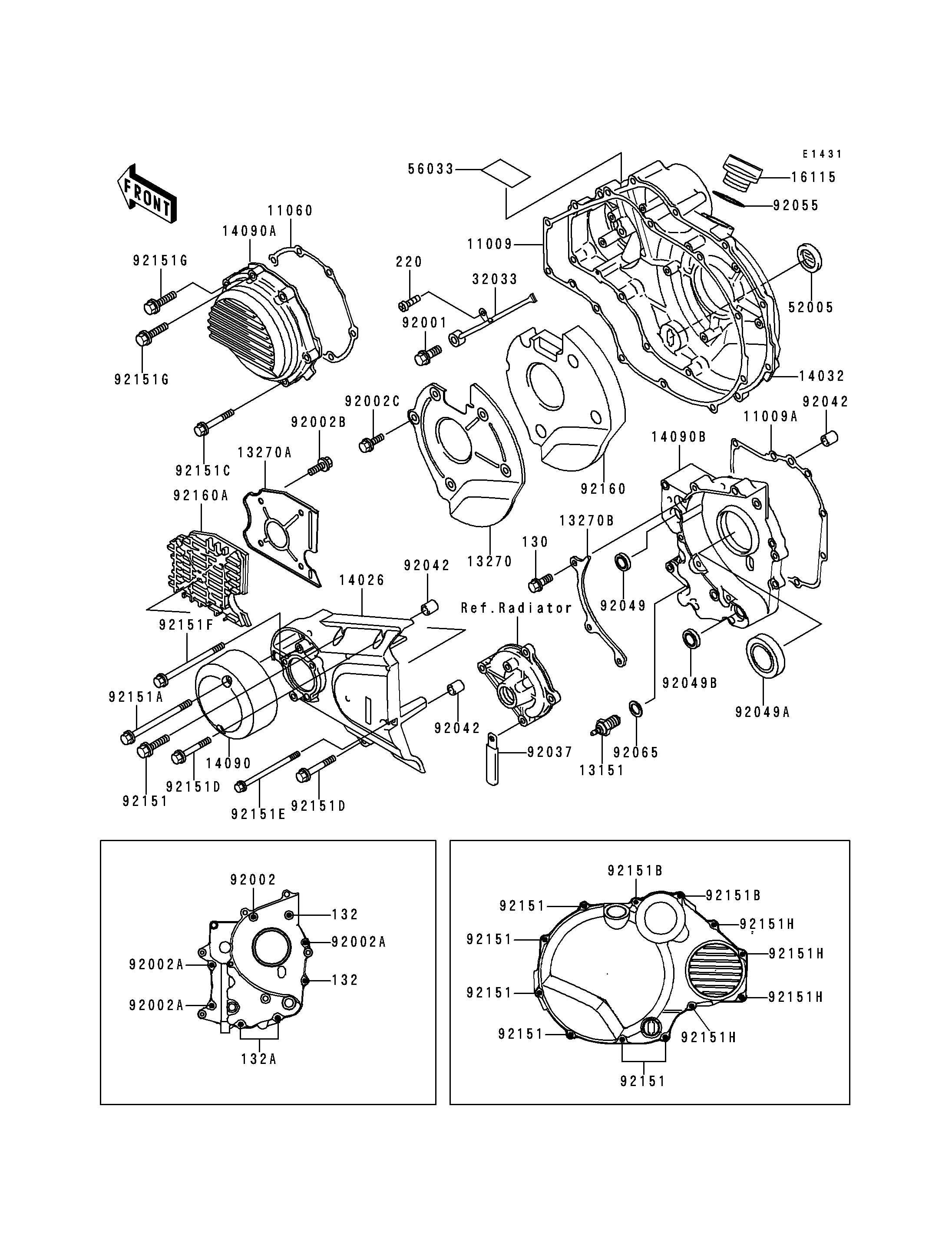

2000 ZRX1100 - Engine Cover(s)

DOWNLOAD PDF
SELECT A NEW PART
130
130
11009
11009
11009A
11009A
11060
11060
13151
13151
13270
13270
13270A
13270A
13270B
13270B
14026
14026
14032
14032
14090
14090
14090A
14090A
14090B
14090B
16115
16115
32033
32033
52005
52005
56033
56033
92001
92001
92002
92002
92002A
92002A
92002A
92002A
92002A
92002A
92002B
92002B
92002C
92002C
92037
92037
92042
92042
92042
92042
92042
92042
92049
92049
92049A
92049A
92049B
92049B
92055
92055
92065
92065
92151
92151
92151
92151
92151
92151
92151
92151
92151
92151
92151
92151
92151A
92151A
92151B
92151B
92151B
92151B
92151C
92151C
92151D
92151D
92151D
92151D
92151E
92151E
92151F
92151F
92151G
92151G
92151G
92151G
92151H
92151H
92151H
92151H
92151H
92151H
92151H
92151H
92160
92160
92160A
92160A
132
132
132
132
132A
132A
220
220
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED 130 130S0614 3
GASKET,CLUTCH COVER 11009 11009-1860 1
GASKET,TRANSMISSION COVER 11009A 11009-1982 1
GASKET,PULSING COVER 11060 11060-1695 1
SWITCH-COMP,NEUTRAL 13151 13151-1080 1
PLATE 13270 13270-1765 1
PLATE 13270A 13270-1771 1
PLATE,TRANSMISSION 13270B 13270-1911 1
COVER-CHAIN 14026 14026-1249 1
COVER-CLUTCH 14032 14032-1457 1
COVER,RELEASE 14090 14090-1777 1
COVER,PULSING 14090A 14090-1786 1
COVER,TRANSMISSION 14090B 14090-1877 1
CAP-OIL FILLER 16115 16115-1009 1
PIPE,CLUTCH COVER 32033 32033-1204 1
GAUGE,OIL LEVEL 52005 52005-1009 1
LABEL-MANUAL,OIL CAPACITY 56033 56033-1073 1
BOLT,BANJO,8X20 92001 92001-1855 1
BOLT,6X20 92002 92002-1343 1
BOLT,6X25 92002A 92002-1344 3
BOLT,6X10 92002B 92002-1449 4
BOLT,6X10 92002C 92002-1541 5
CLAMP,WIRING HARNESS,L=60 92037 92037-1069 1
PIN,DOWEL,6.3X8X14 92042 92042-007 4
SEAL-OIL,SD-8187 92049 92049-1017 1
SEAL-OIL,AE2343F0 92049A 92049-1070 1
SEAL-OIL,TB13205 92049B 92049-1186 1
RING-O,31.5X2.6 92055 92055-049 1
GASKET,10.5X16X1,DRAIN PLUG 92065 92065-058 1
BOLT,6X25 92151 92151-1130 7
BOLT,6X40 92151A 92151-1131 2
BOLT,6X55 92151B 92151-1132 2
BOLT,6X30 92151C 92151-1134 5
BOLT,6X35 92151D 92151-1135 2
BOLT,6X65 92151E 92151-1199 1
BOLT,6X80 92151F 92151-1200 1
BOLT,6X30 92151G 92151-1201 2
BOLT,6X40 92151H 92151-1202 4
DAMPER 92160 92160-1812 1
DAMPER 92160A 92160-1819 1
BOLT-FLANGED-SMALL 132 132J0620 2
BOLT-FLANGED-SMALL 132A 132J0650 2
SCREW-PAN-CROS 220 220B0510 1
