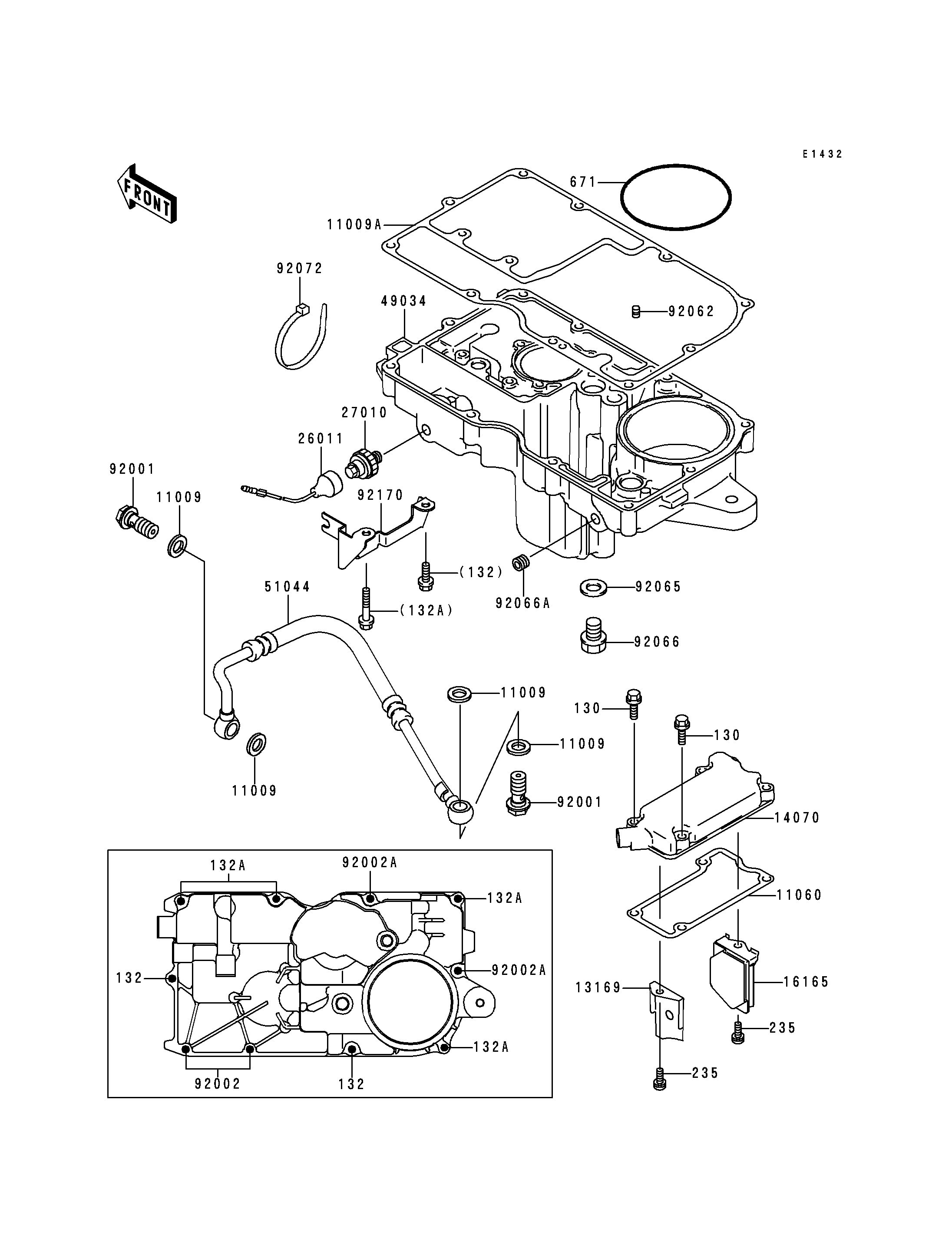

1999 ZRX1100 - Breather Cover/Oil Pan

DOWNLOAD PDF
SELECT A NEW PART
130
130
132
132
132A
132A
132A
235
235
671
11009
11009
11009
11009
11009A
11060
13169
14070
16165
26011
27010
49034
51044
92001
92001
92002
92002A
92002A
92062
92065
92066
92066A
92072
92170
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X25 130 130P0625 4
BOLT-FLANGED-SMALL 132 132J0625 2
BOLT-FLANGED-SMALL,6X40 132A 132J0640 4
SCREW-PAN-WP-CROS 235 235B0610 2
O RING,90MM 671 671B2590 1
GASKET,14X19.5X1.4 11009 11009-1461 4
GASKET,OIL PAN 11009A 11009-1981 1
GASKET,BREATHER BODY 11060 11060-1339 1
PLATE,BREATHER 13169 13169-1967 1
BODY-BREATHER 14070 14070-1084 1
SEPARATOR,OIL 16165 16165-1053 1
WIRE-LEAD 26011 26011-1371 1
SWITCH,OIL PRESSURE 27010 27010-1313 1
PAN-OIL 49034 49034-1122 1
TUBE-ASSY,OIL 51044 51044-1199 1
BOLT,14X28.5 92001 92001-1930 2
BOLT,6X25 92002 92002-1344 2
BOLT,6X40 92002A 92002-1345 2
NOZZLE,6X8,BLACK 92062 92062-1079 1
GASKET,12X22X2,DRAIN PLUG 92065 92065-097 1
PLUG,OIL DRAIN,12X15 92066 92066-1174 1
PLUG,OIL LINE,1/8X7 92066A 92066-1342 1
BAND,L=185 92072 92072-1195 2
CLAMP,OIL TUBE 92170 92170-1189 1
