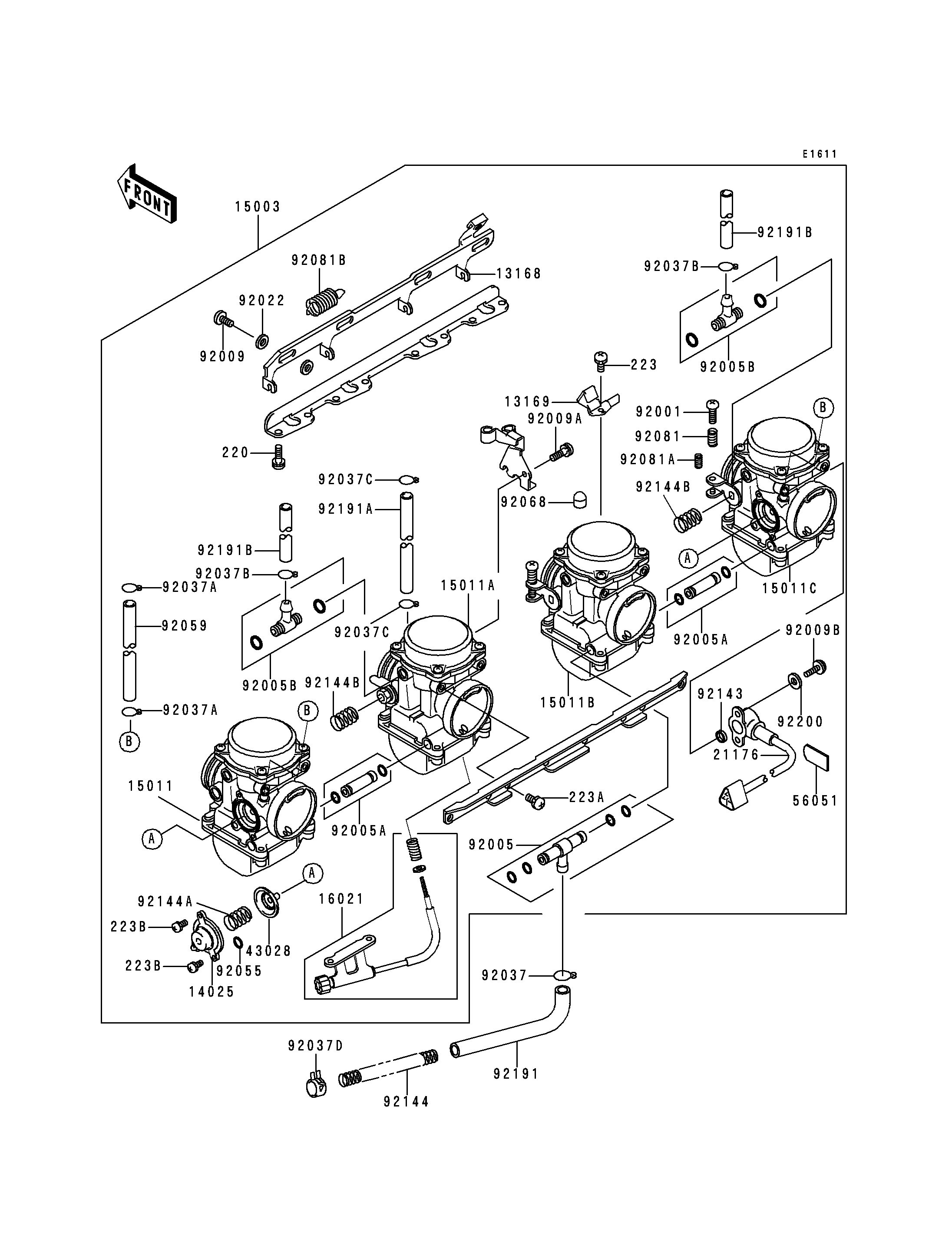

Parts Diagrams
OWNER CENTER |
![customer service agent speaking with a customer](/Content/Images/owner-header-mobile.jpg)
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
220
220
13168
13168
13169
13169
14025
14025
15003
15003
15011
15011
15011A
15011A
15011B
15011B
15011C
15011C
16021
16021
21176
21176
43028
43028
56051
56051
92001
92001
92005
92005
92005A
92005A
92005A
92005A
92005B
92005B
92005B
92005B
92009
92009
92009A
92009A
92009B
92009B
92022
92022
92037
92037
92037A
92037A
92037A
92037A
92037B
92037B
92037B
92037B
92037C
92037C
92037C
92037C
92037D
92037D
92055
92055
92059
92059
92068
92068
92081
92081
92081A
92081A
92081B
92081B
92143
92143
92144
92144
92144A
92144A
92144B
92144B
92144B
92144B
92191
92191
92191A
92191A
92191B
92191B
92191B
92191B
92200
92200
223
223
223A
223A
223B
223B
223B
223B
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
SCREW-PAN-CROS,6X16 | 220 | 220B0616 | 8 | ||
LEVER,STARTER | 13168 | 13168-1245 | 1 | ||
PLATE,STARTER CABLE | 13169 | 13169-1871 | 1 | ||
COVER,AIR CUT VALVE | 14025 | 14025-1903 | 2 | ||
CARBURETOR-ASSY | 15003 | 15003-1460 | 1 | ||
CARBURETOR,LH,OUTSIDE | 15011 | 15011-1615 | 1 | ||
CARBURETOR,LH,INSIDE | 15011A | 15011-1616 | 1 | ||
CARBURETOR,RH,INSIDE | 15011B | 15011-1617 | 1 | ||
CARBURETOR,RH,OUTSIDE | 15011C | 15011-1618 | 1 | ||
SCREW-THROTTLE STOP | 16021 | 16021-1204 | 1 | ||
SENSOR | 21176 | 21176-1073 | 1 | ||
DIAPHRAGM | 43028 | 43028-1084 | 2 | ||
MARK,K-TRIC | 56051 | 56051-1480 | 1 | ||
BOLT,THROTTLE ADJUST | 92001 | 92001-1998 | 3 | ||
FITTING | 92005 | 92005-1288 | 1 | ||
FITTING | 92005A | 92005-1310 | 2 | ||
FITTING | 92005B | 92005-1314 | 2 | ||
SCREW | 92009 | 92009-1262 | 3 | ||
SCREW,5X10 | 92009A | 92009-1365 | 1 | ||
SCREW | 92009B | 92009-1781 | 2 | ||
WASHER,6.1X11X0.8,POLYACETAL | 92022 | 92022-1199 | 6 | ||
CLAMP,HOSE | 92037 | 92037-1104 | 1 | ||
CLAMP,TUBE | 92037A | 92037-1142 | 4 | ||
CLAMP,FUEL TAP HOSE | 92037B | 92037-1185 | 2 | ||
CLAMP,TUBE | 92037C | 92037-1201 | 2 | ||
CLAMP | 92037D | 92037-2082 | 1 | ||
RING-O | 92055 | 92055-1245 | 2 | ||
TUBE,3.5X6.5X180 | 92059 | 92059-1140 | 2 | ||
PLUG,12X25 | 92068 | 92068-006 | 1 | ||
SPRING,THROTTLE ADJUST UPP | 92081 | 92081-1620 | 3 | ||
SPRING,THROTTLE ADJUST LWR | 92081A | 92081-1621 | 3 | ||
SPRING,STARTER LEVER | 92081B | 92081-1762 | 1 | ||
COLLAR | 92143 | 92143-1907 | 1 | ||
SPRING,FUEL TUBE | 92144 | 92144-1874 | 1 | ||
SPRING | 92144A | 92144-1885 | 2 | ||
SPRING,THROTTLE ADJUST CNT | 92144B | 92144-1986 | 2 | ||
TUBE,FUEL | 92191 | 92191-1007 | 1 | ||
TUBE | 92191A | 92191-1017 | 1 | ||
TUBE,AIR VENT | 92191B | 92191-1118 | 2 | ||
WASHER | 92200 | 92200-1369 | 2 | ||
SCREW-PAN-WS-CROS | 223 | 223C0420 | 1 | ||
SCREW-PAN-WS-CROS | 223A | 223C0510 | 8 | ||
SCREW-PAN-WS-CROS | 223B | 223D0408 | 4 |
