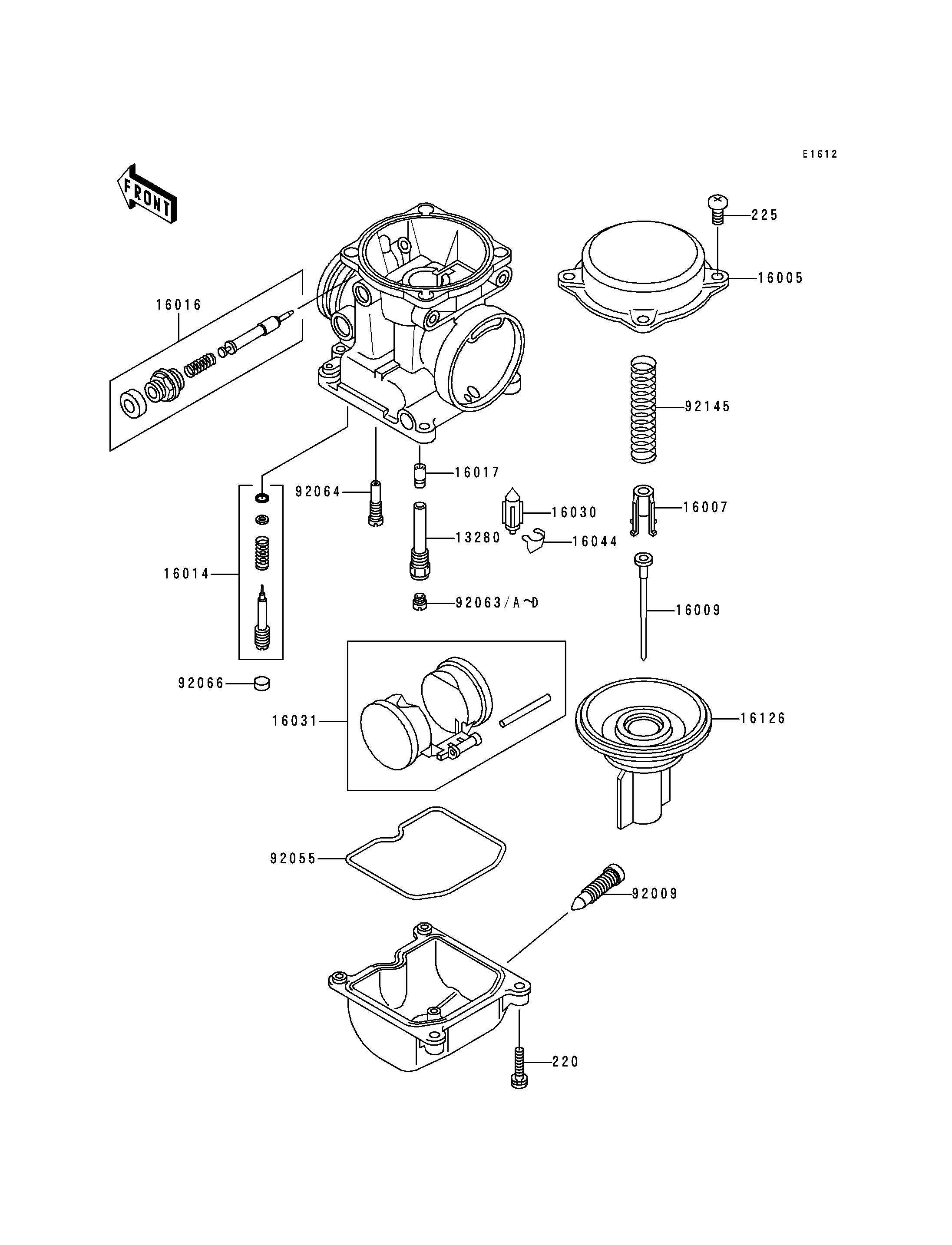

2000 ZRX1100 - Carburetor Parts

DOWNLOAD PDF
SELECT A NEW PART
220
225
13280
16005
16007
16009
16014
16016
16017
16030
16031
16044
16126
92009
92055
92063
92063A
92063B
92063C
92063D
92064
92066
92145
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREW-PAN-CROS 220 220D0414 16
SCREW-PAN-WSP-CROS 225 225C0418 15
HOLDER,NEEDLE JET 13280 13280-1054 4
TOP-CHAMBER,MIXING 16005 16005-1054 4
SEAT-SPRING,VALVE 16007 16007-1117 4
NEEDLE-JET,N3RK 16009 16009-1944 4
SCREW-PILOT AIR 16014 16014-1080 4
PLUNGER,STARTER 16016 16016-1090 4
JET-NEEDLE 16017 16017-1265 4
VALVE-FLOAT 16030 16030-1057 4
FLOAT 16031 16031-1077 4
CLAMP,FLOAT VALVE 16044 16044-007 4
VALVE,VACUUM 16126 16126-1338 4
SCREW,DRAIN,M6X0.75 92009 92009-1551 4
RING-O,FLOAT CHAMBER 92055 92055-1222 4
JET-MAIN,#95 92063 92063-1001 4
JET-MAIN,#90 92063A 92063-1003 4 (RACING USE ONLY)
JET-MAIN,#92 92063B 92063-1004 4 (RACING USE ONLY)
JET-MAIN,#98 92063C 92063-1005 4 (RACING USE ONLY)
JET-MAIN,#100 92063D 92063-1008 4 (RACING USE ONLY)
JET-PILOT,#35 92064 92064-1101 4
PLUG,PILOT AIR SCREW,6.9X2 92066 92066-1051 4
SPRING,VACUUM VALVE 92145 92145-1064 4
