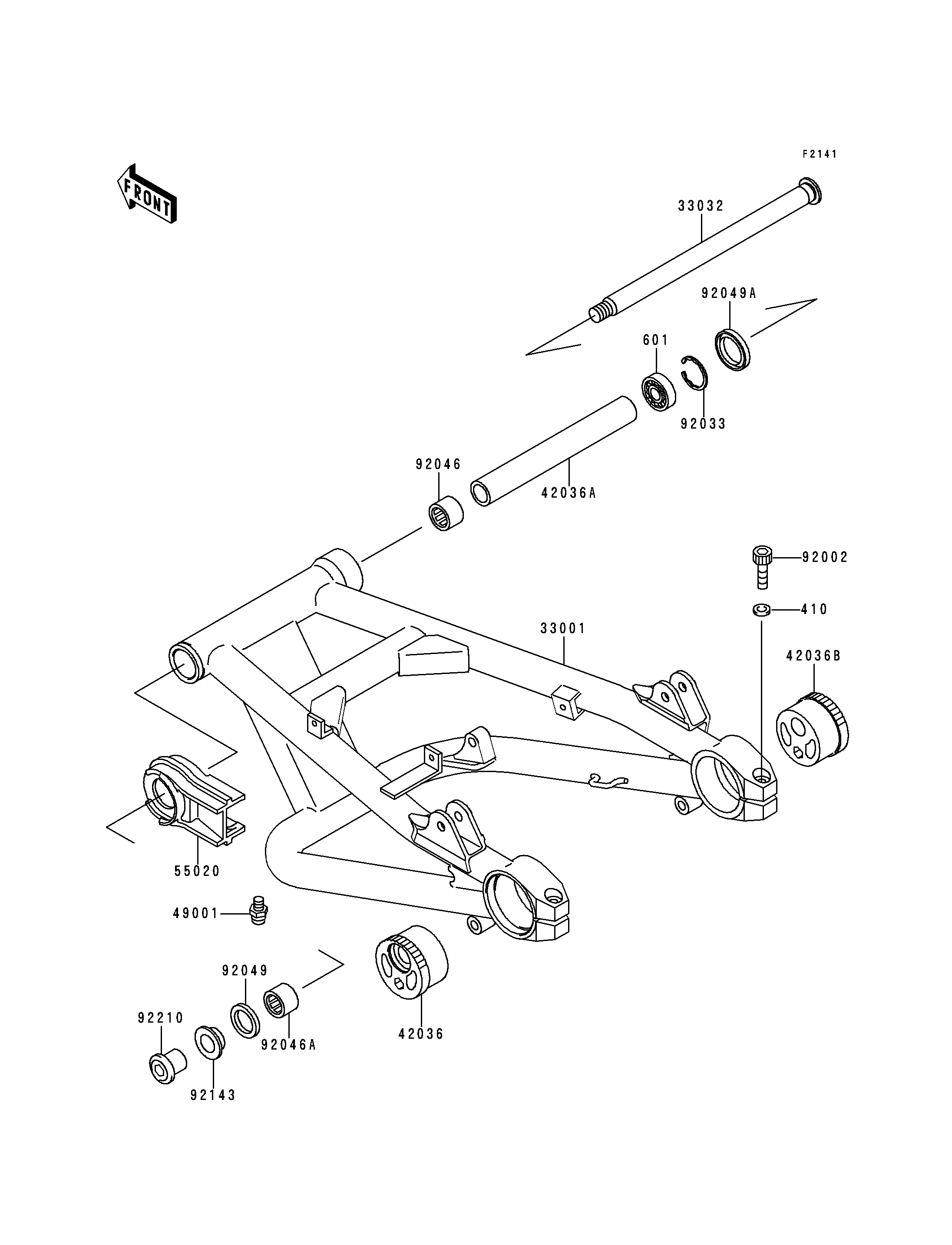

Parts Diagrams |
410
601
33001
33032
42036
42036A
42036B
49001
55020
92002
92033
92046
92046A
92049
92049A
92143
92210
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| W-PLAIN-S | 410 | 410E1000 | 2 | ||
| BEARING-BALL,#6004 | 601 | 601A6004 | 1 | ||
| ARM-COMP-SWING | 33001 | 33001-1522 | 1 | ||
| SHAFT-SWING ARM | 33032 | 33032-1182 | 1 | ||
| SLEEVE,REAR AXLE,LH,A.GOLD | 42036 | 42036-1153-ES | 1 | ||
| SLEEVE,SWING ARM,L=213.5 | 42036A | 42036-1259 | 1 | ||
| SLEEVE,REAR AXLE,RH,A.GOLD | 42036B | 42036-1265-ES | 1 | ||
| NIPPLE-GREASE | 49001 | 49001-1051 | 1 | ||
| GUARD,CHAIN | 55020 | 55020-1614 | 1 | ||
| BOLT,SOCKET,10X40 | 92002 | 92002-1452 | 2 | ||
| RING-SNAP,42MM | 92033 | 92033-1041 | 1 | ||
| BEARING-NEEDLE,BM2817 | 92046 | 92046-1111 | 1 | ||
| BEARING-NEEDLE,BM2824 | 92046A | 92046-1202 | 1 | ||
| SEAL-OIL | 92049 | 92049-1181 | 1 | ||
| SEAL-OIL,MHSA25 42 6 | 92049A | 92049-1314 | 1 | ||
| COLLAR,SWING ARM,L=12.5 | 92143 | 92143-1227 | 1 | ||
| NUT,PIVOT,16MM | 92210 | 92210-1077 | 1 |
