Parts Diagrams

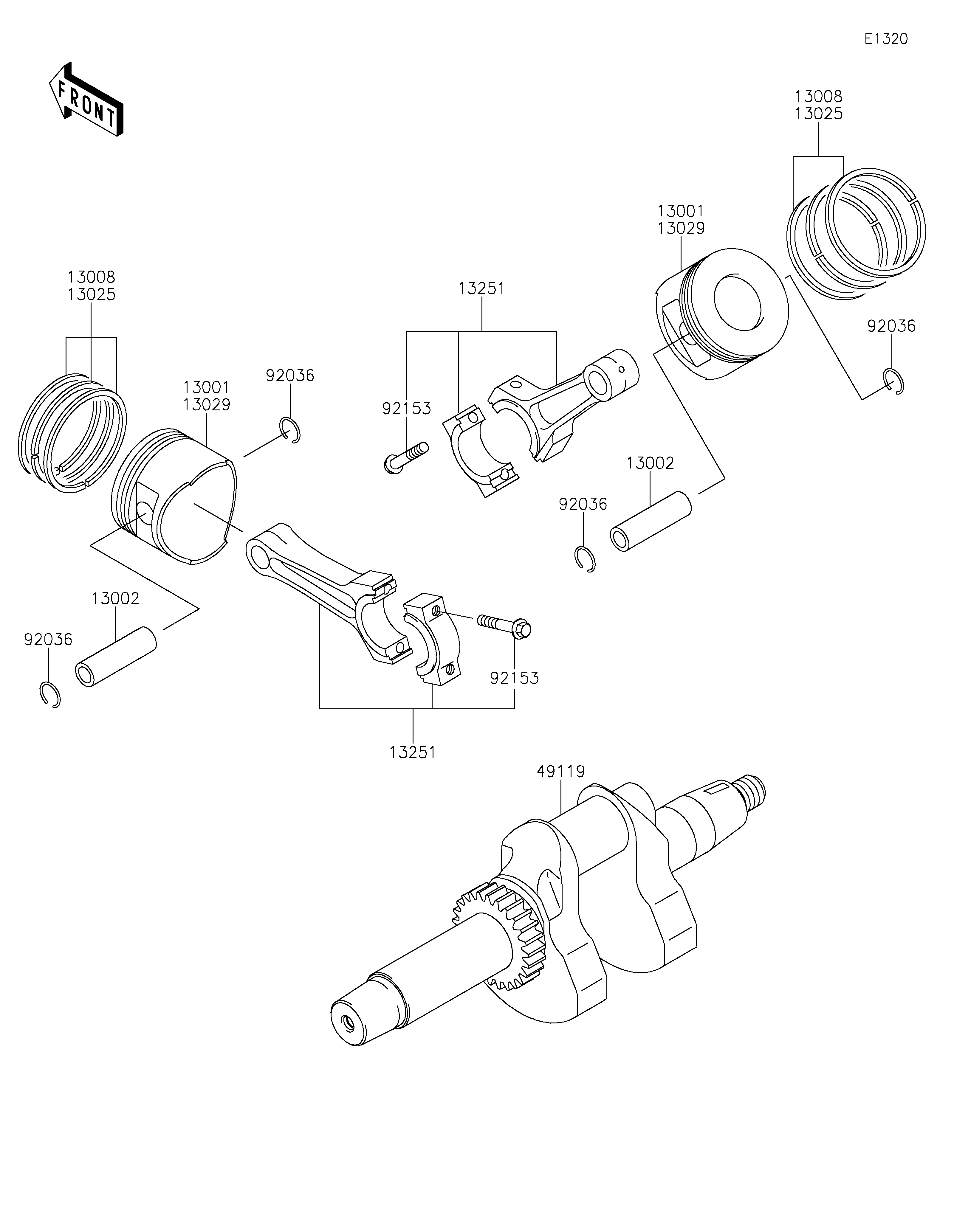

2021 MULE™ 4010 TRANS4x4® - Crankshaft/Piston(s)

SELECT A NEW PART

DOWNLOAD PDF SELECT A NEW PART

13001

13001

13002

13002

13008

13008

13025

13025

13029

13029

13251

13251

49119

92036

92036

92036

92036

92153

92153

Part Item Information
ITEM NAME	REF #	PART NUMBER	QUANTITY	DESTINATION	REMARKS
PISTON-ENGINE,STD	13001	13001-2210	2
PIN-PISTON	13002	13002-1013	2
RING-SET-PISTON,STD	13008	13008-6025	2
RING-SET-PISTON L,0.50	13025	13025-6008	AR
PISTON-ENGINE L,0.50	13029	13029-0033	AR
ROD-ASSY-CONNECTING	13251	13251-0737	2
CRANKSHAFT-ASSY	49119	49119-0015	1
RING-SNAP,PISTON PIN	92036	92036-021	4
BOLT,7X35.2	92153	92153-2054	4
