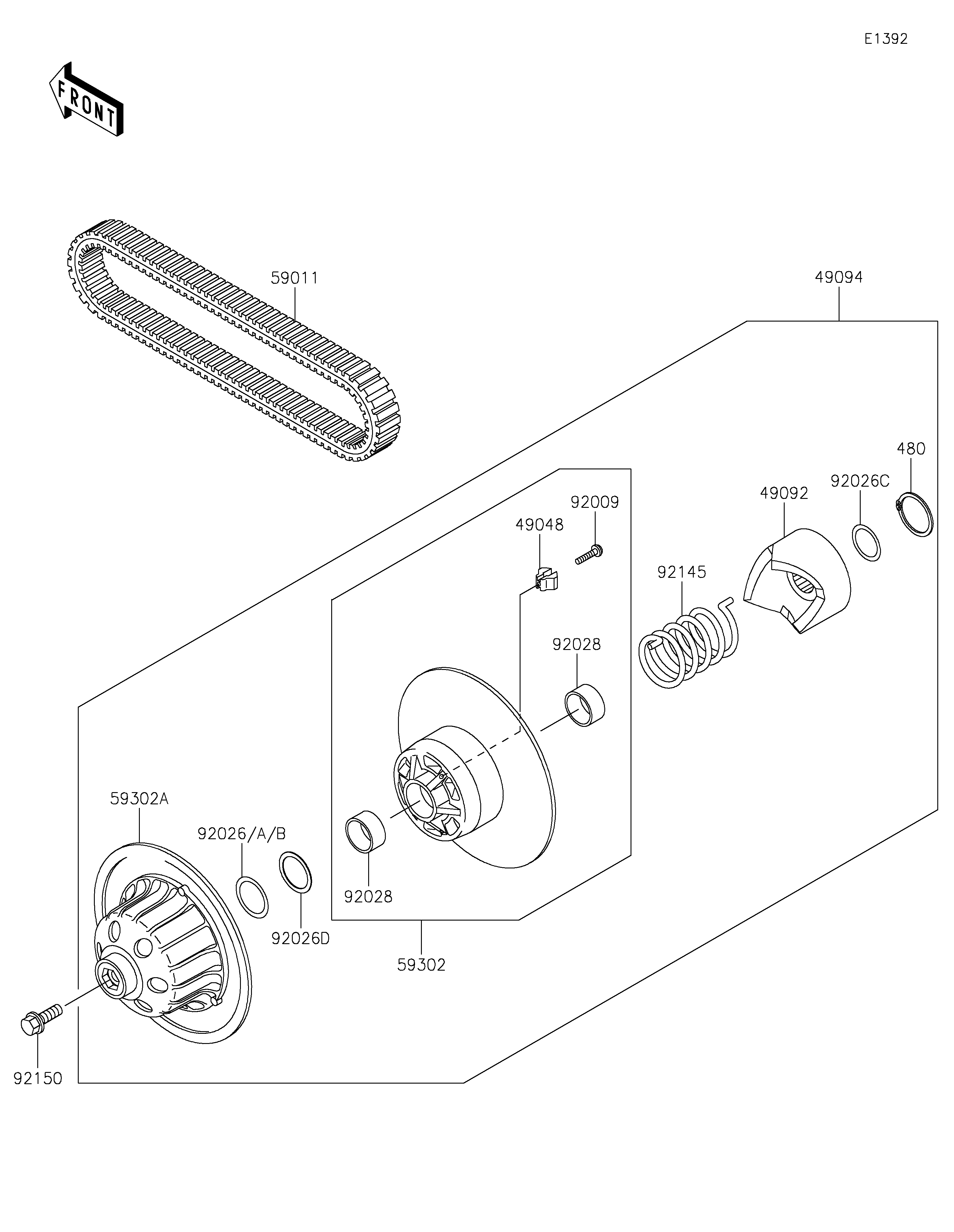

2021 MULE™ 4010 TRANS4x4® - Driven Converter/Drive Belt
49048
49092
49094
59011
59302
59302A
92009
92026
92026A
92026B
92026C
92026D
92028
92028
92145
92150
480
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SHOE | 49048 | 49048-1060 | 3 | ||
| RAMP | 49092 | 49092-1068 | 1 | ||
| CONVERTER-ASSY-DRIVEN | 49094 | 49094-0045 | 1 | ||
| BELT,CONVERTER | 59011 | 59011-1077 | 1 | ||
| SHEAVE-COMP,MOVABLE | 59302 | 59302-0031 | 1 | ||
| SHEAVE-COMP | 59302A | 59302-0032 | 1 | ||
| SCREW,SHOE | 92009 | 92009-1849 | 3 | ||
| SPACER,39X50X0.50 | 92026 | 92026-1507 | AR | ||
| SPACER,39X50X0.60 | 92026A | 92026-1508 | AR | ||
| SPACER,39X50X0.80 | 92026B | 92026-1510 | AR | ||
| SPACER,34X44X0.80 | 92026C | 92026-1521 | 1 | ||
| SPACER,39X49.5X1.0 | 92026D | 92026-1603 | 1 | ||
| BUSHING | 92028 | 92028-1864 | 2 | ||
| SPRING | 92145 | 92145-1404 | 1 | ||
| BOLT,12X35 | 92150 | 92150-1009 | 1 | ||
| CIRCLIP-TYPE-C,34MM | 480 | 480J3400 | 1 |
| SHOE | |
| REF # | 49048 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| RAMP | |
| REF # | 49092 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CONVERTER-ASSY-DRIVEN | |
| REF # | 49094 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BELT,CONVERTER | |
| REF # | 59011 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHEAVE-COMP,MOVABLE | |
| REF # | 59302 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHEAVE-COMP | |
| REF # | 59302A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,SHOE | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| SPACER,39X50X0.50 | |
| REF # | 92026 |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | |
| SPACER,39X50X0.60 | |
| REF # | 92026A |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | |
| SPACER,39X50X0.80 | |
| REF # | 92026B |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | |
| SPACER,34X44X0.80 | |
| REF # | 92026C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPACER,39X49.5X1.0 | |
| REF # | 92026D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BUSHING | |
| REF # | 92028 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SPRING | |
| REF # | 92145 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,12X35 | |
| REF # | 92150 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CIRCLIP-TYPE-C,34MM | |
| REF # | 480 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
