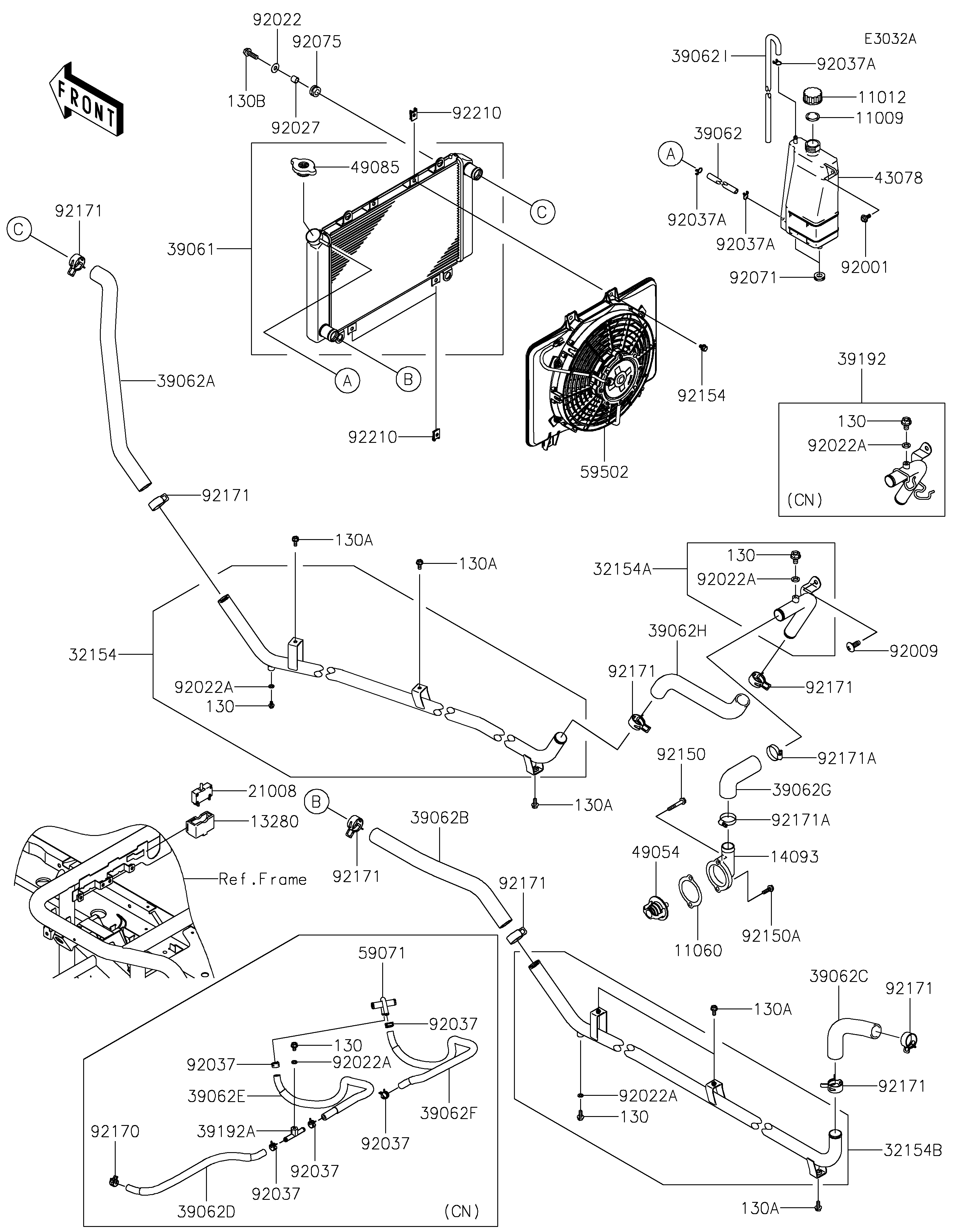

2021 MULE™ 4010 TRANS4x4® - Radiator (JK1AFCR1 MB541102 - )
11009
11009
11012
11012
11060
11060
13280
13280
14093
14093
21008
21008
32154
32154
32154B
32154B
39061
39061
39062
39062
39062A
39062A
39062B
39062B
39062C
39062C
39062G
39062G
39062H
39062H
39062I
39062I
43078
43078
49054
49054
49085
49085
59502
59502
92001
92001
92009
92009
92022
92022
92027
92027
92037A
92037A
92037A
92037A
92037A
92037A
92071
92071
92075
92075
92150
92150
92150A
92150A
92154
92154
92171
92171
92171
92171
92171
92171
92171
92171
92171
92171
92171
92171
92171
92171
92171
92171
92171A
92171A
92171A
92171A
92210
92210
92210
92210
130A
130A
130A
130A
130A
130A
130A
130A
130A
130A
130B
130B
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,RESERVOIR TANK CAP | 11009 | 11009-1145 | 1 | ||
| CAP | 11012 | 11012-1084 | 1 | ||
| GASKET,THERMOSTAT COVER | 11060 | 11060-2084 | 1 | ||
| HOLDER,BREAKER | 13280 | 13280-0082 | 1 | ||
| COVER,THERMOSTAT | 14093 | 14093-0061 | 1 | ||
| BREAKER,FAN MOTOR | 21008 | 21008-0014 | 1 | ||
| PIPE,RH FR | 32154 | 32154-7503 | 1 | ||
| PIPE,LH | 32154B | 32154-7507 | 1 | ||
| RADIATOR-ASSY | 39061 | 39061-0811 | 1 | ||
| HOSE-COOLING,5.5X10.5X650 | 39062 | 39062-0266 | 1 | ||
| HOSE-COOLING,PIPE-RAD. | 39062A | 39062-0282 | 1 | ||
| HOSE-COOLING,RAD.-LH PIPE | 39062B | 39062-0283 | 1 | ||
| HOSE-COOLING,PIPE-E/G | 39062C | 39062-0286 | 1 | ||
| HOSE-COOLING | 39062G | 39062-1832 | 1 | ||
| HOSE-COOLING | 39062H | 39062-7502 | 1 | ||
| HOSE-COOLING,DRAIN | 39062I | 39062-7507 | 1 | ||
| RESERVOIR | 43078 | 43078-0062 | 1 | ||
| THERMOSTAT | 49054 | 49054-2056 | 1 | ||
| CAP-ASSY-PRESSURE | 49085 | 49085-0017 | 1 | ||
| FAN-ASSY | 59502 | 59502-0630 | 1 | ||
| BOLT,W/P,6X16 | 92001 | 92001-1860 | 1 | ||
| SCREW,TAPPING,6X16 | 92009 | 92009-1166 | 1 | ||
| WASHER,8.5X20X1.6,BLACK | 92022 | 92022-1317 | 4 | ||
| COLLAR,8.8X12X10.7 | 92027 | 92027-102 | 4 | ||
| CLAMP,TUBE | 92037A | 92037-147 | 3 | ||
| GROMMET | 92071 | 92071-1115 | 2 | ||
| DAMPER | 92075 | 92075-294 | 4 | ||
| BOLT,6X40 | 92150 | 92150-2230 | 1 | ||
| BOLT,6X20 | 92150A | 92150-2231 | 1 | ||
| BOLT,6X14 | 92154 | 92154-4107 | 4 | ||
| CLAMP,COOLING HOSE | 92171 | 92171-0060 | 8 | ||
| CLAMP | 92171A | 92171-0179 | 2 | ||
| NUT,6MM | 92210 | 92210-1791 | 4 | ||
| BOLT-FLANGED,6X14 | 130A | 130BA0614 | 6 | ||
| BOLT-FLANGED,8X25 | 130B | 130BA0825 | 4 |
| GASKET,RESERVOIR TANK CAP | |
| REF # | 11009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP | |
| REF # | 11012 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,THERMOSTAT COVER | |
| REF # | 11060 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOLDER,BREAKER | |
| REF # | 13280 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,THERMOSTAT | |
| REF # | 14093 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BREAKER,FAN MOTOR | |
| REF # | 21008 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIPE,RH FR | |
| REF # | 32154 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIPE,LH | |
| REF # | 32154B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RADIATOR-ASSY | |
| REF # | 39061 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOSE-COOLING,5.5X10.5X650 | |
| REF # | 39062 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOSE-COOLING,PIPE-RAD. | |
| REF # | 39062A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOSE-COOLING,RAD.-LH PIPE | |
| REF # | 39062B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOSE-COOLING,PIPE-E/G | |
| REF # | 39062C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOSE-COOLING | |
| REF # | 39062G |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOSE-COOLING | |
| REF # | 39062H |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOSE-COOLING,DRAIN | |
| REF # | 39062I |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RESERVOIR | |
| REF # | 43078 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| THERMOSTAT | |
| REF # | 49054 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP-ASSY-PRESSURE | |
| REF # | 49085 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FAN-ASSY | |
| REF # | 59502 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,W/P,6X16 | |
| REF # | 92001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,TAPPING,6X16 | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,8.5X20X1.6,BLACK | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| COLLAR,8.8X12X10.7 | |
| REF # | 92027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| CLAMP,TUBE | |
| REF # | 92037A |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| GROMMET | |
| REF # | 92071 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X40 | |
| REF # | 92150 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X20 | |
| REF # | 92150A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X14 | |
| REF # | 92154 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| CLAMP,COOLING HOSE | |
| REF # | 92171 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92171A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,6MM | |
| REF # | 92210 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,6X14 | |
| REF # | 130A |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,8X25 | |
| REF # | 130B |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
