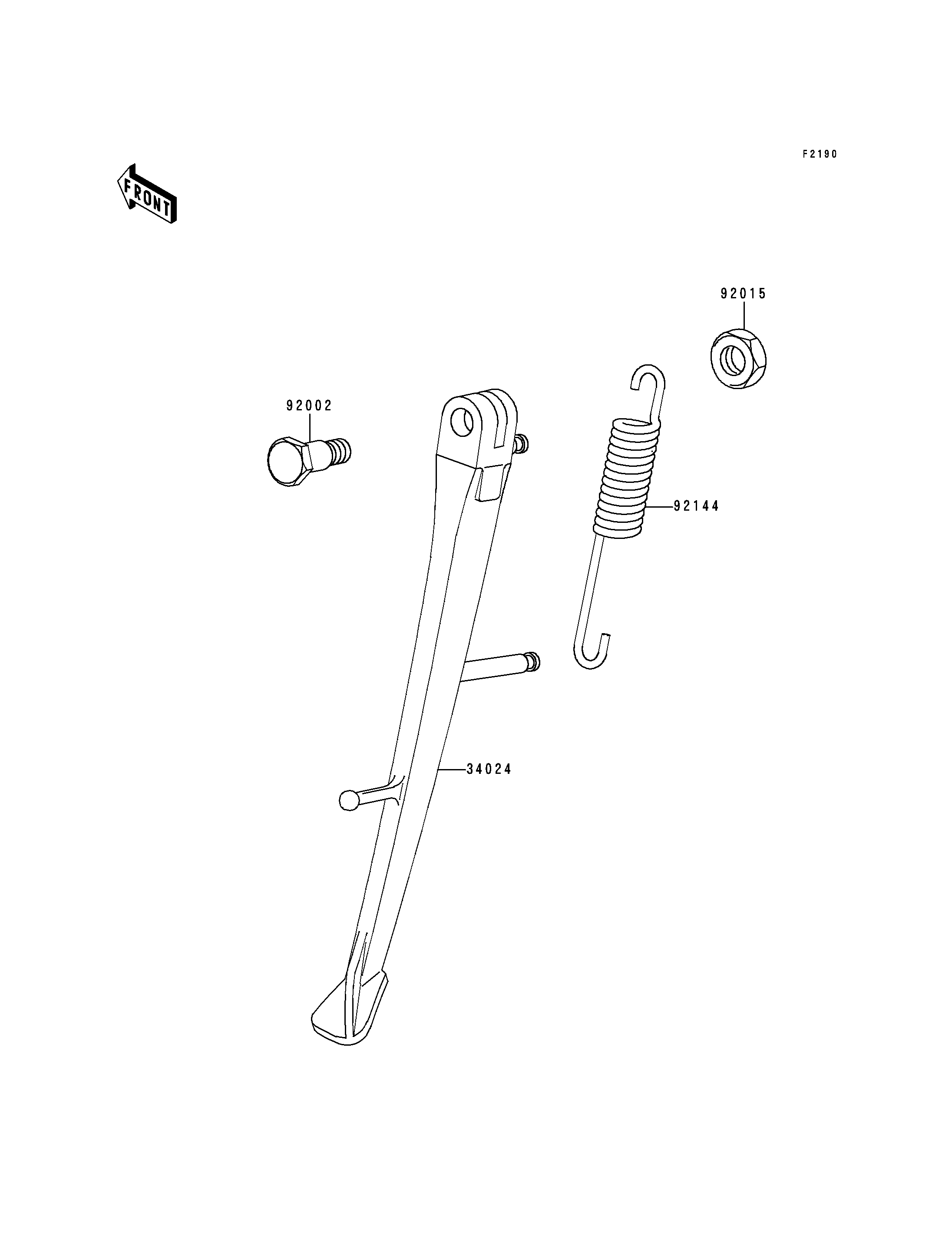

34024
92002
92015
92144
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
STAND-SIDE 34024 34024-1335 1
BOLT,SIDE STAND 92002 92002-1813 1
NUT,LOCK,10MM,BLACK 92015 92015-1188 1
SPRING,SIDE STAND 92144 92144-1927 1
