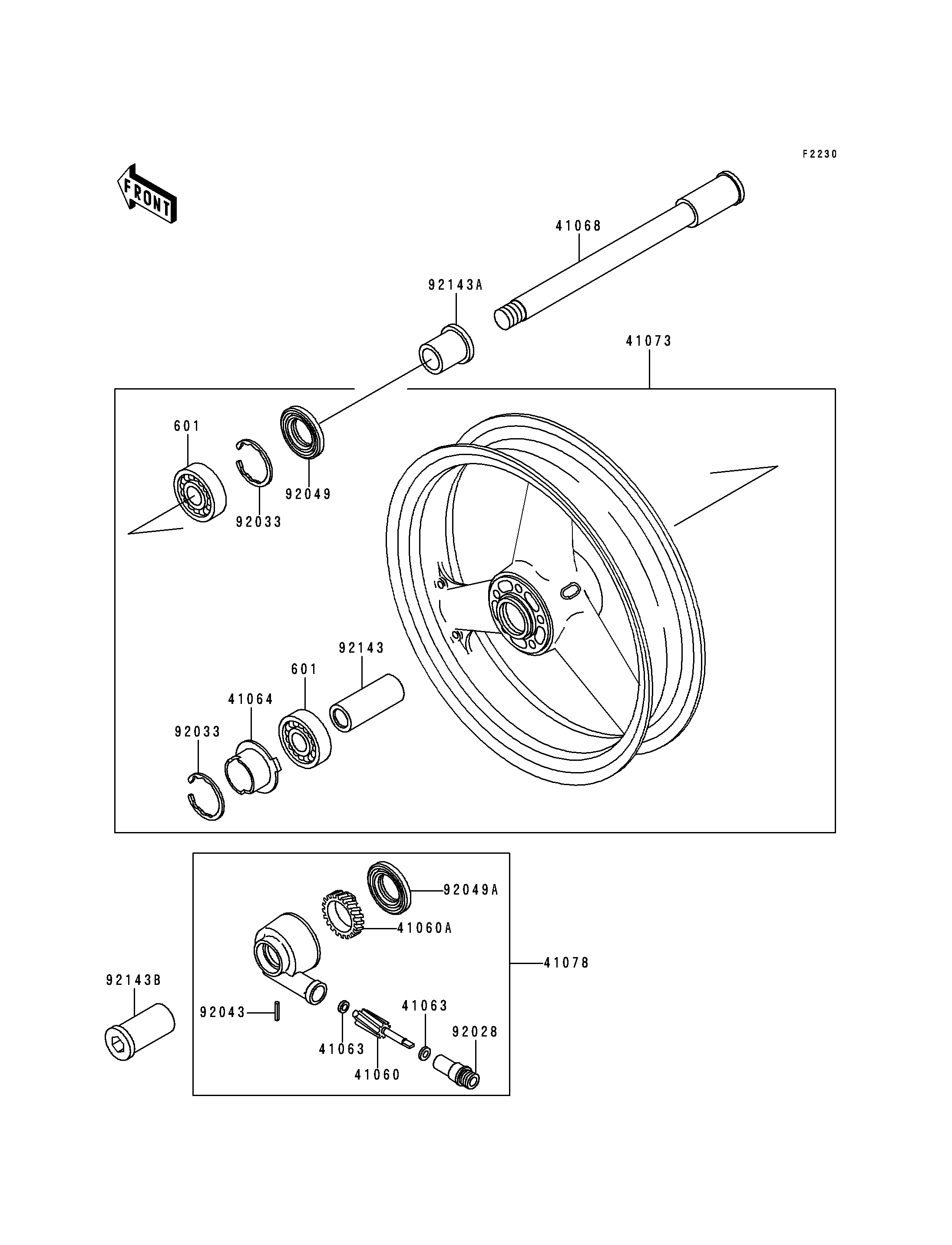

2000 ZRX1100 - Front Wheel

DOWNLOAD PDF
SELECT A NEW PART
601
601
41060
41060A
41063
41063
41064
41068
41073
41078
92028
92033
92033
92043
92049
92049A
92143
92143A
92143B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BEARING-BALL,#6005UU 601 601B6005UU 2
GEAR-METER SCREW,9T 41060 41060-1140 1
GEAR-METER SCREW,24T 41060A 41060-1141 1
WASHER,5.1X9X0.4 41063 41063-001 2
RECEIVER-SPEEDOMETER 41064 41064-1055 1
AXLE,FR 41068 41068-1327 1
WHEEL-ASSY,FR,BLACK 41073 41073-1618-R2 1
CASE-ASSY-METER GEAR 41078 41078-1082 1
BUSHING,METER GEAR CASE 92028 92028-1634 1
RING-SNAP,47MM 92033 92033-1042 2
PIN,SPRING,3X18 92043 92043-1454 1
SEAL-OIL,BJN 32 47 5 92049 92049-1377 1
SEAL-OIL,BJN-C2 35 52 5 92049A 92049-1378 1
COLLAR,FR HUB,L=94 92143 92143-1476 1
COLLAR,FR AXLE,RH,L=17.5 92143A 92143-1477 1
COLLAR,FR AXLE,LH,L=44.5 92143B 92143-1478 1
