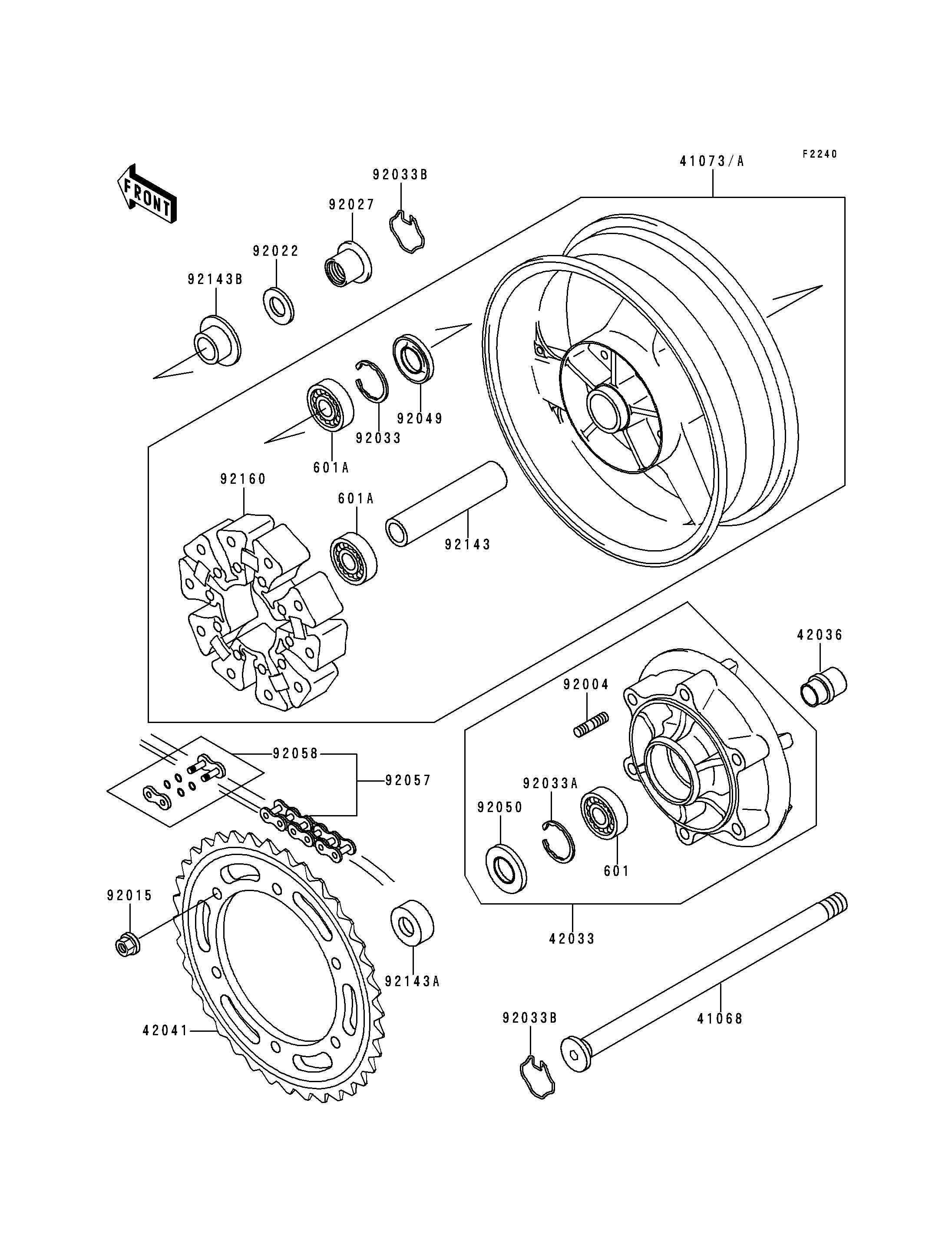

2000 ZRX1100 - Rear Wheel/Chain

DOWNLOAD PDF
SELECT A NEW PART
601
601A
601A
41068
41073A
42033
42036
42041
92004
92015
92022
92027
92033
92033A
92033B
92033B
92049
92050
92057
92058
92143
92143A
92143B
92160
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BEARING-BALL,#6206UUC3 601 601B6206UU 1
BEARING-BALL,#6304UUC3 601A 601B6304UU 2
AXLE,RR 41068 41068-1354 1
WHEEL-ASSY,RR,BLACK 41073A 41073-1645-R2 1
COUPLING-ASSY,RR HUB,C.GRAY 42033 42033-1160-EZ 1
SLEEVE,RR AXLE,L=45 42036 42036-1302 1
SPROCKET-HUB,45T 42041 42041-1283 1
STUD,10X24 92004 92004-1146 6
NUT,10MM 92015 92015-1720 6
WASHER,23X32X2.3 92022 92022-1618 1
COLLAR,RR AXLE,L=28 92027 92027-1810 1
RING-SNAP,52MM 92033 92033-1043 1
RING-SNAP,62MM 92033A 92033-1044 1
RING-SNAP,RR AXLE 92033B 92033-1156 2
SEAL-OIL,28X52X5 92049 92049-1061 1
SEAL-OIL,AJN40627 92050 92050-027 1
CHAIN,DRIVE,DID50ZV2X110L 92057 92057-1469 1
JOINT-CHAIN,DRIVE 92058 92058-1077 1
COLLAR,REAR AXLE,L=116 92143 92143-1390 1
COLLAR,RR AXLE,LH,L=17 92143A 92143-1914 1
COLLAR,RR AXLE,RH,L=18 92143B 92143-1915 1
DAMPER,SHOCK,RR HUB 92160 92160-1911 1
