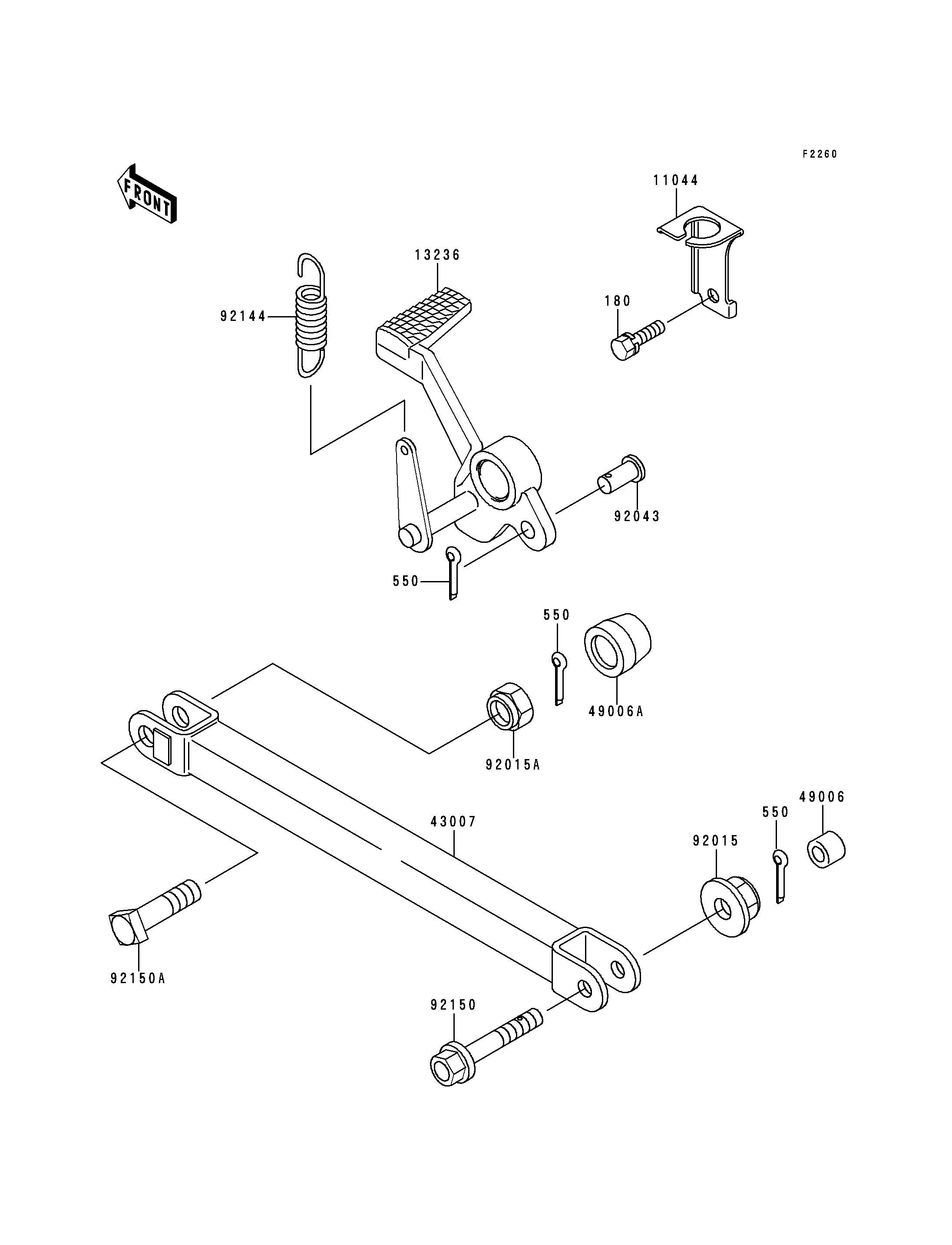

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-UPSET-WS 180 180H0614 1
PIN-COTTER,2.0X15 550 550D2015 3
BRACKET,RR BRAKE SWITCH 11044 11044-1107 1
LEVER-COMP,PEDAL 13236 13236-1293 1
ROD-TORQUE 43007 43007-1184 1
BOOT 49006 49006-1218 1
BOOT 49006A 49006-1275 1
NUT,8MM 92015 92015-1432 1
NUT,10MM 92015A 92015-1883 1
PIN,8MM 92043 92043-1303 1
SPRING,EXHAUST CONNECTING 92144 92144-1470 1
BOLT,FLANGED,8X47 92150 92150-1539 1
BOLT,10X39.5 92150A 92150-1598 1
