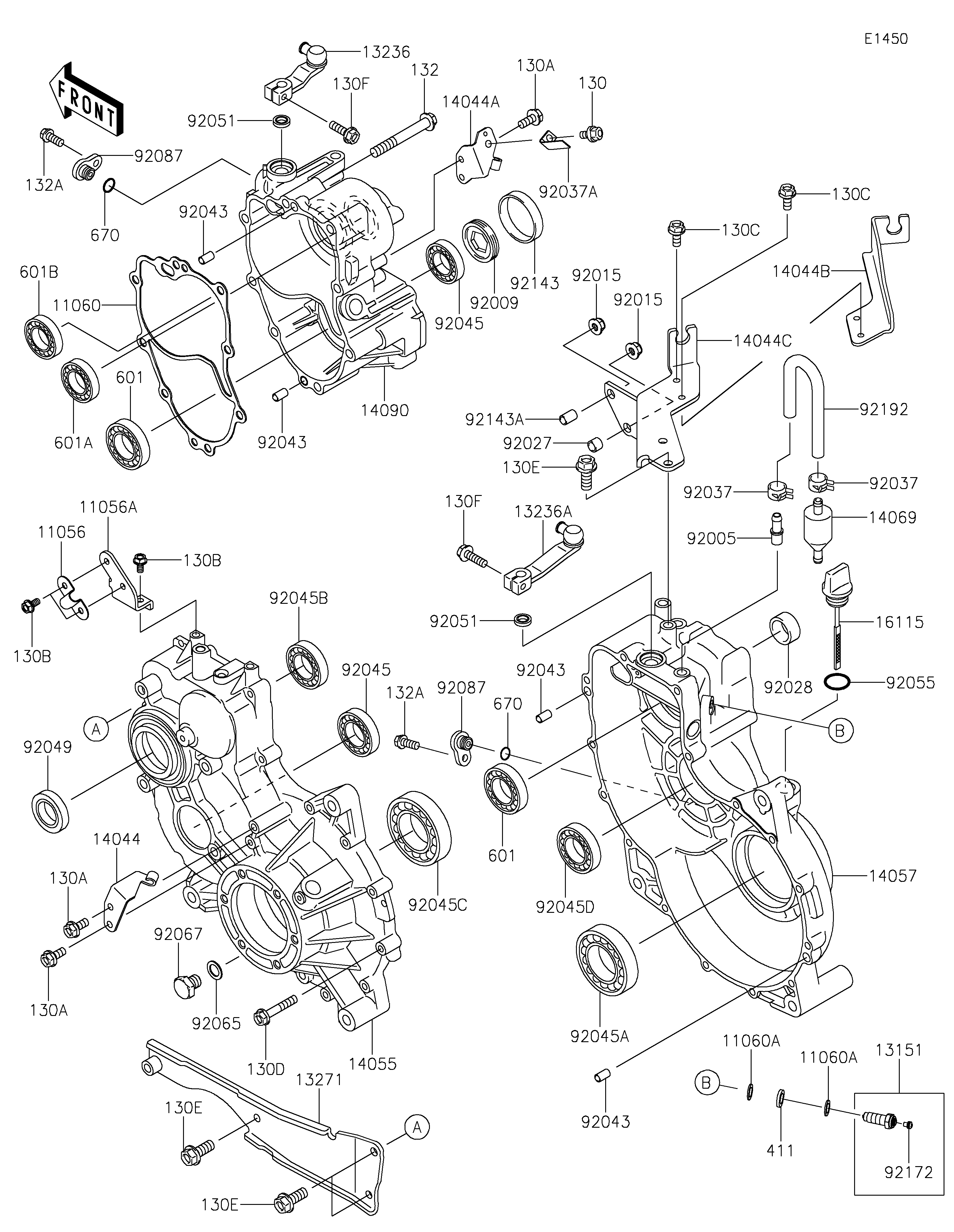

2021 MULE™ 4010 TRANS4x4® CAMO - Gear Box

DOWNLOAD PDF
SELECT A NEW PART
11056
11056
11056A
11056A
11060
11060
11060A
11060A
11060A
11060A
13151
13151
13236
13236
13236A
13236A
13271
13271
14044
14044
14044A
14044A
14044B
14044B
14044C
14044C
14055
14055
14057
14057
14069
14069
14090
14090
16115
16115
92005
92005
92009
92009
92015
92015
92015
92015
92027
92027
92028
92028
92037
92037
92037
92037
92037A
92037A
92043
92043
92043
92043
92043
92043
92043
92043
92045
92045
92045
92045
92045A
92045A
92045B
92045B
92045C
92045C
92045D
92045D
92049
92049
92051
92051
92051
92051
92055
92055
92065
92065
92067
92067
92087
92087
92087
92087
92143
92143
92143A
92143A
92172
92172
92192
92192
130
130
130A
130A
130A
130A
130A
130A
130B
130B
130B
130B
130C
130C
130C
130C
130D
130D
130E
130E
130E
130E
130E
130E
130F
130F
130F
130F
132
132
132A
132A
132A
132A
411
411
601
601
601
601
601A
601A
601B
601B
670
670
670
670
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,OIL PIPE 11056 11056-4139 1
BRACKET,OIL PIPE 11056A 11056-4140 1
GASKET,GEAR CASE COVER 11060 11060-1310 1
GASKET 11060A 11060-1966 2
SWITCH-COMP 13151 13151-1093 1
LEVER-COMP 13236 13236-1363 1
LEVER-COMP 13236A 13236-1372 1
PLATE 13271 13271-1604 1
HOLDER-CABLE 14044 14044-0003 1
HOLDER-CABLE 14044A 14044-0004 1
HOLDER-CABLE,HI/LOW 14044B 14044-1075 1
HOLDER-CABLE 14044C 14044-1098 1
CASE-GEAR,LH 14055 14055-0035 1
CASE-COMP-GEAR,RH 14057 14057-0011 1
BREATHER 14069 14069-1051 1
COVER,GEAR CASE,HI/LOW 14090 14090-1238 1
CAP-OIL FILLER 16115 16115-1060 1
FITTING,BREATHER 92005 92005-1127 1
SCREW,55MM 92009 92009-1290 1
NUT,8MM 92015 92015-1432 2
COLLAR,8.8X12X9 92027 92027-1568 1
BUSHING,23X30X13 92028 92028-132 1
CLAMP,TUBE 92037 92037-1505 2
CLAMP 92037A 92037-1680 1
PIN,6.2X8X14 92043 92043-1263 4
BEARING-BALL,TMB304CCM 92045 92045-1142 2
BEARING-BALL,6010CM 92045A 92045-1162 1
BEARING-BALL,62/28 92045B 92045-1207 1
BEARING-BALL,6210CM 92045C 92045-1213 1
BEARING-BALL,TMB205JR2 92045D 92045-1285 1
SEAL-OIL,TC28X47X7 92049 92049-1297 1
SEAL-OIL,TB13225.5 92051 92051-005 2
RING-O,20X3 92055 92055-2185 1
GASKET,10.5X16X1 92065 92065-058 1
PLUG,DRAIN,10X12 92067 92067-001 1
BUSHING-METER GEAR 92087 92087-1058 2
COLLAR,66X70X11 92143 92143-1120 1
COLLAR,8.5X15X9 92143A 92143-1642 1
SCREW,4X6 92172 92172-0717 1
TUBE 92192 92192-1643 1
BOLT-FLANGED,6X10 130 130AA0610 1
BOLT-FLANGED,6X14 130A 130AA0614 4
BOLT-FLANGED,6X12 130B 130BA0612 3
BOLT-FLANGED,6X14 130C 130BA0614 2
BOLT-FLANGED,6X35 130D 130BA0635 15
BOLT-FLANGED,8X20 130E 130BA0820 5
BOLT-FLANGED,6X20 130F 130CA0620 2
BOLT-FLANGED-SMALL,8X60 132 132BA0860 8
BOLT-FLANGED-SMALL,6X14 132A 132BB0614 2
WASHER-PLAIN,10MM 411 411AA1000 1
BEARING-BALL,#6007C3 601 601B6007 2
BEARING-BALL,#6303C3 601A 601B6303 1
BEARING-BALL 601B 601B6303U 1
O RING,10MM 670 670D1510 2
